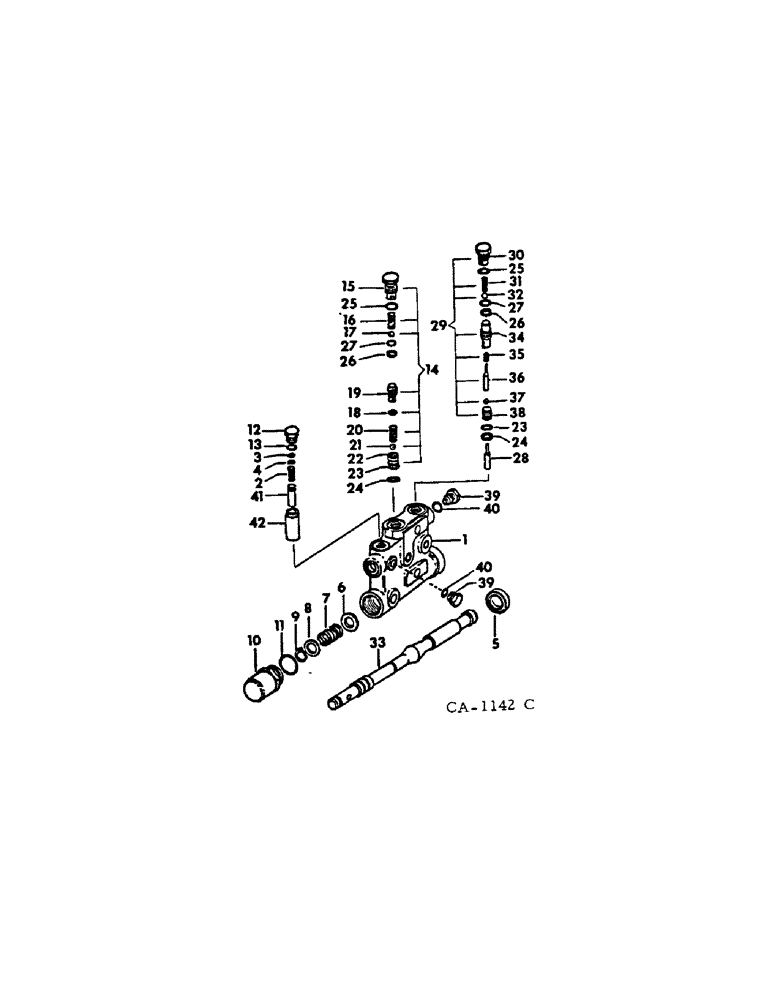

Запчасти Case IH 2500 (07-40[1]) - DRIVE TRAIN, DRIVE CONTROL VALVE (04) - Drive Train

401852R92

VALVE

ASSY, drive control

1шт.

1

BODY ASSY, drive control, not serviced separately, order valve assy 401852R92

1шт.

2

400454R1

SPRING

valve, drive control

1шт.

3

875777R1

SNAP RING,#25, Ext

Ring, Snap, , drive control valve #25, Ext

1шт.

4

401291R1

SPRING WASHER

anti-coast valve pin, drive control

1шт.

5

381232R91

OIL SEAL

oil, drive control valve

1шт.

6

398693R1

WASHER

. drive control valve

1шт.

7

398733R1

SPRING

drive control valve centering

1шт.

8

398694R1

WASHER

drive control valve

1шт.

9

398700R1

SNAP RING,#56, .524", Ext

RING, retaining, drive control valve

1шт.

10

398692R1

PLUG

drive control valve

1шт.

11

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube, drive control valve

1шт.

12

533567R1

PLUG

9/16-18 str-thd o-ring boss, drive control valve

1шт.

13

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, drive control valve

1шт.

14

404497R3

VALVE

ASSY, capsule -A-, drive control valve

1шт.

15

BODY, check valve seat, not serviced separately, order assy 404497R3, drive control valve

1шт.

16

SPRING, upper ball check, not serviced separately, order valve assy 404497R3, drive control

1шт.

17

BALL, 5/16 dia., not serviced separately, order valve assy 404497R3, drive control

1шт.

18

WASHER, 1/8 x 1/4 x .017, not serviced separately, order valve assy 404497R3 drive control

1шт.

19

BODY, check valve seat, not service separately, order valve assy 404497R3drive control

1шт.

20

SPRING, low pressure relief, not serviced separately, order valve assy 404497R3, drive control

1шт.

21

BALL, 7/32 dia., not serviced separately, order valve assy 404497R3, drive control

1шт.

22

SEAT, relief valve, not serviced separately, order valve assy 404497R3, drive control

1шт.

23

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 x 1/16, drive control

2шт.

24

398699R1

BACK-UP RING

RING, back-up, drive control, valve

2шт.

25

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube, drive control valve

2шт.

26

383004R1

BACK-UP RING,Split, 13.16mm ID x 15.9mm OD x 1.32mm Thk

RING, back-up, drive control valve

2шт.

27

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16, drive control valve

2шт.

28

398696R1

PIN

lower valve lift, drive control

1шт.

29

404496R3

VALVE

ASSY, capsule -A-, drive control

1шт.

30

BODY, check valve, not serviced separately, order valve assy 404496R3, drive control

1шт.

31

SPRING, check valve, not serviced separately, order valve assy 404496R3, drive control

1шт.

32

BALL, 5/16 dia., not serviced separately, order valve assy 404496R3, drive control

1шт.

33

SPOOL, not serviced separately, order valve assy 401852R92, drive control

1шт.

34

BODY, check valve seat, not serviced separately, order valve assy 404496R3, drive control

1шт.

35

SPRING, lower check valve, not serviced separately, order valve assy 404496R3 drive control

1шт.

36

PIN, upper valve lift, not serviced separately, order valve assy 404496R3, drive control

1шт.

37

BALL, 1/4 dia., not serviced separately, order valve assy 404496R3, drive control

1шт.

38

SEAT, lower check valve, not serviced separately, order valve assy 404496R3, drive control

1шт.

39

9410356

PLUG

7/16-20 str thd o-ring boss, drive control

3шт.

40

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, Drive control

3шт.

41

PIN, anti-coast valve, not serviced separately, order valve assy 401852R92, drive cotnrol

1шт.

42

PIN, anti-coast valve spool, not serviced separately, order valve assy 401852R92, drive control

1шт.

42

PIN, anti-coast valve spool, not serviced separately, order valve assy 401852R92, drive control

1шт.
