(07-39) - DRIVE TRAIN, CHECK VALVE MANIFOLD

Запчасти Case IH 2500 (07-39) - DRIVE TRAIN, CHECK VALVE MANIFOLD (04) - Drive Train

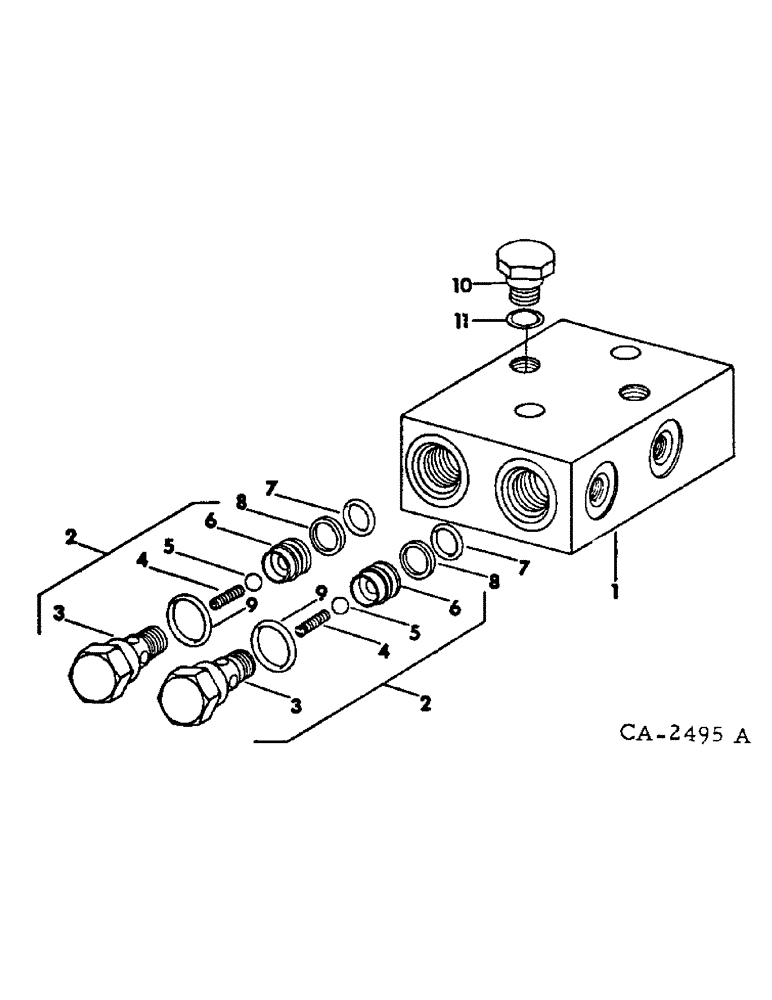

Схема запчастей Case IH 2500 - (07-39) - DRIVE TRAIN, CHECK VALVE MANIFOLD (04) - Drive Train
10
3
4
8
2
2
9
6
11
3
8
6
7
7
1
9
5
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

MANIFOLD ASSY, check valve

1шт.

1

535250R2

BLOCK

check valve

1шт.

2

535251R1

VALVE

ASSY, check

2шт.

3

BODY, not serviced separately, furnish valve assy 535251R1

2шт.

4

SPRING, not serviced separately, furnish valve assy 535251R1

2шт.

5

BALL, 1/4 stl, not serviced separately, furnish valve assy 535251R

2шт.

6

SEAT, valve, not serviced separately, furnish valve assy 535251R1

2шт.

7

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 x 1/16

2шт.

8

398699R1

BACK-UP RING

WASHER, back-up

2шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

2шт.

10

9410356

PLUG

7/16-20

2шт.

11

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.
