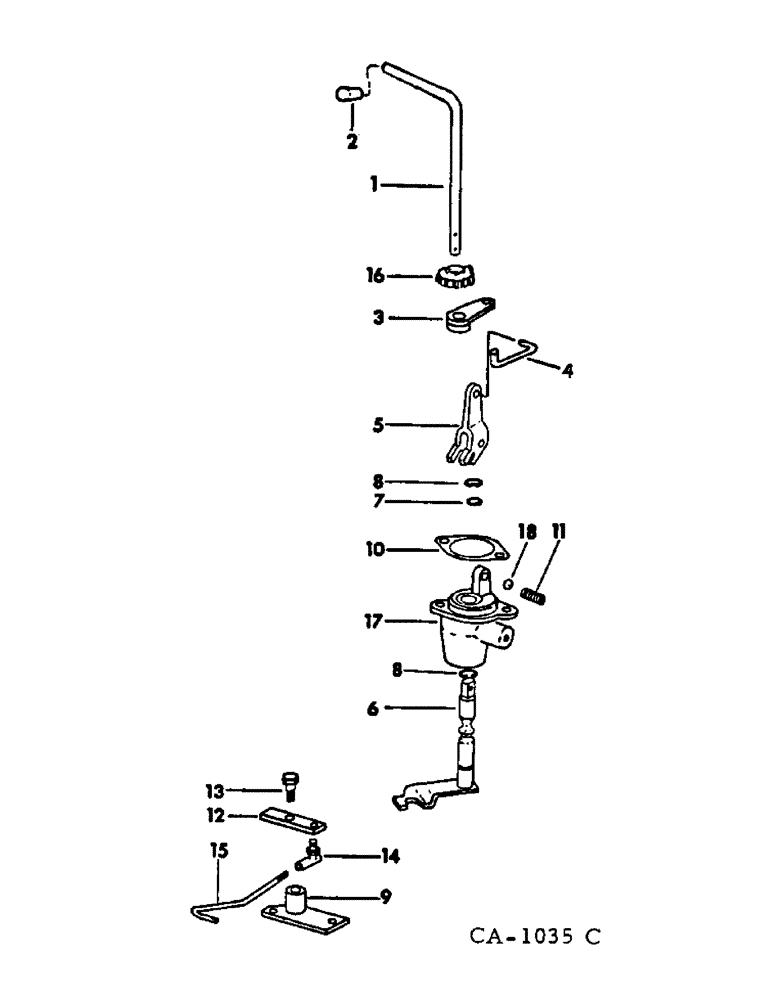

Запчасти Case IH 2500 (07-33) - DRIVE TRAIN, FORWARD AND REVERSE CONTROLS (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
69746C1
ROD
control handle, on orders for handle 402583R1 furnish handle 697486C1 and knob 397931R2
1шт.
2
402584R1
BUTTON
KNOB, control handle, used with rod 402583R1
1шт.
Q5035
WASHER
1/2 x 1 x 1/16
1шт.
103384
COTTER PIN,1/8" x 3/4"
PIN, 1/8 x 1 cot.
1шт.
2
397931R2
GRIP
KNOB, control handle, used with rod 69746C1
1шт.
2
397931R2GV
SPRING
Value, Knob
1шт.
3
402585R1
ARM
ASSY, control
1шт.
19313R1
PIN,5/32" x 7/8", Coiled
5/32 x 3/4 hv coiled spring
1шт.
4
402588R1
ROD
control
1шт.
95-11028
WASHER,1/4"
9/32 x 5/8 x .051
2шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
2шт.
5
528941R1
LEVER
BELLCRANK, control
1шт.
130368H
PIN
1/4 x 1-11/64 rod end
1шт.
16558R1
WASHER
17/64 x 5/8 x .036
1шт.
107761
COTTER PIN,1/16" x 5/8"
Pin, Split (Cotter), 1/16" x 5/8"
1шт.
6
531553R1
LEVER ASSY.
LEVER ASSY, control
1шт.
19878R1
DOWEL,3/16" x 1"
PIN, 3/16 x 1 dowel
1шт.
7
370920R1
O-RING,1/2" ID
1/2 x 5/8 x 1/16
1шт.
8
309032R1
SNAP RING,#62, Ext
Ring, Snap, , control shaft #62, Ext
2шт.
9
528942R1
PLATE ASSY.
PLATE ASSY, mounting
1шт.
10
401623R1
GASKET
control shaft support
1шт.
11
402596R1
SPRING
control
1шт.
12
528945R1
LOCKING PLATE
locking
1шт.
13
399509R1
BOLT,Shldr, Hex, 3/8" - 16 x 1", W/ Wshr
BOLT, shoulder
1шт.
23408R1
WASHER
15/32 x 3/4 x 16 ga C-Z
1шт.
14
367265R91
JOINT, 5/16-24 x 1-1/2 ball, optional w/19323R1
1шт.
14
19323R1
JOINT
5/16-24 x 1-1/2 ball, optional w/367265R91
1шт.
15
528946R1
ROD
lockout
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
2шт.
16
528290R1
GUIDE RING
COLLAR, control handle
1шт.
222335
SET SCREW,Hex Soc, #8-32 x 3/8"
SCREW, 8-32 x 3/5 hex-soc-hd-f-pt set
1шт.
17
402595R1
SUPPORT
control shaft
1шт.
179814
SPACER
2шт.
18
17014R1
BALL
7/16 cr-stl
1шт.
Выбрано товаров: 36
