Запчасти Case IH 2500 (07-046) - INDEPENDENT POWER TAKE OFF, DUAL SPEED, 574 UP TO S/N 10036, 2500 UP TO S/N 593 (04) - Drive Train

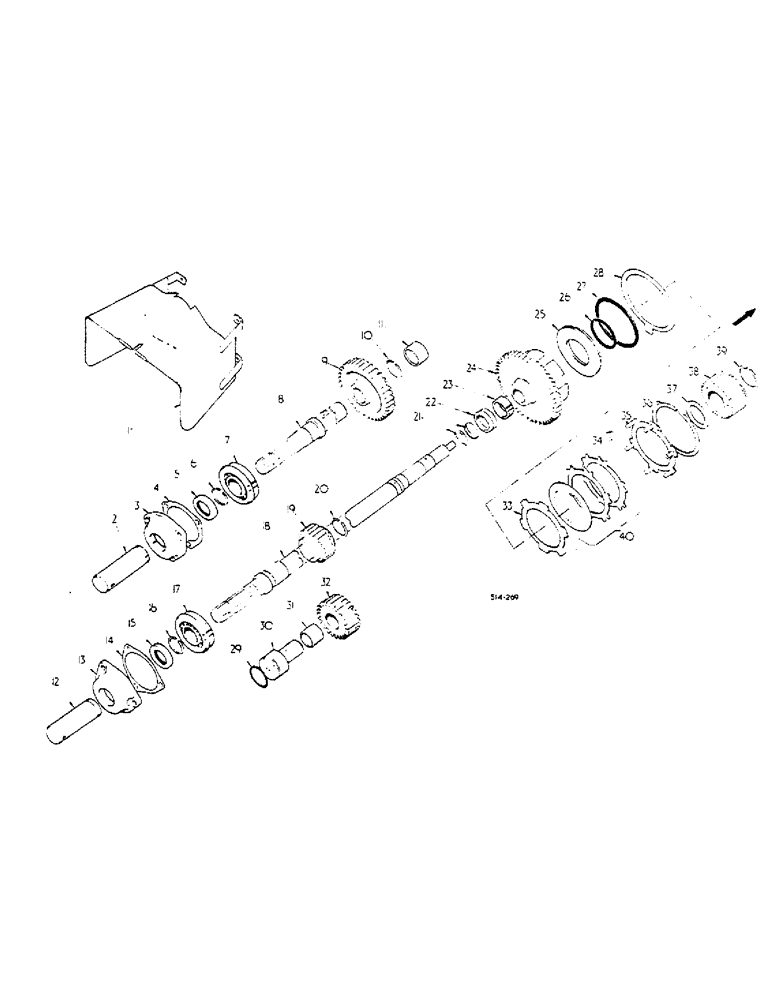

Схема запчастей Case IH 2500 - (07-046) - INDEPENDENT POWER TAKE OFF, DUAL SPEED, 574 UP TO S/N 10036, 2500 UP TO S/N 593 (04) - Drive Train
17
30
22
20
39
28
15
6
36
21
26
35
1
25
13
9
32
5
10
18
3
7
12
24
2
8
31
27
34
11
14
37
29
33
16
4
40
19
38
23

Артикул

Название

Примечание

Количество

1

401734R1

GUARD ASSY.

SHIELD ASSY, IPTO SAFETY

1шт.

1

528481R1

SHIELD

ASSY, IPTO SAFETY -TRACTORS W/HAND OPERATED DRUM BRAKE-

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

2

406808R1

TUBE

ASSY IPTO SHAFT PROTECTION

1шт.

3

401725R1

NO LONGER SERVICED

FLANGE/Retired FLANGE IPTO SHAFT BEARING

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

4

399843R2

GASKET

SHAFT BRG RETAINER

1шт.

5

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SHAFT

1шт.

6

555570R1

SNAP RING

BEARING RETAINER

1шт.

7

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT

1шт.

7

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT

1шт.

7

533615R1

BEARING

SHAFT

1шт.

7

538962R1

SHAFT -OPTIONAL-

1шт.

8

404234R1

SHAFT

UPPER OUTPUT

1шт.

9

404237R1

PINION

GEAR, 623 RPM DRIVEN -36T- -1000 AND 614 RPM-

1шт.

9

404235R1

GEAR

555 RPM DRIVEN -38T- -1000 AND 540 RPM-

1шт.

10

336000R1

SNAP RING,#175, 1.640", Ext

DRIVEN GEAR RETAINER

1шт.

11

112821R91

NEEDLE BEARING

555 OR 614 RPM SHAFT NEEDLE

1шт.

11

528103R91

BEARING, NEEDLE

555 OR 614 RPM SHAFT -OPTIONAL-

1шт.

12

406808R1

TUBE

ASSY IPTO SHAFT PROTECTION

1шт.

13

401725R1

NO LONGER SERVICED

FLANGE/Retired FLANGE IPTO SHAFT BEARING

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

14

399843R2

GASKET

SHAFT BRG RETAINER

1шт.

15

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SHAFT

1шт.

16

555570R1

SNAP RING

BEARING RETAINER

1шт.

17

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT

1шт.

17

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT

1шт.

17

533615R1

BEARING

SHAFT

1шт.

17

538962R1

SHAFT -OPTIONAL-

1шт.

18

404209R91

SHAFT

ASSY, 1000 RPM

1шт.

19

404233R1

PINION

GEAR, LOWER SHAFT DRIVE -22T- -1000 AND 614 RPM-

1шт.

19

404232R1

GEAR

LOWER SHAFT DRIVE -21T- -1000 AND 540 RPM

1шт.

20

336000R1

SNAP RING,#175, 1.640", Ext

DRIVEN GEAR RETAINER

1шт.

21

166972R1

RING

SHAFT SEALING

2шт.

22

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

LOWER SHAFT

1шт.

23

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

1004 RPM SHAFT

1шт.

24

404230R1

GEAR

CLUTCH CUP 44T -W/PROVISION FOR SIDE PTO-

1шт.

24

406599R1

GEAR

CLUTCH CUP-W/O PROVISION FOR SIDE PTO-

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

1шт.

25

401722R1

PISTON

CLUTCH

1шт.

26

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

RING, PISTON SEAL - INNER

1шт.

27

401724R1

SEAL,0.551" ID x 0.07" Width

RING, PISTON SEAL - OUTER

1шт.

28

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO BRAKE

1шт.

29

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 X 2-1/4 X 3/32

1шт.

30

401726R1

SHAFT

IPTO IDLER

1шт.

31

570450R1

BEARING

IDLER SHAFT

1шт.

31

528105R91

BEARING, NEEDLE

IDLER SHAFT -OPTIONAL-

1шт.

32

401727R1

PINION

GEAR, IDLER -24T

1шт.

33

401718R1

PLATE

PISTON RETURN

1шт.

34

401715R1

SPRING

PISTON RETURN

4шт.

35

401714R11

PLATE

ASSY, CLUTCH BACKING

1шт.

20154R1

DOWEL,5/16" x 7/8"

PIN 5/16 X 7/8

4шт.

36

401720R1

CIRCLIP

BACKING PLATE

1шт.

37

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

38

401710R1

HUB

ASSY, CLUTCH

1шт.

39

401756R1

SNAP RING,#206, 1.936", Ext

1шт.

40

534934R92

PLATE

PACKAGE, 1000 RPM CLUTCH PLATE -SERVICE- CONSISTS OF

1шт.

DISC

4шт.

PLATE

6шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

1шт.

401715R1

SPRING

4шт.

537231R1

DECAL

PRODUCT-GRAPHIC, IPTO SPEED -FOR SYNCHROMESH DRIVE TRACTORS EQUIPPED W/IPTO ATTACHMENT 614 AND 1000 RPM- , NOT ILLUSTRATED

1шт.

537232R1

DECAL

PRODUCT-GRAPHIC, IPTO SPEED -FOR HYDROSTATIC DRIVE TRACTORS EQUIPPED W/IPTO ATTACHMENT 614 AND 1000 RPM, AND FOR SYNCHROMESH DRIVE TRACTORS EQUIPPED W/IPTO ATTACHMENT 549 AND 1000 RPM- , NOT ILLUSTRATED

1шт.

537233R1

PRODUCT-GRAPHIC, IPTO SPEED -FOR HYDROSTATIC DRIVE TRACTORS EQUIPPED W/IPTO ATTACHMENT 540 AND 1000 RPM- , NOT ILLUSTRATED

1шт.

Выбрано товаров: 65
