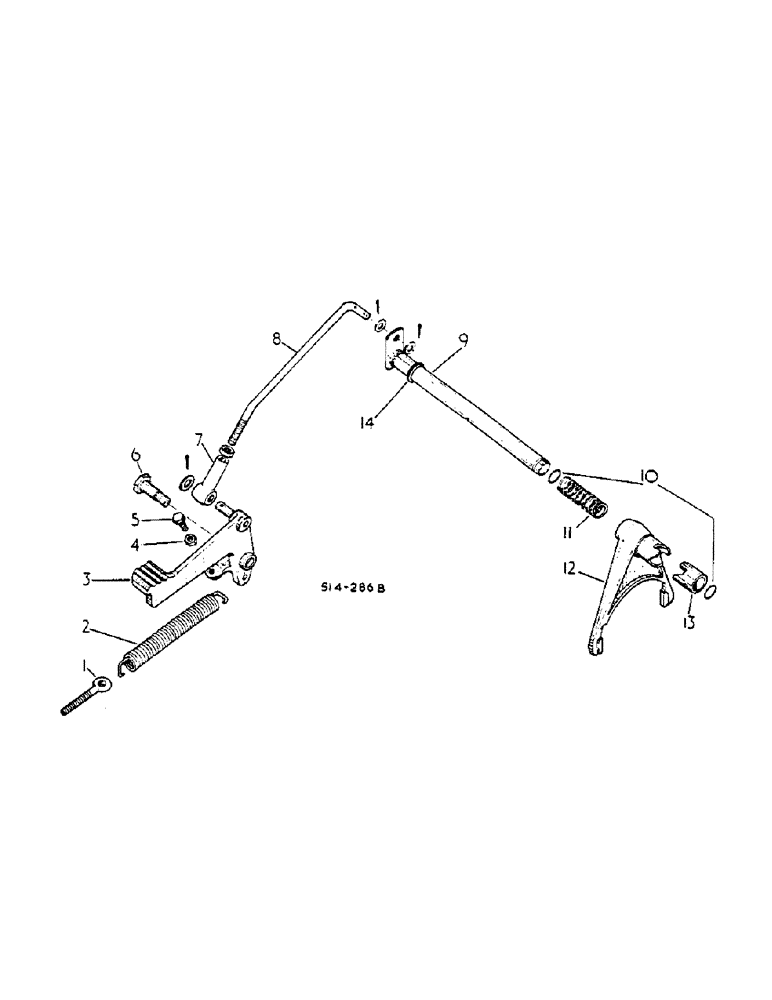

Запчасти Case IH 2500 (07-040) - DIFFERENTIAL LOCK (04) - Drive Train

1

530046R1

BOLT

PEDAL RETURN SPRING EYE

1шт.

102635

NUT,3/8"-16, G5

2шт.

2

527886

SPRING

DIFF. LOCK PEDAL RETURN

1шт.

3

66441C1

PEDAL

DIFF. LOCK

1шт.

11002VA

WASHER

17/32 X 7/8 X 1/16

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

4

109084

NUT,1/4"-20, G5

1шт.

5

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

6

527885R1

BOLT

BOLT, DIFF. LOCK PEDAL RETURN

1шт.

7

527880R1

END

DIFF. LOCK PEDAL RETURN

1шт.

8

527879R1

ROD

DIFF. LOCK PEDAL

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

Q1597

WASHER

13/32 X 3/4 X 1/16

2шт.

Q103384

PIN 1/8 X 3/4 COT.

2шт.

9

65346C1

SHAFT

ASSY, DIFF LOCK

1шт.

365704R1

PIN,1/8" x 5/8", Coiled

574, Serial Range: 102927-103134

1шт.

ON ORDERS FOR SHAFT 65346C1 FURNISH 527871R1 W/FORK 527874R3 CAM 527877R1 AND PIN 19885R1

1шт.

365704R1

PIN,1/8" x 5/8", Coiled

574, Serial Range: 103139-103361

1шт.

ON ORDERS FOR SHAFT 65346C1 FURNISH 527871R1 W/FORK 527874R3 CAM 527877R1 AND PIN 19885R1

1шт.

365704R1

PIN,1/8" x 5/8", Coiled

2500, Serial Range: 100042-100061

1шт.

ON ORDERS FOR SHAFT 65346C1 FURNISH 527871R1 W/FORK 527874R3 CAM 527877R1 AND PIN 19885R1

1шт.

9

527871R1

SHAFT ASSY.

DIFF. LOCK, 574, Serial Range: -102926

1шт.

9

527871R1

SHAFT ASSY.

DIFF. LOCK, 574, Serial Range: 103135-103138

1шт.

9

527871R1

SHAFT ASSY.

DIFF. LOCK, 574, Start Serial: 103662

1шт.

9

527871R1

SHAFT ASSY.

DIFF. LOCK, 2500, Serial Range: -100041

1шт.

9

527871R1

SHAFT ASSY.

DIFF. LOCK , 2500, Start Serial: 100062

1шт.

10

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 X 3/4 X 3/32

2шт.

11

527878R1

SPRING

DIFF LOCK FORK ACTUATING

1шт.

12

65438C1

FORK ASSY, DIFF. LOCK SHAFT, 574, Serial Range: 102927-103134

1шт.

ON ORDERS FOR SHAFT 65346C1 FURNISH 527871R1 W/FORK 527874R3 CAM 527877R1 AND PIN 19885R1

1шт.

12

65438C1

FORK ASSY, DIFF. LOCK SHAFT, 574, Serial Range: 103139-103661

1шт.

ON ORDERS FOR SHAFT 65346C1 FURNISH 527871R1 W/FORK 527874R3 CAM 527877R1 AND PIN 19885R1

1шт.

12

65438C1

FORK ASSY, DIFF. LOCK SHAFT, 2500, Serial Range: 100042-100061

1шт.

ON ORDERS FOR SHAFT 65346C1 FURNISH 527871R1 W/FORK 527874R3 CAM 527877R1 AND PIN 19885R1

1шт.

12

527874R3

FORK

ASSY, DIFF LOCK SHAFT

1шт.

13

527877R1

CAM

DIFF LOCK SHAFT

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

574, Serial Range: -102926

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

574, Serial Range: 103135-103138

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

574, Start Serial: 103662

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

2500, Serial Range: -100041

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

2500, Start Serial: 100062

1шт.

14

551658R1

WASHER

25/32 X 1-1/4 X 22 GA

1шт.

14

Q3501

WASHER

25/32 X 1/1/4 X 16 GA - AS REQUIRED -

1шт.

237672R1

PAD

DIFF. LOCK PEDAL - USE W/TWO PIECE PEDAL -, NOT ILLUSTRATED

1шт.

16809R1

SPARE PART 1/2 X 1-5/16 ROD END, NOT ILLUSTRATED

1шт.

11002VA

WASHER

17/32 X 7/8 X 1/16, NOT ILLUSTRATED

1шт.

103384

COTTER PIN,1/8" x 3/4"

Use w/two piece pedal, not illustrated

1шт.

65350C1

NO LONGER SERVICED

PIN, DIFF. LOCK CAM ACTUATING - ORDER SHAFT 527871R1 FORK 527874R3 CAM 527877R1 AND PIN 19885R1, 574, NOT ILLUSTRATED, Serial Range: 102927-103134

1шт.

65350C1

NO LONGER SERVICED

PIN, DIFF. LOCK CAM ACTUATING - ORDER SHAFT 527871R1 FORK 527874R3 CAM 527877R1 AND PIN 19885R1, 574 NOT ILLUSTRATED, Serial Range: 103139-103661

1шт.

65350C1

NO LONGER SERVICED

PIN, DIFF. LOCK CAM ACTUATING - ORDER SHAFT 527871R1 FORK 527874R3 CAM 527877R1 AND PIN 19885R1 - - 574/102927 UP TO /103134 , 2500, NOT ILLUSTRATED, Serial Range: 100042-100061

1шт.
