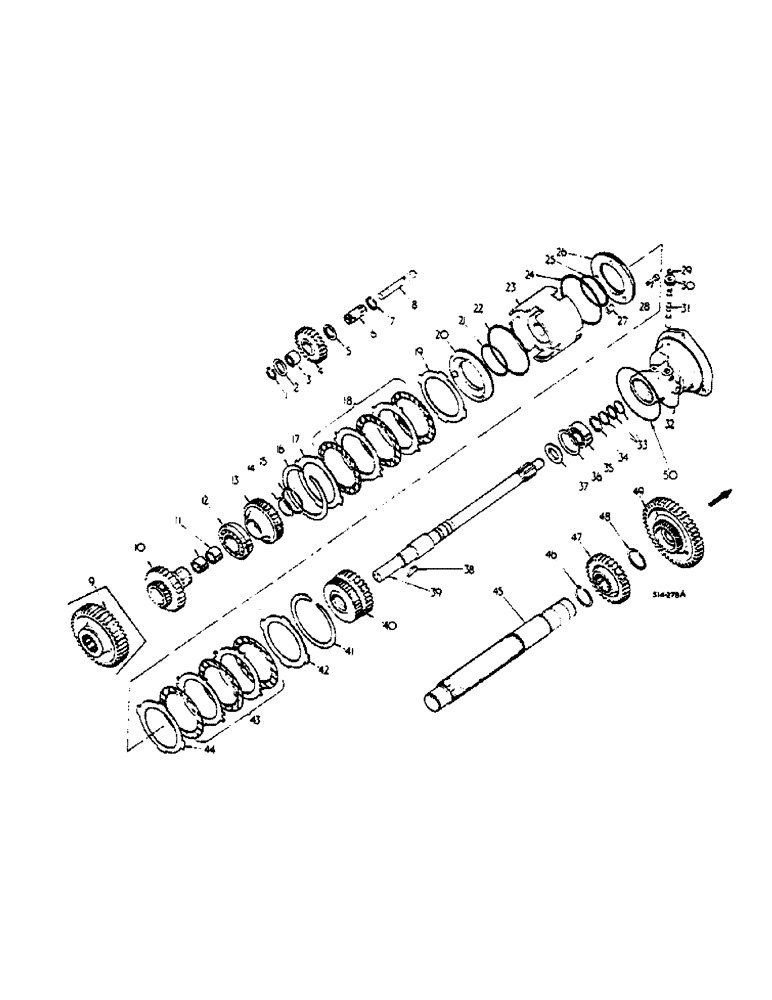

Запчасти Case IH 2500 (07-027) - FORWARD AND REVERSE, SYNCHROMESH DRIVE (04) - Drive Train

1

362250R1

SPARE PART RING IDLER GEAR RETAINER

1шт.

2

527772R1

WASHER

FWD-REV IDLER GEAR

1шт.

3

551139R91

BEARING, NEEDLE

IDLER SHAFT

1шт.

3

529930R91

BEARING

IDLER SHAFT NEEDLE -OPTIONAL-

1шт.

4

527776R1

PINION

GEAR, FWD-REV IDLER -23T

1шт.

5

527772R1

WASHER

FWD-REV IDLER GEAR

1шт.

6

527775R2

SLEEVE

IDLER GEAR

1шт.

18543R1

LOCK PIN,7/32" x 1", Slotted

1шт.

7

362260R1

RING, SNAP

RING SNAP IDLER GEAR RETAINER

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

3/16" x 1 1/4", Coiled

1шт.

8

527774R1

SHAFT

FWD-REV IDLER

1шт.

9

527779R2

GEAR

HI-LO SLIDING -40T- -USED W/TRACTORS FITTED W/SLOW SPEED TRAIN TYPE A-

1шт.

9

527773R2

GEAR

HI-LO SLIDING -42T- -USED W/TRACTORS FITTED W/FAST SPEED TRAIN TYPE B-

1шт.

10

404200R1

GEAR

DIRECT DRIVE HUB -28T

1шт.

11

531436R91

NEEDLE BEARING

CLUTCH SHAFT

2шт.

11

550839R91

BEARING, NEEDLE

CLUTCH SHAFT -OPTIONAL-

2шт.

12

70126C91

BALL BEARING

DIRECT DRIVE GEAR

1шт.

12

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

DIRECT DRIVE GEAR

1шт.

12

42347D

BALL BEARING

DIRECT DRIVE GEAR

1шт.

12

528088R91

BALL BEARING

DIRECT DRIVE GEAR

1шт.

12

3066862R91

BALL BEARING

DIRECT DRIVE GEAR

1шт.

12

398323R91

BALL BEARING

DIRECT DRIVE GEAR -OPTIONAL-

1шт.

13

404199R2

CARRIER

DIRECT DRIVE CLUTCH DISC

1шт.

14

583976R1

SNAP RING,#125, 1.179", Ext

RING, CLUTCH CUP RETAINER SNAP

1шт.

15

336000R1

SNAP RING,#175, 1.640", Ext

DISC CARRIER RETAINER

1шт.

16

401720R1

CIRCLIP

BACKING PLATE RETAINER

2шт.

17

402569R1

PLATE

CLUTCH BACKING

2шт.

18

534937R91

SERVICE KIT

PACKAGE, FWD-REV CLUTCH PLATE -SERVICE- -CONSISTS OF

1шт.

PLATE

6шт.

PLATE

4шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

2шт.

401724R1

SEAL,0.551" ID x 0.07" Width

2шт.

19

402572R1

PLATE

PISTON BACKING

2шт.

20

527766R1

PISTON

DIRECT DRIVE CLUTCH

1шт.

21

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

CLUTCH PISTON-INNER

1шт.

22

401724R1

SEAL,0.551" ID x 0.07" Width

CLUTCH PISTON-OUTER

1шт.

23

527765R1

NO LONGER SERVICED

CUP, DIRECT DRIVE CLUTCH

1шт.

24

401724R1

SEAL,0.551" ID x 0.07" Width

CLUTCH PISTON-OUTER

1шт.

25

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

CLUTCH PISTON-INNER

1шт.

26

527766R1

PISTON

DIRECT DRIVE CLUTCH

1шт.

27

527769R1

SPACER

PISTON

3шт.

140687

1/4-28 SQ MACH SCREW

3шт.

28

527768R1

BOLT (SPREADER),Skt Hd, 1/4" - 28 x 1"

FWD-REV PISTON RETURN

3шт.

29

896045R1

SNAP RING,#37, Ext

1шт.

30

531539R1

COLLAR

CONTROL STEM

1шт.

31

536974R1

STEM

FORWARD AND REVERSE CONTROL, Start Serial: 007258

1шт.

31

527759R1

NO LONGER SERVICED

STEM, CONTROL VALVE

1шт.

ON ORDERS FOR STEM 527759R1 FURNISH STEM 536974R1 TOGETHER W/RING 896045R1.

1шт.

145028

GASKET

3/8-24 HEX. LOCK, Serial Range: -007257

1шт.

32

527761R1

NO LONGER SERVICED

CAGE ASSY, IPTO + CLUTCH CUP RETAINER

1шт.

33

406275R1

RING

CLUTCH SHAFT PISTON

3шт.

34

3112664R1

SNAP RING

CLUTCH SHAFT BRG OUTER RETAINING

1шт.

35

70125C91

BEARING, BALL

CLUTCH SHAFT

1шт.

35

703981R91

BEARING, BALL

CLUTCH SHAFT OPT.

1шт.

35

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

CLUTCH SHAFT OPT.

1шт.

35

86276H

BALL BEARING

CLUTCH SHAFT OPT.

1шт.

704771R92

BEARING, BALL,30 mm ID x 62 mm OD x 16"

CLUTCH SHAFT -OPTIONAL-

1шт.

36

139743R1

RING

CLUTCH SHAFT BRG INNER RETAINING

1шт.

37

527767R1

THRUST WASHER

CLUTCH SHAFT

1шт.

38

124554

O-RING

5/16 X 1 WOODRUFF B

1шт.

39

527760R11

SHAFT HOUSING

ASSY, CLUTCH

1шт.

222386

CAPSCREW,Set, Hdls, 1/4" - 20 x 1/4", Flat Pt

1/4-20 X 1/4 HEX. SOC-HD-F PT SET

2шт.

40

527763R1

GEAR

ASSY, DRIVE

1шт.

41

401720R1

CIRCLIP

BACKING PLATE RETAINING

1шт.

42

402569R1

PLATE

CLUTCH BACKING

1шт.

43

SEE SERVICE PACKAGE 534937R91

1шт.

44

402572R1

PLATE

PISTON BACKING

1шт.

45

404104R1

SHAFT

1шт.

46

381486R1

SNAP RING,#187, 1.759", Ext

GEAR RETAINING

1шт.

47

527771R1

PINION

GEAR, FWD-REV DRIVEN -31T

1шт.

48

381486R1

SNAP RING,#187, 1.759", Ext

GEAR RETAINING

1шт.

49

527770R1

GEAR

IPTO DRIVEN 46T AND FWD-REV PUMP DRIVE 33T-

1шт.

50

343942R1

O-RING,5.359" ID x 0.139" Width

5-3/8 X 5-5/8 X 1/2 BRG CAGE

1шт.
