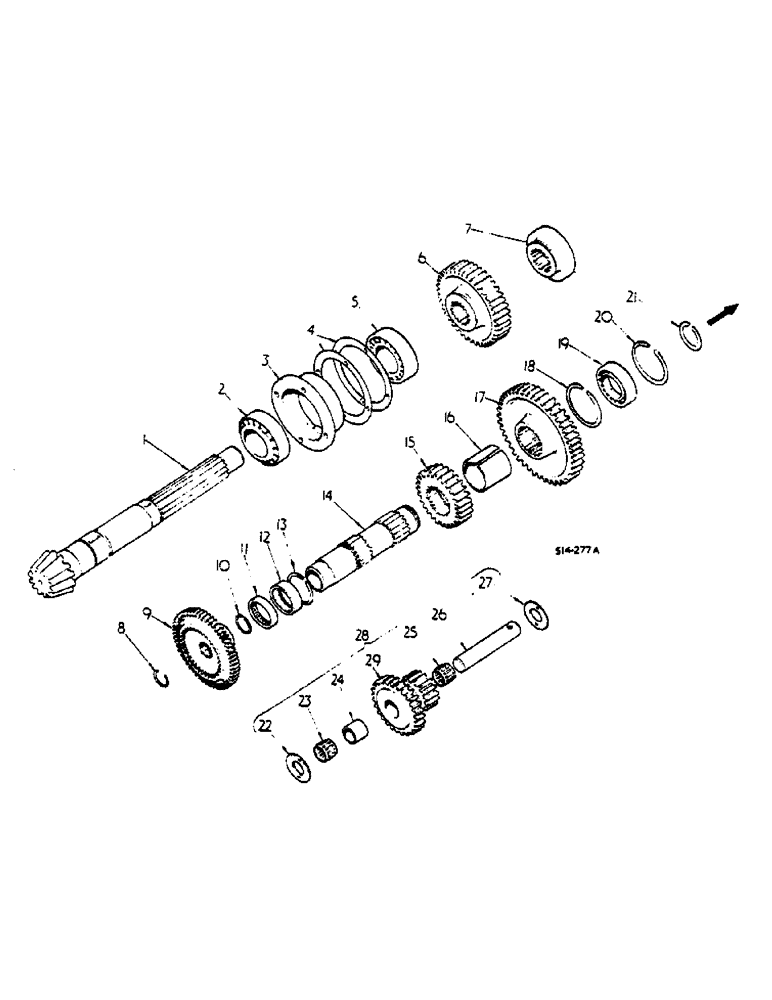

Запчасти Case IH 2500 (07-024) - RANGE TRANSMISSION, IN REAR FRAME (04) - Drive Train

1

65254C1

SHAFT

SET, BEVEL GEARS MATCHED -12/53T- -SYNCHROMESH -CONSISTS OF, Start Serial: 008553

1шт.

1

65254C1

SHAFT

SET, BEVEL GEARS MATCHED -12/53T- HYDROSTATIC -CONSISTS OF, Start Serial: 009815

1шт.

65257C1

SPARE PART

SHAFT

1шт.

399452R1

GEAR

1шт.

1

529649R1

GEAR-SET

BEVEL, MATCHED -12/53T, SYNCHROMESH -CONSISTS OF, Serial Range: -008552

1шт.

1

529649R1

GEAR-SET

BEVEL, MATCHED -12/53T, HYDROSTATIC- -CONSISTS OF, Serial Range: -009814

1шт.

399459R1

SHAFT

1шт.

399452R1

GEAR

1шт.

1

65255C1

GEAR SET

BEVEL, MATCHED -14/51T, SYNCHROMESH -CONSISTS OF, Start Serial: 008553

1шт.

1

65255C1

GEAR SET

BEVEL, MATCHED -14/51T, HYDROSTATIC -CONSISTS OF, Start Serial: 009815

1шт.

65256C1

SHAFT

1шт.

399453R1

GEAR

1шт.

1

529650R1

GEAR-SET

BEVEL, MATCHED -14/51T- SYNCHROMESH -CONSISTS OF, Serial Range: -008552

1шт.

1

529650R1

GEAR-SET

BEVEL, MATCHED -14/51T- HYDROSTATIC- -CONSISTS OF, Serial Range: -009814

1шт.

399460R1

SHAFT

1шт.

399453R1

GEAR

1шт.

2

399823R91

BEARING ASSY,2.187" ID x 3.8437" OD x 0.9745, 0.7656"

ASSY, MAIN SHAFT REAR

1шт.

2

399824R91

ROLLER BEARING

ASSY, MAIN SHAFT REAR -OPTIONAL-

1шт.

3

399825R1

BEARING CUP

CAGE, MAIN SHAFT BRG

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

4

65423C1

SHIM KIT

PACKAGE, MAIN SHAFT BRG CAGE -SERVICE- -CONSISTS OF

1шт.

399826R1

SHIM

2шт.

399827R1

SHIM

5шт.

5

399821R91

BEARING ASSY,2.125" ID x 3.8125" OD x 0.8328"

ASSY, MAIN SHAFT FRONT

1шт.

5

399822R91

ROLLER BEARING

ASSY, MAIN SHAFT FRONT -OPTIONAL-

1шт.

6

399461R1

GEAR

FWD REVERSE SLIDING -40T- -SYNCHROMESH DRIVE TRACTORS- -15 MPH TRANSMISSION-

1шт.

6

399462R1

GEAR

FWD REVERSE SLIDING -42T- -SYNCHROMESH DRIVE TRACTORS- -20 MPH TRANSMISSION-

1шт.

6

399829R1

GEAR WHEEL

HI-LO SLIDING -42T- -HYDROSTATIC DRIVE TRACTORS- -HAND SPEED CONTROLS-

1шт.

6

536911R5

GEAR

HI-LO SLIDING -44T- -HYDROSTATIC DRIVE- -FOOT SPEED CONTROL

1шт.

7

399830R2

COLLAR

HI-SPEED SHIFT -SYNCHROMESH DRIVE TRACTORS-

1шт.

8

533266R1

RING, SNAP

RING SNAP IPTO FRONT DRIVEN SHAFT REAR

1шт.

9

404218R1

GEAR

PUMP DRIVE -55T -TRACTORS W/DUAL SPEED IPTO-

1шт.

10

399837R1

SNAP RING,#118, 1.121", Ext

PUMP DRIVE GEAR RETAINER

1шт.

11

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

PUMP DRIVE GEAR

1шт.

12

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

COUNTERSHAFT

1шт.

12

527746R91

BEARING, NEEDLE

COUNTERSHAFT -OPTIONAL-

1шт.

13

398264R1

SNAP RING,#215, 2.026", Ext

LO RANGE DRIVING GEAR RET

1шт.

14

404096R1

SHAFT

RANGE TRANSMISSION

1шт.

15

404100R1

PINION

GEAR, LO RANGE DRIVING -27T- -SYNCHROMESH DRIVE TRACTORS- -15 MPH TRANSMISSION-

1шт.

15

404099R1

GEAR

LO RANGE DRIVING -25T- -20 MPH TRANSMISSION- -15 MPH TRANSMISSION HYDRO-

1шт.

15

536910R1

PINION

GEAR, LO-RANGE DRIVING 24T -HAND SPEED CONTROLS-

1шт.

16

399835R1

BUSHING

COUNTERSHAFT GEARS

1шт.

17

404097R1

GEAR

CONSTANT MESH -46T -SYNCHROMESH DRIVE TRACTORS-

1шт.

17

404098R1

GEAR

SPARE PART CONSTANT MESH -40T- -HYDROSTATIC DRIVE TRACTORS-

1шт.

18

399832R1

RING, SNAP

RING SNAP COUNTERSHAFT BRG INT

2шт.

19

ST572

BEARING, BALL,50 mm ID x 80 mm OD x 16 mm

COUNTERSHAFT FRONT

1шт.

19

360635R91

BEARING, BALL

COUNTERSHAFT FRONT

1шт.

19

528101R91

BEARING, BALL

COUNTERSHAFT FRONT

1шт.

19

528102R91

BEARING, BALL

COUNTERSHAFT FRONT

1шт.

19

3047867R91

BEARING, BALL

COUNTERSHAFT FRONT

1шт.

19

3069304R91

BALL BEARING

COUNTERSHAFT FRONT

1шт.

19

69843C91

BALL BEARING,49.994 mm ID x 79.994 mm OD x 15.94 mm

COUNTERSHAFT FRONT -OPTIONAL-

1шт.

20

399832R1

RING, SNAP

RING SNAP COUNTERSHAFT BRG INT

1шт.

21

327068R1

RING, SNAP

RING SNAP COUNTERSHAFT BRG EXT EXT

1шт.

22

3112846R1

THRUST WASHER

IDLER

2шт.

23

3112844R91

BEARING, NEEDLE

REVERSE IDLER GEAR -SYNCHROMESH DRIVE TRACTORS-

2шт.

23

3113041R91

ROLLER CAGE BEARING

REVERSE IDLER GEAR NEEDLE -SYNCHROMESH DRIVE -OPTIONAL-

2шт.

24

3112845R1

SPACER

IDLER BEARING

1шт.

25

3112844R91

BEARING, NEEDLE

REVERSE IDLER GEAR -SYNCHROMESH DRIVE TRACTOR

1шт.

25

3113041R91

ROLLER CAGE BEARING

REVERSE IDLER GEAR NEEDLE -SYNCHROMESH DRIVE TRACTOR -OPTIONAL-

1шт.

26

399838R2

SHAFT

REVERSE IDLER -SYNCHROMESH DRIVE TRACTORS-

1шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

3/8" x 1 3/4", Coiled

1шт.

27

3112846R1

THRUST WASHER

IDLER

1шт.

28

3112847R91

KIT

PACKAGE, REVERSE IDLER GEAR NEEDLE -SYNCHROMESH DRIVE TRACTORS- -AR/AS TRANSMISSION 15 MPH- -CONSISTS OF

1шт.

3112843R1

GEAR

1шт.

3112844R91

BEARING, NEEDLE

2шт.

3112845R1

SPACER

1шт.

3112846R1

THRUST WASHER

2шт.

399838R2

SHAFT

1шт.

28

3112848R91

10 NEEDLE BRG KIT

PACKAGE, REVERSE IDLER GEAR NEEDLE -SYNCHROMESH DRIVE TRACTORS- -BR/BS TRANSMISSION 20 MPH- -CONSISTS OF 1 GEAR 3112842R1 2 BEARING 3112844R91 1 SPACER 3112845R1 2 WASHER 3112846R1 1 SHAFT 399838R2-

1шт.

3112842R1

GEAR

1шт.

3112844R91

BEARING, NEEDLE

2шт.

3112845R1

SPACER

1шт.

3112846R1

THRUST WASHER

2шт.

399838R2

SHAFT

1шт.

29

3112842R1

GEAR

REVERSE IDLER 20 + 25 T - 20 MPH -

1шт.

29

3112843R1

GEAR

REVERSE IDLER 18 + 27 T - 15 MPH -

1шт.
