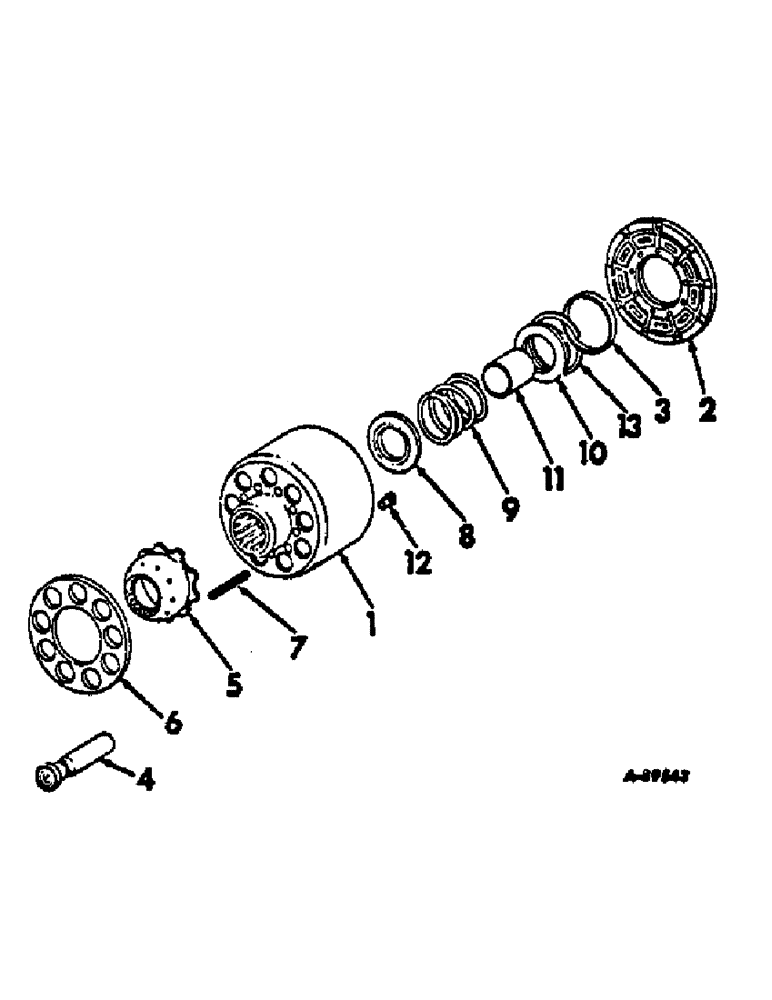

Запчасти Case IH 2500 (07-017) - PUMP CYLINDER BLOCK (04) - Drive Train

1

394156R91

CYLINDER BLOCK

ASSY, CYLINDER

1шт.

2

404201R1

PLATE

BEARING

1шт.

3

394162R1

RING

PILOT, BEARING PLATE

1шт.

4

539256R1

PISTON ASSY

9шт.

5

394154R1

GUIDE

SLIPPER RETAINER

1шт.

6

394155R1

RETAINER

SLIPPER

1шт.

7

394157R1

SPRING

RETAINER

9шт.

8

394158R1

SEAT

SPRING

1шт.

9

532302R1

SPRING

CYLINDER BLOCK

1шт.

10

394161R1

RETAINER

SPRING

1шт.

11

394159R1

GUIDE

SPRING

1шт.

12

394164R1

PIN

PISTON CYLINDER

1шт.

13

21015R1

SNAP RING,#212, 2.217, Int, Spiral

INTERNAL RETAINING SPIROLOX

1шт.
