Запчасти Case IH 2500 (07-016) - MOTOR CYLINDER BLOCK (04) - Drive Train

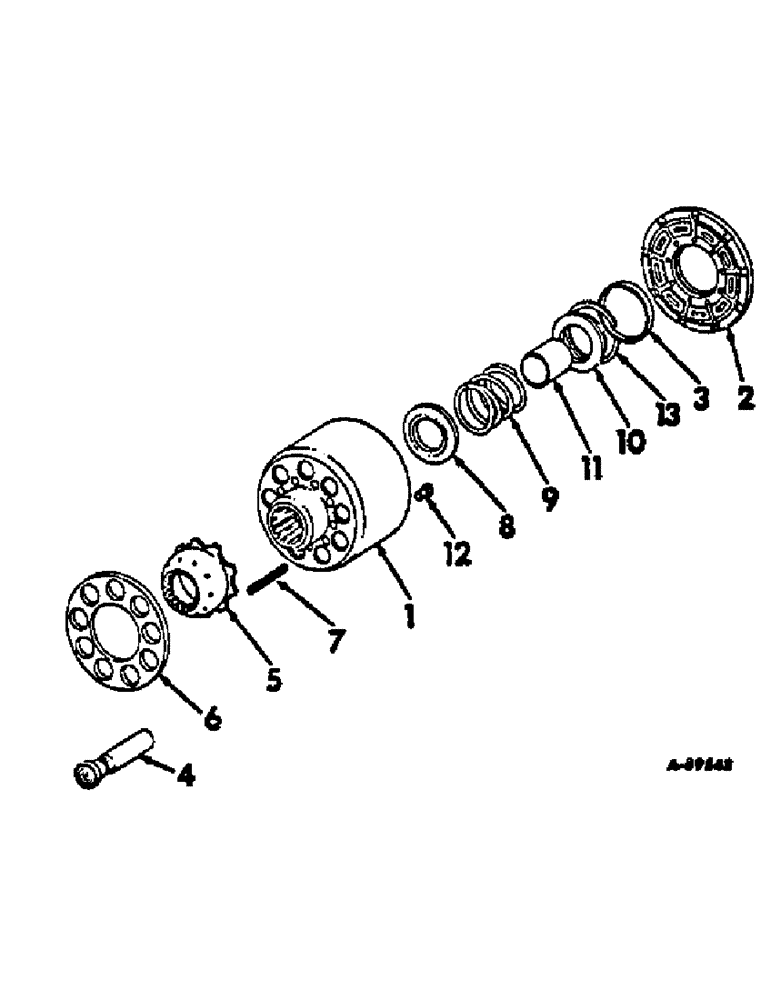

Схема запчастей Case IH 2500 - (07-016) - MOTOR CYLINDER BLOCK (04) - Drive Train
10
9
1
12
2
5
6
8
4
11
13
3
7

Артикул

Название

Примечание

Количество

1

67821C1

BLOCK

ASSY, CYLINDER

1шт.

1

405134R1

SPARE PART ASSY, CYLINDER

1шт.

ON ORDERS FOR BLOCK 405134R1 FURNISH BLOCK 67821C1 W/ SPRING 67822C1

1шт.

2

405141R1

PLATE

BEARING

1шт.

3

405140R1

RING

PILOT, BEARING PLATE

1шт.

4

538703R1

PISTON

ASSY

9шт.

5

405132R1

GUIDE

SLIPPER RETAINER

1шт.

6

405133R1

RETAINER

SLIPPER

1шт.

7

67822C1

SPRING

RETAINER -USE W/ SIX SPRING BLOCK-

6шт.

7

405135R1

SPRING

RETAINER -USE W/ NINE SPRING BLOCK

9шт.

8

405136R1

SEAT

SPRING

1шт.

9

532303R1

SPRING

CYLINDER BLOCK

1шт.

10

405139R1

RETAINER

SPRING

1шт.

11

405137R1

GUIDE

SPRING

1шт.

12

394196R1

NO LONGER SERVICED

PIN, PISTON CYLINDER

1шт.

13

558383R1

SNAP RING,#250, 2.606, Int, Spiral

INTERNAL RETAINING SPIROLOX

1шт.

Выбрано товаров: 16
