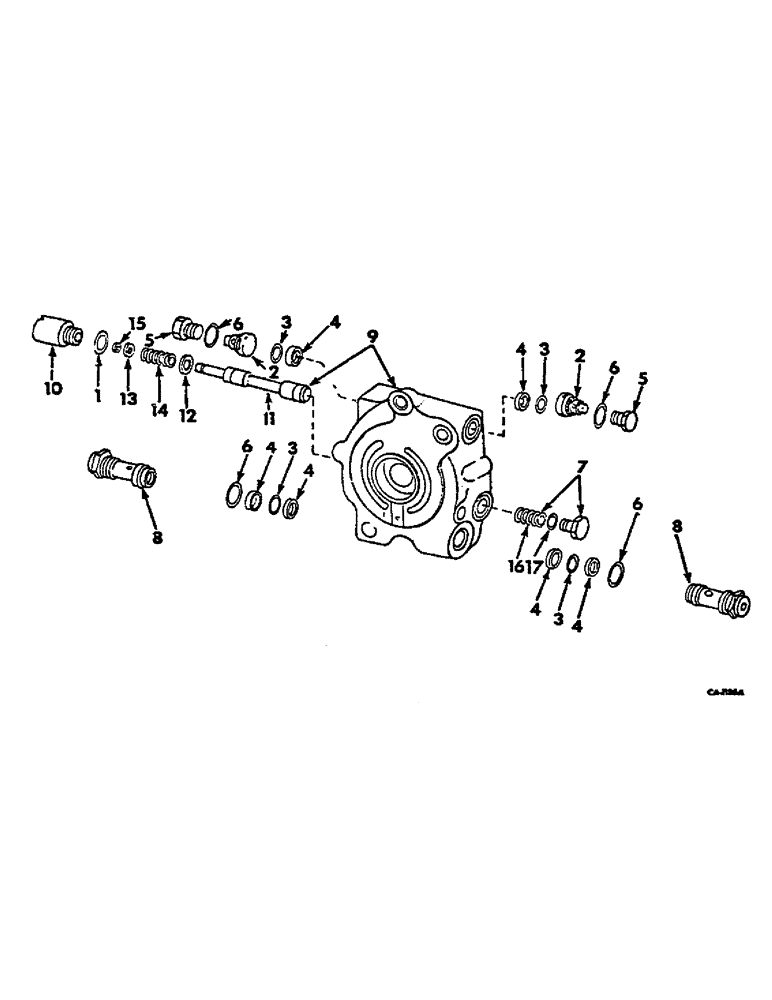

Запчасти Case IH 2500 (07-015) - CENTER SECTION VALVE (04) - Drive Train

BODY, W/VALVES CENTRE SECTION

1шт.

1

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

2

528778R1

CHECK VALVE

ASSY, -OPTIONAL W/528345R1-

2шт.

2

528345R1

CHECK VALVE

ASSY, -OPTIONAL W/528778R1-

2шт.

3

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3/16 X 1 X 3/32 CHECK VALVE

4шт.

4

393887R1

BACK-UP RING

CHECK VALVE

6шт.

5

400988R1

PLUG

1-3/16 - 12 STR THD-O-RING BOSS

2шт.

6

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD TUBE CHECK VALVE

4шт.

7

533356R11

PLUG

ASSY, SHUTTLE VALVE SPRING

1шт.

8

531770R1

VALVE

ASSY, RELIEF

2шт.

9

400987R92

BODY

ASSY, CENTRE SECTION -CONSISTS OF

1шт.

BODY

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

PLUG

2шт.

PLUG

1шт.

533356R11

PLUG

1шт.

396067R1

PLUG

1шт.

396066R1

SNAP RING,#46, .433", Ext

1шт.

531079R1

SPRING

1шт.

533357R1

SPRING

1шт.

VALVE

1шт.

396063R2

WASHER

1шт.

396064R2

WASHER

1шт.

10

396067R1

PLUG

SHUTTLE VALVE SPRING RETAINER

1шт.

11

406379R1

VALVE

CENTER SECTION SHUTTLE -CODE A-

1шт.

11

406380R1

VALVE

CENTER SECTION SHUTTLE -CODE B-

1шт.

11

406381R1

VALVE

CENTER SECTION SHUTTLE -CODE C-

1шт.

11

406382R1

VALVE

CENTER SECTION SHUTTLE -CODE D-

1шт.

11

406383R1

VALVE

SPARE PART CENTER SECTION SHUTTLE -CODE E-

1шт.

11

406384R1

VALVE

CENTER SECTION SHUTTLE -CODE F-

1шт.

12

396063R2

WASHER

SHUTTLE VALVE INNER

1шт.

13

396064R2

WASHER

SHUTTLE VALVE OUTER

1шт.

14

531079R1

SPRING

SHUTTLE VALVE CENTERING

1шт.

15

396066R1

SNAP RING,#46, .433", Ext

RING, SHUTTLE VALVE SNAP

1шт.

16

533357R1

SPRING

SHUTTLE VALVE CENTERING

1шт.

17

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

393885R91

GASKET KIT

PACKAGE, RELIEF VALVE SEAL -CONSISTS OF REF NOS 3, 4 AND 6- , ARE NOT ILLUSTRATED

1шт.
