Запчасти Case IH 2500 (14-08) - FRONT WHEEL HUB, BEARINGS & CAP, 2500 S/N 100026 & UP, ADJ. FRONT AXLE H/DUTY, HIGH & LOW SPINDLE Suspension

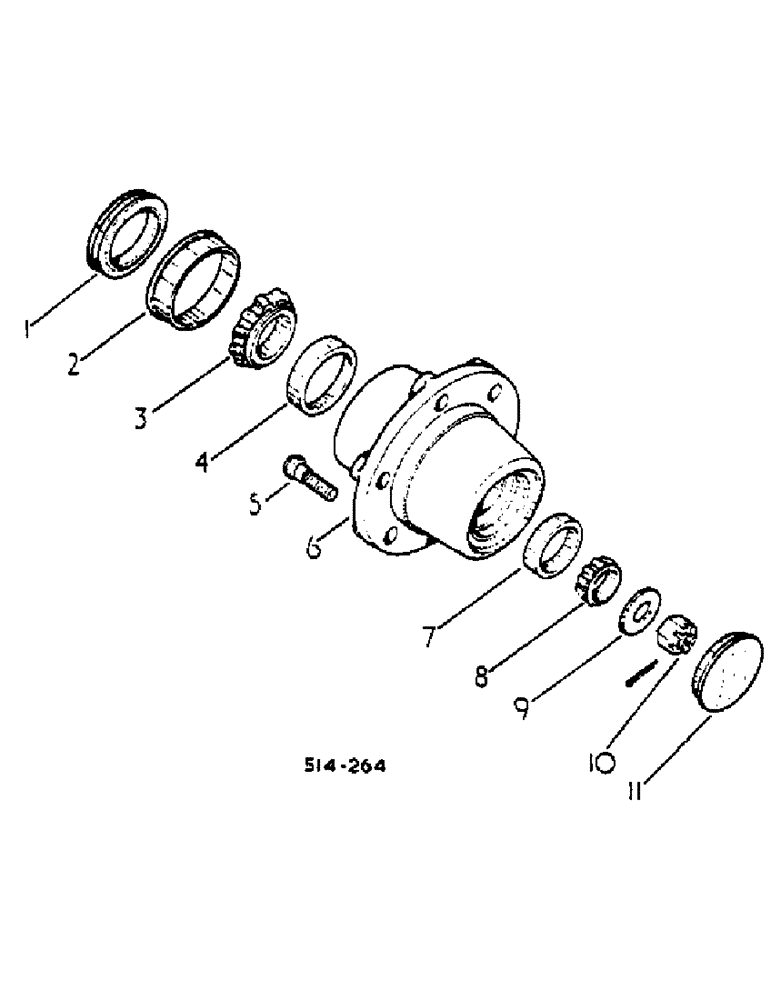

Схема запчастей Case IH 2500 - (14-08) - FRONT WHEEL HUB, BEARINGS & CAP, 2500 S/N 100026 & UP, ADJ. FRONT AXLE H/DUTY, HIGH & LOW SPINDLE Suspension
5
7
2
6
3
1
4
8
11
10
9

Артикул

Название

Примечание

Количество

1

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

FRONT WHEEL DUST

2шт.

1

372438R91

SEAL ASSY.

FRONT WHEEL DUST

2шт.

1

372474R91

SEAL ASSY.

FRONT WHEEL DUST

2шт.

1

69761C1

SEAL

FRONT WHEEL DUST -OPTIONAL-

2шт.

2

67328C1

SEALING RING

SEALRING WEAR

2шт.

3

400987C91

BEARING ASSY,1.7817" ID x 2.892" OD x 0.77, 0.62"

ASSY, INNER

2шт.

3

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

ASSY, INNER -OPTIONAL-

2шт.

4

400988C1

BEARING, CUP

Inner

2шт.

4

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

INNER - OPTIONAL-

2шт.

5

528803R1

BOLT,1/2" - 20 x 1.75"

Mounting

12шт.

6

67527C91

HUB ASSY.

FRONT WHEEL

2шт.

7

538491R1

BEARING, CUP

Outer

2шт.

7

536054R1

BEARING CUP,60mm OD x 11.94mm W

OUTER CUP -OPTIONAL-

2шт.

8

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

ASSY, OUTER

2шт.

8

538492R91

BEARING CONE

ASSY, OUTER -OPTIONAL-

2шт.

9

67537C1

WASHER

OUTER BEARING RETAINER

2шт.

10

427639

SLOTTED NUT,3/4"-16, G5

3/4-16 SLT HEX

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

2шт.

11

612884R1

HUB CAP

FRONT WHEEL HUB

2шт.

Выбрано товаров: 19
