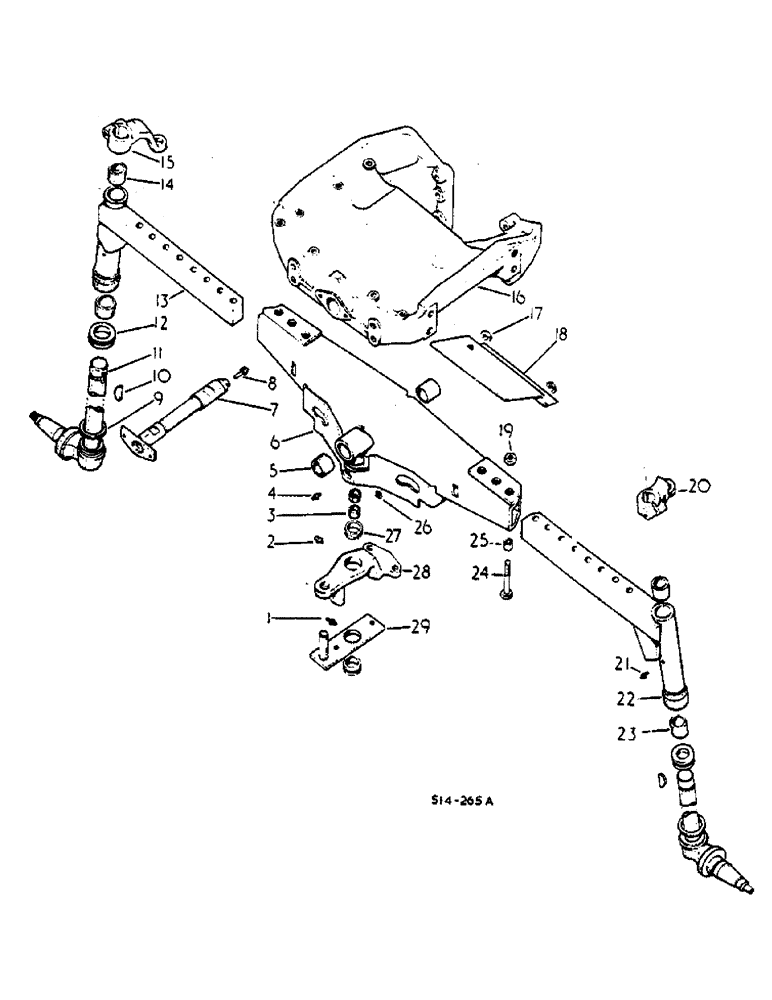

Запчасти Case IH 2500 (14-06) - FRONT AXLE, STRAIGHT, HEAVY DUTY Suspension

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

1шт.

3

405574R1

BUSHING

SUPPORT

2шт.

4

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING 1/4 65 DEG ANGLE DRIVE TYPE

1шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

PIVOT

2шт.

6

3116435R91

FRONT AXLE

ASSY

1шт.

7

539128R1

SHAFT ASSY.

FRONT AXLE PIVOT

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

8

273352

SCREW

LUBRICATOR FITTING 1/8-27 PTF 90 DEG ANGLE LUB

1шт.

9

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt

2шт.

10

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

11

67535C91

KNUCKLE

ASSY. STEERING, -LOW SPINDLE-

2шт.

11

67526C91

KNUCKLE

ASSY. STEERING -HIGH SPINDLE-

2шт.

12

405831R91

BEARING

STEERING KNUCKLE THRUST

2шт.

12

369131R91

THRUST BEARING

STEERING KNUCKLE THRUST

2шт.

12

527295R91

THRUST BEARING,44.45mm ID x 68.4mm OD x 17.6mm W

STEERING KNUCKLE THRUST -OPTIONAL-

2шт.

13

3116437R91

EXTENSION ASSY.

FRONT AXLE R.H. -HIGH SPINDLE-

1шт.

13

3116580R91

EXTENSION ASSY.

FRONT AXLE R.H. -HIGH SPINDLE-

1шт.

14

376099R1

BUSHING

2шт.

15

67525C1

ARM

STEERING KNUCKLE RH

1шт.

102637

NUT,1/2"-13, G5

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

16

405587R4

BOLSTER

FRONT

1шт.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8-11 X 2-1/2 HEX HD CAP

4шт.

24970R1

BOLT

5/8-11 x 2-1/2 Twelve pt flange, Optional

4шт.

396627R1

STUD

FRONT CRANKCASE

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

17

534813R1

SPACER

BOLSTER AIR BAFFLE

2шт.

18

534812R1

BAFFLE

BOLSTER AIR

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8-11 X 3-1/4 HEX HD CAP

2шт.

369936R1

WASHER

BOLSTER AIR BAFFLE

2шт.

19

405576R1

NUT

FRONT AXLE

4шт.

20

67524C1

ARM

STEERING KNUCKLE L.H.

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

102637

NUT,1/2"-13, G5

1шт.

21

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING 1/4 DRIVE TYPE STR LUB

2шт.

22

3116436R91

EXTENSION ASSY.

FRONT AXLE L.H. -HIGH SPINDLE-

1шт.

22

3116579R91

EXTENSION ASSY.

FRONT AXLE L.H.

1шт.

23

376099R1

BUSHING

2шт.

24

271465

FLEXIBLE HOSE

SCREW 3/4-16 X 4-3/4 HEX HD CAP

6шт.

25

539569R1

BUSHING

SPACER

6шт.

26

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

1шт.

27

379748R1

BUSHING

2шт.

28

67499C91

ARM ASSY.

P.S. CENTRE

1шт.

29

405580R11

BAR ASSY.

PC CYL

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

67696C1

RIM

SPARE PART STRIP, STEERING CENTRE ARM

1шт.
