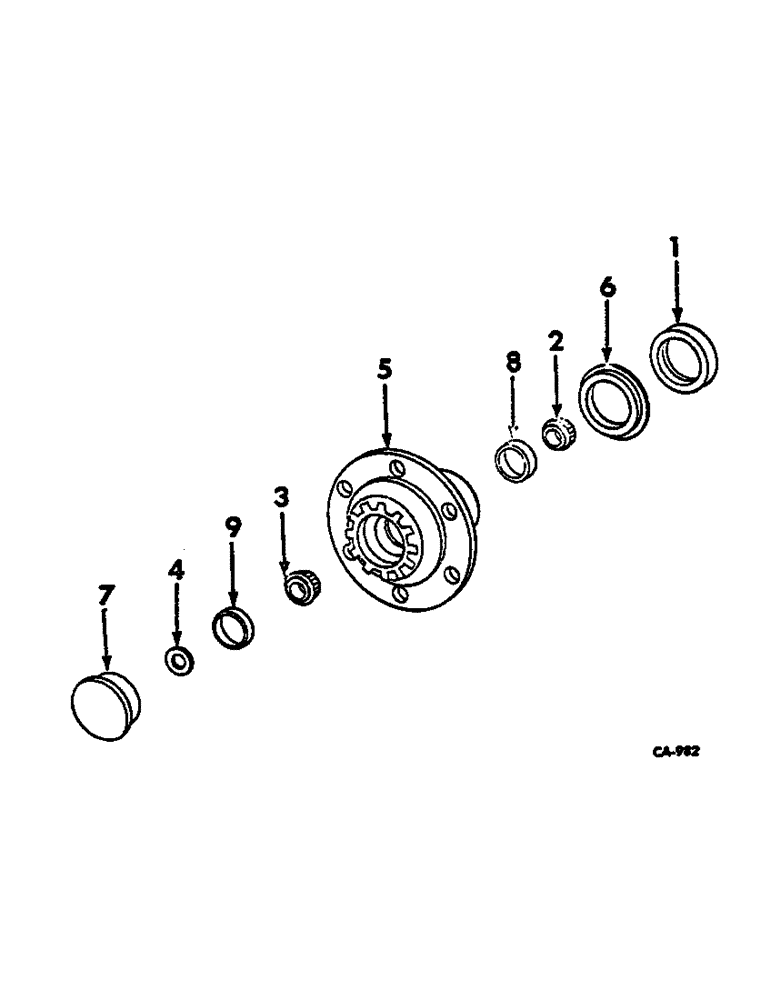

Запчасти Case IH 2500 (14-05) - FRONT WHEEL HUB, BEARINGS AND CAP, ADJUSTABLE FRONT AXLE STRAIGHT Suspension

1

405835R91

SEAL

FRONT WHEEL DUST -OPTIONAL W/48539DA AND 530104R91-

2шт.

1

530104R91

SEAL

FRONT WHEEL DUST -OPTIONAL W/48539DA AND 405835R91-

2шт.

2

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

ASSY, INNER -OPTIONAL W/371897R91-

2шт.

2

371897R91

BEARING ASSY,1.315" ID x 2.5625" OD x 0.72"

ASSY, INNER -OPTIONAL W/618023R91-

2шт.

3

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, Outer -Optional w/371907R91-

2шт.

3

371907R91

ROLLER BEARING,0.8437" ID x 1.9687" OD x 0.72"

ASSY, OUTER CONE -OPTIONAL W/371882R91-

2шт.

4

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

OUTER BEARING RETAINER

2шт.

427639

SLOTTED NUT,3/4"-16, G5

3/4-16 SLT-HEX

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

2шт.

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt

2шт.

5

406294R11

HUB

ASSY, FRONT WHEEL

2шт.

6

406295R2

RING

WEAR

2шт.

7

612884R1

HUB CAP

FRONT WHEEL HUB

2шт.

8

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner - Optional W/371898R1

2шт.

8

371898R1

BEARING, CUP

Inner, Optional w/618024R1

2шт.

9

371883R1

BEARING CUP

Outer - Optional W/371908R1-

2шт.

9

371908R1

BEARING CUP

Outer - Optional w/371883R1-

2шт.
