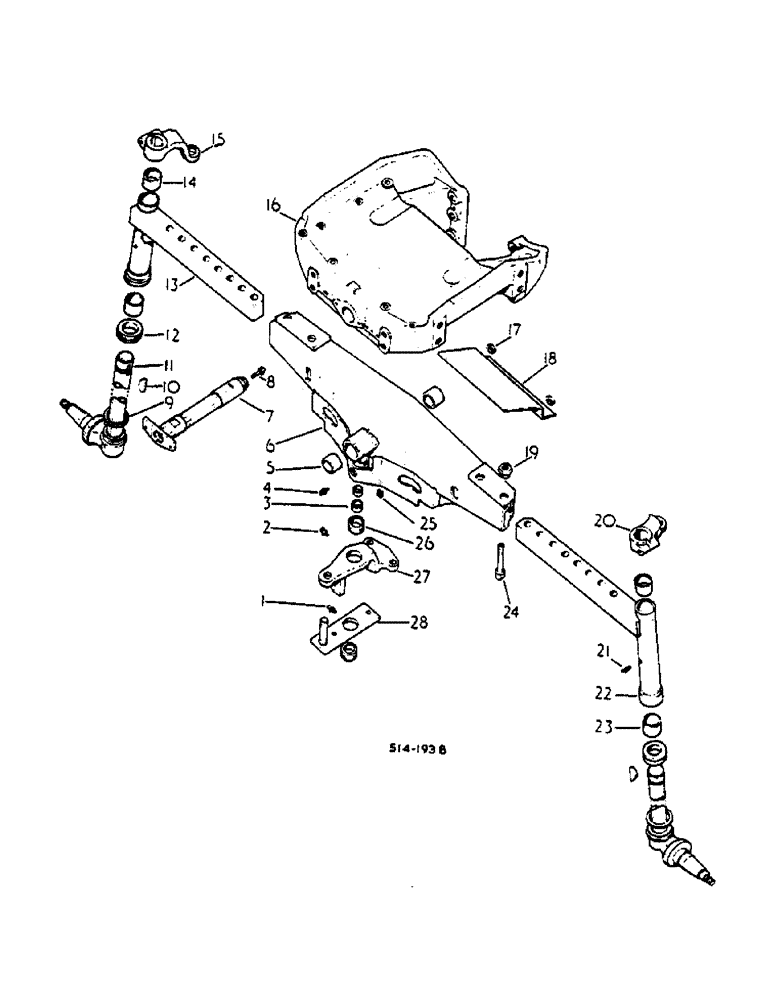

Запчасти Case IH 2500 (14-02) - ADJUSTABLE FRONT AXLE, STRAIGHT, HIGH SPINDLE, LOW SPINDLE Suspension

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

1шт.

3

405574R1

BUSHING

SUPPORT

2шт.

4

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING 1/4 65 DEG ANGLE DRIVE TYPE

1шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

PIVOT

2шт.

6

539161R91

AXLE

ASSY, FRONT

1шт.

6

527790R91

CENTER AXLE

ASSY, FRONT

1шт.

ON ORDERS FOR AXLE 527790R91, FURNISH AXLE 539161R91 TOGETHER W/SHAFT 539128R1, FITTING 273352 AND TWO SCREW 179883.

1шт.

7

539128R1

SHAFT ASSY.

FRONT AXLE PIVOT

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

8

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING 1/8-27 PTF 90 DEG ANGLE LUB

1шт.

9

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt

2шт.

10

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

11

405840R12

KNUCKLE

ASSY. STEERING -LOW SPINDLE-

2шт.

11

527292R91

STEERING KNUCKLE

ASSY, -HIGH SPINDLE-

2шт.

11

67526C91

KNUCKLE

ASSY. STEERING, 2500, Start Serial: 100026

2шт.

12

405831R91

BEARING

STEERING KNUCKLE THRUST -OPTIONAL W/527295R91-

2шт.

12

527292R91

STEERING KNUCKLE

STEERING KNUCKLE THRUST -OPTIONAL W/405831R91-

2шт.

13

67533C91

EXTENSION ASSY.

FRONT AXLE RH, -LOW SPINDLE-

1шт.

13

67531C91

EXTENSION

ASSY, FRONT AXLE RH, -HIGH SPINDLE-

1шт.

13

66723C92

EXTENSION ASSY, FRONT AXLE RH, -INDUSTRIAL TRACTORS-

1шт.

14

376099R1

BUSHING

2шт.

15

67525C1

ARM

STEERING KNUCKLE RH, 574, Start Serial: 101693

2шт.

15

67525C1

ARM

STEERING KNUCKLE RH, 2500, Start Serial: 100026

2шт.

15

527802R1

ARM

STEERING KNUCKLE RH, 574, Serial Range: -101692

1шт.

15

527802R1

ARM

STEERING KNUCKLE RH, 2500, Serial Range: -100025

1шт.

102637

NUT,1/2"-13, G5

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

16

405587R4

BOLSTER

FRONT

1шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

5/8-11 X 2-1/2 HEX HD CAP -OPTIONAL W/24970R1-

4шт.

24970R1

BOLT

5/8-11 x 2-1/2 Twelve pt flange

4шт.

396627R1

STUD

FRONT CRANKCASE

2шт.

425-1110

NUT,5/8"-18, G5

2шт.

17

534813R1

SPACER

BOLSTER AIR BAFFLE

2шт.

18

534812R1

BAFFLE

BOLSTER AIR

1шт.

271567

BRACKET,Hex, 5/8" - 11 x 3 1/4", Gr 5

5/8-11 X 3-1/4 HEX HD CAP

2шт.

369936R1

WASHER

BOLSTER AIR BAFFLE

2шт.

19

405576R1

NUT

FRONT AXLE

4шт.

20

67524C1

ARM

STEERING KNUCKLE LH, 574, Start Serial: 101693

1шт.

20

67524C1

ARM

STEERING KNUCKLE LH, 2500, Start Serial: 100026

1шт.

20

527801R1

ARM

SPARE PART STEERING KNUCKLE LH, 574, Serial Range: -101692

1шт.

20

527801R1

ARM

SPARE PART STEERING KNUCKLE LH, 2500, Serial Range: -100025

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

102637

NUT,1/2"-13, G5

1шт.

21

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING 1/4 DRIVE TYPE STR LUB

2шт.

22

67532

ROD

EXTENSION ASSY, FRONT AXLE LH -LOW SPINDLE-

1шт.

22

67530C91

EXTENSION

ASSY, FRONT AXLE LH -HIGH SPINDLE-

1шт.

22

66722C92

EXTENSION ASSY, FRONT AXLE LH -INDUSTRIAL TRACTORS-

1шт.

23

376099R1

BUSHING

2шт.

24

14-1276

SCREW,Hex, 3/4 - 16 x 4 3/4", Gr 5

3/4-16 X 4-3/4 HEX HD CAP

4шт.

539569R1

BUSHING

SPACER

4шт.

24

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder -Optional-

4шт.

25

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

1шт.

26

379748R1

BUSHING

2шт.

27

67499C91

ARM ASSY.

PS CENTRE, 574, Start Serial: 101693

1шт.

27

67499C91

ARM ASSY.

PS CENTRE, 2500, Start Serial: 100026

1шт.

27

405585R11

ARM

ASSY, PS CENTRE, 574, Serial Range: -101692

1шт.

27

405585R11

ARM

ASSY, PS CENTRE, 2500, Serial Range: -200025

1шт.

28

405580R11

BAR ASSY.

PS CYL

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

574, Serial Range: -100230

2шт.

103323

LOCK WASHER,1/2"

2500, Serial Range: -100001

2шт.

67976C1

PLATE, LOCKING

STRIP STEERING CENTRE ARM BOLT LOCK, 574, Start Serial: 100231

1шт.

67976C1

PLATE, LOCKING

STRIP STEERING CENTRE ARM BOLT LOCK , 2500, Start Serial: 100002

1шт.

405578R1

PLATE

FRONT AXLE PIVOT PIN LOCK , NOT ILLUSTRATED, Serial Range: -03867

1шт.

ON ORDERS FOR AXLE 527790R91, FURNISH AXLE 539161R91 TOGETHER W/SHAFT 539128R1, FITTING 273352 AND TWO SCREW 179883.

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

574, Not Illustrated, Serial Range: -3867

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2500, Not Illustrated, Serial Range: -518

1шт.
