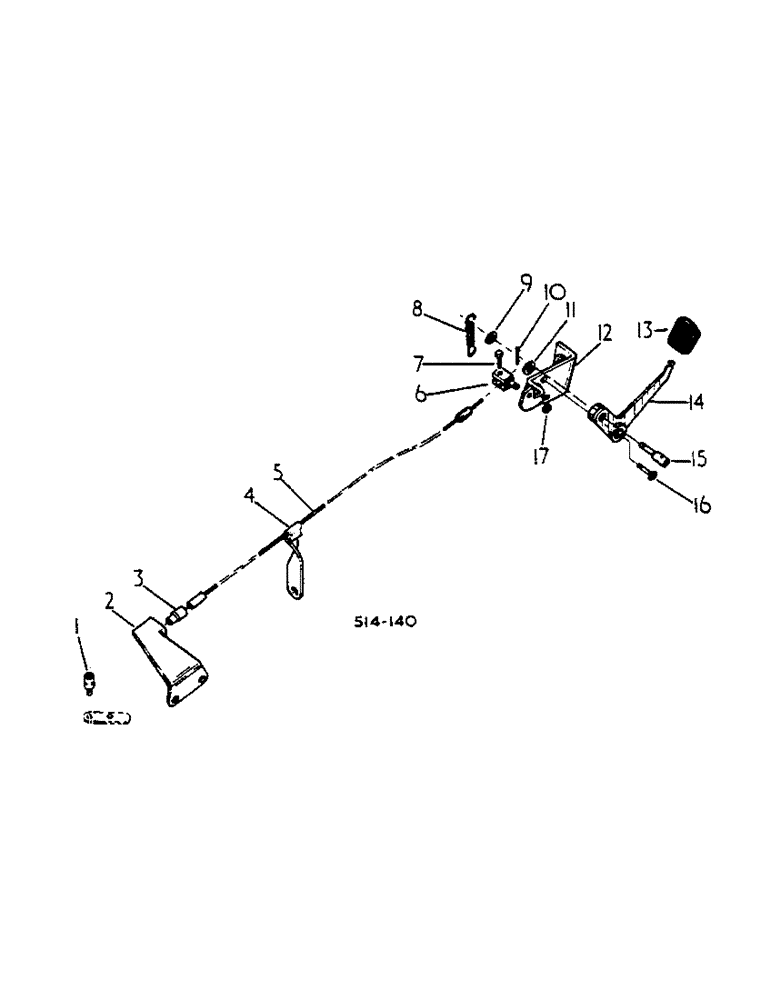

Запчасти Case IH 2500 (12-017) - FUEL SHUTOFF CONTROLS, CAV INJECTION, BOSCH INJECTION Power

1

396388R1

PIVOT

FUEL SHUTOFF LEVER SWIVEL

1шт.

103361

PIN, SPLIT (COTTER)

PIN, COTTER 1/16 X 1/2

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

8-32 X 3/8 SLT-FIL-HD

1шт.

446179

WASHER,#12

1/4 X 1/2 X .036

1шт.

2

3112808R1

BRACKET

FUEL SHUTOFF CABLE SUPPORT

1шт.

181309

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

BOLT 1/4-28 UNF X .050

2шт.

103319

LOCK WASHER,1/4"

CAV Injection

2шт.

3

677516R1

BUSHING

FUEL SHUTOFF CONTROL CABLE

1шт.

4

531337R1

CLIP

CLIP, FUEL SHUTOFF CONTROL CABLE

1шт.

5

529001R1

CABLE

FUEL SHUTOFF CONTROL -BOSCH INJECTION CR PUMP-

1шт.

5

3112807R1

FLEXIBLE CABLE

CABLE, FUEL SHUTOFF CONTROL -CAV INJECTION-

1шт.

6

534621R1

CLAMP

CABLE SWIVEL

1шт.

107761

COTTER PIN,1/16" x 5/8"

1шт.

453284

NUT,#10-32

10/32 HEX MACH SCREW

1шт.

120217

LOCK WASHER,#10

1шт.

7

454065

SCREW,Hex Hd, #10-32 x 3/4"

10/32 X 3/4 HEX HD MACH

1шт.

8

528998R2

SPRING

FUEL SHUTOFF CONTROL CABLE

1шт.

9

528999R1

CIRCLIP

RETAINER, FUEL SHUTOFF CONTROL CABLE SPRING -OPTIONAL W/531714R1-

1шт.

9

531714R1

CIRCLIP

RETAINER, FUEL SHUTOFF CONTROL CABLE SPRING -OPTIONAL W/528999R1-

1шт.

10

648002

KNIFE

1/8" x 3/4"

1шт.

11

469668R1

WASHER

3/8 X 13/32 X .060

1шт.

12

528992R1

BRACKET

ASSY, FUEL SHUTOFF LEVER

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

13

528996R1

KNOB

FUEL SHUTOFF CONTROL CABLE

1шт.

14

531335R1

ARM ASSY.

FUEL SHUTOFF CONTROL

1шт.

131974

SCREW,Sl Fil Hd, #8 - 32 x 5/8"

SPARE PART 8/32 X 5/8 SLT-FIL-HD

1шт.

15

528997R1

BRACKET, PIVOT

PIVOT BRACKET SWIVEL, FUEL SHUTOFF CONTROL CABLE

1шт.

16

23369R1

HEADED PIN,3/8" x 7/8"

1шт.

17

446178R1

WASHER 1/4 X 1/2 X .036

1шт.
