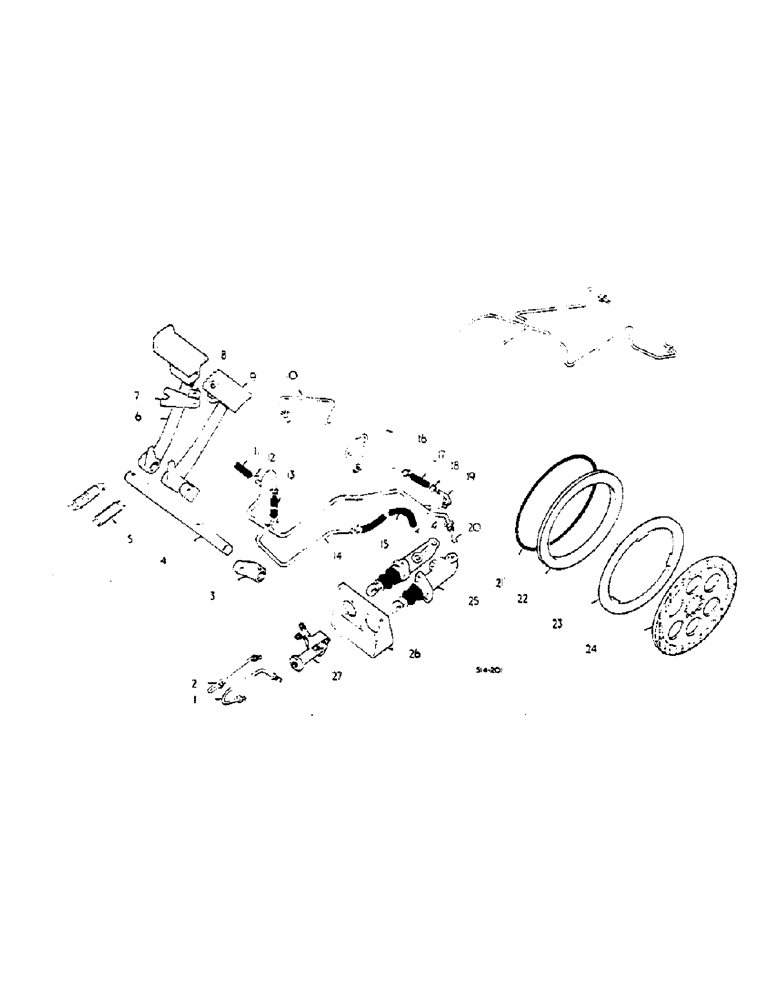

Запчасти Case IH 2500 (04-02) - BRAKES, 574 UP TO S/N 9760 , 2500 UP TO S/N 593 (5.1) - BRAKES

1

530851R1

TUBE

ASSY, EQUALIZER LH

1шт.

2

530852R1

TUBE

ASSY, EQUALIZER RH

1шт.

3

529858R1

ARM

SPARE PART RH BRAKE PEDAL

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

5/16" x 1 1/2", Coiled

1шт.

4

527320R1

SHAFT

PEDAL SUPPORT

1шт.

5

539556R1

SPRING

BRAKE PEDAL RETURN

2шт.

6

399741R2

PEDAL

RH BRAKE

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

1шт.

399744R1

BOLT

BOLT, BRAKE PEDAL ADJUSTING

2шт.

103321

LOCK WASHER,3/8"

2шт.

103026

NUT,3/8"-24, G5

2шт.

7

43751DB

LATCH, PEDALS

BRAKE PEDAL LOCK

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 X 1-1/4 SMALL B-HD SOLID

1шт.

8

51239D

SPRING, BRAKE PEDAL LOCK TENSION

1шт.

9

537095R11

PEDAL ASSY.

LH BRAKE

1шт.

443570

LUBE NIPPLE,65 Degree, 1/4" NPT x .77" lg, Drive

1/4 65 DEG ANGLE DRIVE TYPE LUB

1шт.

10

529603R1

PIPE FITTING

TUBE ASSY, BRAKE LH

1шт.

11

530127R1

HOSE,0.31" ID x 1.70"

Brake Reservoir Inlet

1шт.

ON ORDERS FOR TUBES 530126R1, 531529R1, 530128R1, OR HOSES 530127R1, 537612R1 OR 530130R1, FURNISH ALL THE FOLLOWING, 2 TUBE 66367C1, 2 STRAP 289862C1, 2 HOSE 66368C1, 4 CLAMP 534421R1, 1 TUBE 66369C1, 1 SCREW 172292, 1 HOSE 66372C1, 1 CLAMP 66379C1, 1 SCREW 180034, 1 SPACER 61401V, 1 WASHER 120380, 1 NUT 120375 AND 1 BATTERY TRAY MOULDING EDGE 3113841R1

1шт.

537849R2

SCREEN

ORIFICE ASSY

1шт.

12

530126R1

TUBE

ASSY, BRAKE KEEP FULL RESERVOIR

1шт.

ON ORDERS FOR TUBES 530126R1, 531529R1, 530128R1, OR HOSES 530127R1, 537612R1 OR 530130R1, FURNISH ALL THE FOLLOWING, 2 TUBE 66367C1, 2 STRAP 289862C1, 2 HOSE 66368C1, 4 CLAMP 534421R1, 1 TUBE 66369C1, 1 SCREW 172292, 1 HOSE 66372C1, 1 CLAMP 66379C1, 1 SCREW 180034, 1 SPACER 61401V, 1 WASHER 120380, 1 NUT 120375 AND 1 BATTERY TRAY MOULDING EDGE 3113841R1

1шт.

537518R1

SCREEN

ORIFICE ASSY

1шт.

13

537612R1

HOSE

BRAKE RESERVOIR OVERFLOW

1шт.

ON ORDERS FOR TUBES 530126R1, 531529R1, 530128R1, OR HOSES 530127R1, 537612R1 OR 530130R1, FURNISH ALL THE FOLLOWING, 2 TUBE 66367C1, 2 STRAP 289862C1, 2 HOSE 66368C1, 4 CLAMP 534421R1, 1 TUBE 66369C1, 1 SCREW 172292, 1 HOSE 66372C1, 1 CLAMP 66379C1, 1 SCREW 180034, 1 SPACER 61401V, 1 WASHER 120380, 1 NUT 120375 AND 1 BATTERY TRAY MOULDING EDGE 3113841R1

1шт.

14

530128R1

SPARE PART BRAKE RESERVOIR DUMP

1шт.

ON ORDERS FOR TUBES 530126R1, 531529R1, 530128R1, OR HOSES 530127R1, 537612R1 OR 530130R1, FURNISH ALL THE FOLLOWING, 2 TUBE 66367C1, 2 STRAP 289862C1, 2 HOSE 66368C1, 4 CLAMP 534421R1, 1 TUBE 66369C1, 1 SCREW 172292, 1 HOSE 66372C1, 1 CLAMP 66379C1, 1 SCREW 180034, 1 SPACER 61401V, 1 WASHER 120380, 1 NUT 120375 AND 1 BATTERY TRAY MOULDING EDGE 3113841R1

1шт.

15

530130R1

SPARE PART BRAKE RESERVOIR DUMP

1шт.

ON ORDERS FOR TUBES 530126R1, 531529R1, 530128R1, OR HOSES 530127R1, 537612R1 OR 530130R1, FURNISH ALL THE FOLLOWING, 2 TUBE 66367C1, 2 STRAP 289862C1, 2 HOSE 66368C1, 4 CLAMP 534421R1, 1 TUBE 66369C1, 1 SCREW 172292, 1 HOSE 66372C1, 1 CLAMP 66379C1, 1 SCREW 180034, 1 SPACER 61401V, 1 WASHER 120380, 1 NUT 120375 AND 1 BATTERY TRAY MOULDING EDGE 3113841R1

1шт.

16

529604R1

TUBE

ASSY, BRAKE RH

1шт.

17

530127R1

HOSE,0.31" ID x 1.70"

Brake Reservoir Inlet

1шт.

ON ORDERS FOR TUBES 530126R1, 531529R1, 530128R1, OR HOSES 530127R1, 537612R1 OR 530130R1, FURNISH ALL THE FOLLOWING, 2 TUBE 66367C1, 2 STRAP 289862C1, 2 HOSE 66368C1, 4 CLAMP 534421R1, 1 TUBE 66369C1, 1 SCREW 172292, 1 HOSE 66372C1, 1 CLAMP 66379C1, 1 SCREW 180034, 1 SPACER 61401V, 1 WASHER 120380, 1 NUT 120375 AND 1 BATTERY TRAY MOULDING EDGE 3113841R1

1шт.

18

534421R1

HOSE CLAMP

WORM

8шт.

18

279025R1

HOSE CLAMP

NO. 6 TYPE

8шт.

18

3112550R1

CLAMP

SCREW TYPE HOSE

8шт.

18

20894R1

NO LONGER SERVICED

CLAMP, 5/8 TYPE D SCREW TYPE HOSE-OPTIONAL

8шт.

19

531529R1

SPARE PART ASSY, BRAKE RESERVOIR RH

1шт.

ON ORDERS FOR TUBES 530126R1, 531529R1, 530128R1, OR HOSES 530127R1, 537612R1 OR 530130R1, FURNISH ALL THE FOLLOWING, 2 TUBE 66367C1, 2 STRAP 289862C1, 2 HOSE 66368C1, 4 CLAMP 534421R1, 1 TUBE 66369C1, 1 SCREW 172292, 1 HOSE 66372C1, 1 CLAMP 66379C1, 1 SCREW 180034, 1 SPACER 61401V, 1 WASHER 120380, 1 NUT 120375 AND 1 BATTERY TRAY MOULDING EDGE 3113841R1

1шт.

20

537849R2

SCREEN

ORIFICE ASSY

1шт.

21

343932R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

10 X 10-1/4 X 1/8 BRAKE PISTON

2шт.

22

399737R1

NO LONGER SERVICED

PISTON, BRAKE

2шт.

23

399736R1

RING

BRAKE

2шт.

24

399734R1

NO LONGER SERVICED

DISC, BRAKE CENTRE

2шт.

25

527542R91

CYLINDER

ASSY, BRAKE MASTER

2шт.

26

529582R1

BRACKET

ASSY, BRAKE CYL MOUNTING -SYNCHROMESH DRIVE TRACTORS-, Start Serial: 004650

1шт.

INCLUDING 4299, 4474, 4623, 4624, 4625, 4695 TO4705, 4707, 4708, 4709, 4711, 4712, 4713, 4715, 4716, 4718 TO 4730, 4733 TO 4781, 4783 TO 4788, 4790, 4791, 4793, 4795 TO 4810, 4816, 4824 TO 4852 2500A 000527/UP

1шт.

26

530927R1

SPARE PART ASSY, BRAKE CYL MOUNTING -SYNCHROMESH DRIVE TRACTORS-, Serial Range: -004649

1шт.

EXCLUDING 4299, 4474, 4623, 4624, 4625, 4695 TO 4705, 4707 TO 4709, 4711 TO 4713, 4715, 4716, 4718 TO 4730, 4733 TO 4781, 4783 TO 4788, 4790, 4791, 4793, 4795 TO 4810, 4816, 4824 TO 4852 INCLUDING UP TO/2500A 000526

1шт.

103321

LOCK WASHER,3/8"

3шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

425-115

NUT,5/16"-24, G5

4шт.

103320

LOCK WASHER,5/16"

4шт.

26

527545R1

BRACKET

ASSY, BRAKE CYL MOUNTING -HYDROSTATIC DRIVE TRACTORS-

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8-16 X 2-3/4 HEX HD CAP

2шт.

103321

LOCK WASHER,3/8"

2шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

103320

LOCK WASHER,5/16"

4шт.

425-115

NUT,5/16"-24, G5

4шт.

27

530374R92

VALVE

ASSY, BRAKE EQUALIZER

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

2шт.

384891R1

CLAMP

HYD TUBE , NOT ILLUSTRATED

1шт.

557265R1

WASHER

11/32 X 1 X 11 GA , NOT ILLUSTRATED

1шт.

103320

LOCK WASHER,5/16"

Not Illustrated

1шт.

9635082

NUT,5/16" - 18, Gr 5

Not Illustrated

1шт.

68434C1

PACKAGE

EQUALIZER VALVE O-RING AND SEAL SERVICE, NOT ILLUSTRATED

1шт.
