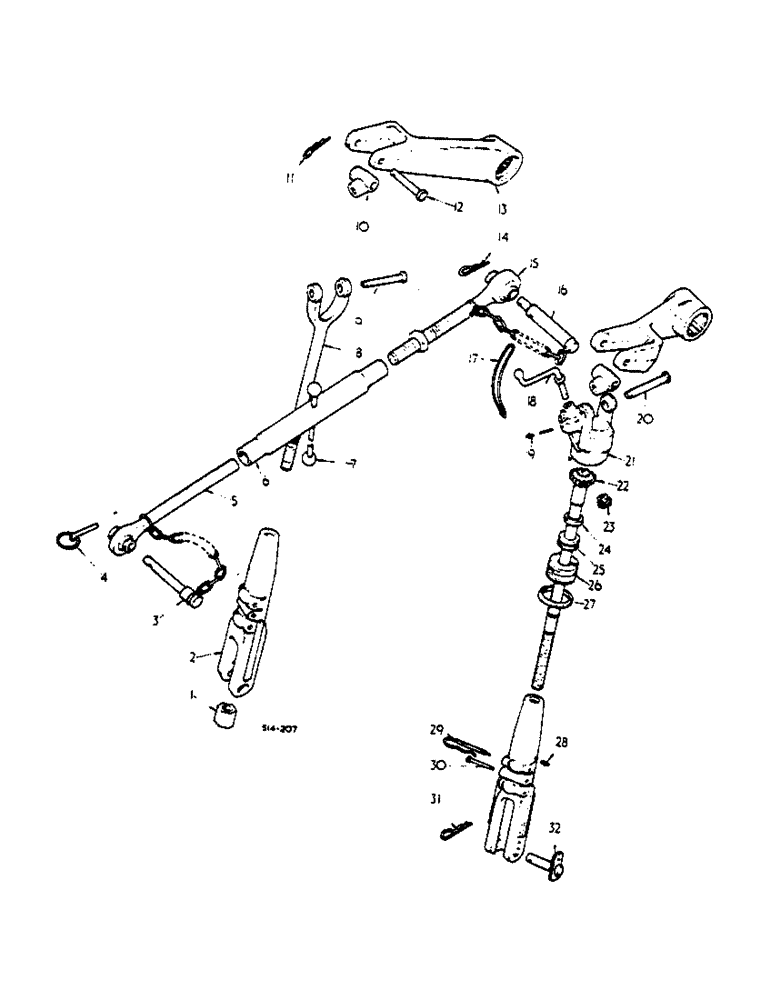

Запчасти Case IH 2500 (09-002) - THREE POINT HITCH, 574 S/N 102265 AND UP, 2500 S/N 100027 AND UP (12) - FRAME

1

527937R1

NUT

LIFT LINK

2шт.

2

402635R3

HOUSING

LIFT LINK YOKE

2шт.

3

528081R1

PIN ASSY.

UPPER LINK CAT. 1.

1шт.

4

533189R1

PIN

ASSY, IMPLEMENT

1шт.

5

527996R1

SCREW

SCREW ASSY, R.H. THREADED UPPER

1шт.

6

528003R1

TURNBUCKLE

1шт.

7

3048296R1

BUTTON

KNOB, TURNBUCKLE ROD

1шт.

8

527940R1

FORK

YOKE ASSY, LIFT L.H.

1шт.

9

3044309R1

PIN

5/8 X 3-1/2 STD

2шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

10

704207R3

PIVOT

SWIVEL, LEVELLING

2шт.

11

720631R1

LINCH PIN

ROCKSHAFT ARM COTTER

2шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND WITH OUTSIDE CHECK CHAINS.

1шт.

12

3044309R1

PIN

ROCKSHAFT ARM HD

2шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND WITH OUTSIDE CHECK CHAINS.

1шт.

13

402634R2

ROCKER ARM

ROCKSHAFT

2шт.

14

530049R1

CLIP, SPRING

PIN, LIFT LINK PIVOT Q.A.

1шт.

15

527994R1

SCREW

ASSY, L.H. THREAD UPPER

1шт.

272139

END PLATE

1-1/8-7 HEX LOCK

1шт.

16

528084R1

HITCH PIN

ASSY, UPPER LINK CAT. 11.

1шт.

17

3072424R1

SPRING

LEVELLING SCREW HANDLE

1шт.

18

527943R1

CRANK

HANDLE, LEVELLING SCREW

1шт.

19

109461

LUBE NIPPLE,1/8"-27 x .66 lg

PTF

1шт.

20

3069069R1

PIN

5/8 X 3-3/4 HARDENED

1шт.

21

3072422R2

HOUSING

LEVELLING SCREW

1шт.

22

527942R1

LOCK SCREW

LIFT R.H. LINK LEVELLING

1шт.

23

3069063R1

GEAR

PINION

1шт.

142506

LATCH

3/16" x 3/4", Type A

1шт.

24

3105187R1

COLLAR,25.4mm ID x 34.92mm OD x 7.92mm L

LEVELLING SCREW BRG

1шт.

25

3044346R91

BALL BEARING

LEVELLING SCREW

1шт.

25

3044347R91

THRUST BEARING

LEVELLING SCREW

1шт.

25

3044348R91

BEARING, THRUST

LEVELLING SCREW

1шт.

25

3068049R91

BALL BEARING

LEVELLING SCREW -OPTIONAL-

1шт.

26

3069064R1

BEARING

SCREW, BEARING LEVELLING

1шт.

27

3069065R1

LOCK NUT

LEVELLING SCREW BEARING

1шт.

28

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

2шт.

29

520174R11

LINCH PIN,7.92mm OD x 88.91mm L

ASSY, LIFT LINK LOCK

2шт.

30

270721C1

PIN

FLOAT STOP

2шт.

107762

WASHER,3/32" x 5/8"

2шт.

31

530049R1

CLIP, SPRING

PIN, LIFT LINK PIVOT PIN Q.A.

2шт.

32

527952R1

PIN ASSY.

LIFT LINK PIVOT

2шт.

528079R91

UPPER LINK

ASSY, NOT ILLUSTRATED

1шт.

530050R3

CLIP,ELECTRICAL

UPPER LINK STORAGE, NOT ILLUSTRATED

1шт.

391047R1

BOLT,Shldr, Hex, 3/8" - 16 x 1.18"

Shoulder, Not Illustrated

1шт.

23042R1

WASHER

17/32 X 1 X .030 FLAT C-Z, NOT ILLUSTRATED

1шт.
