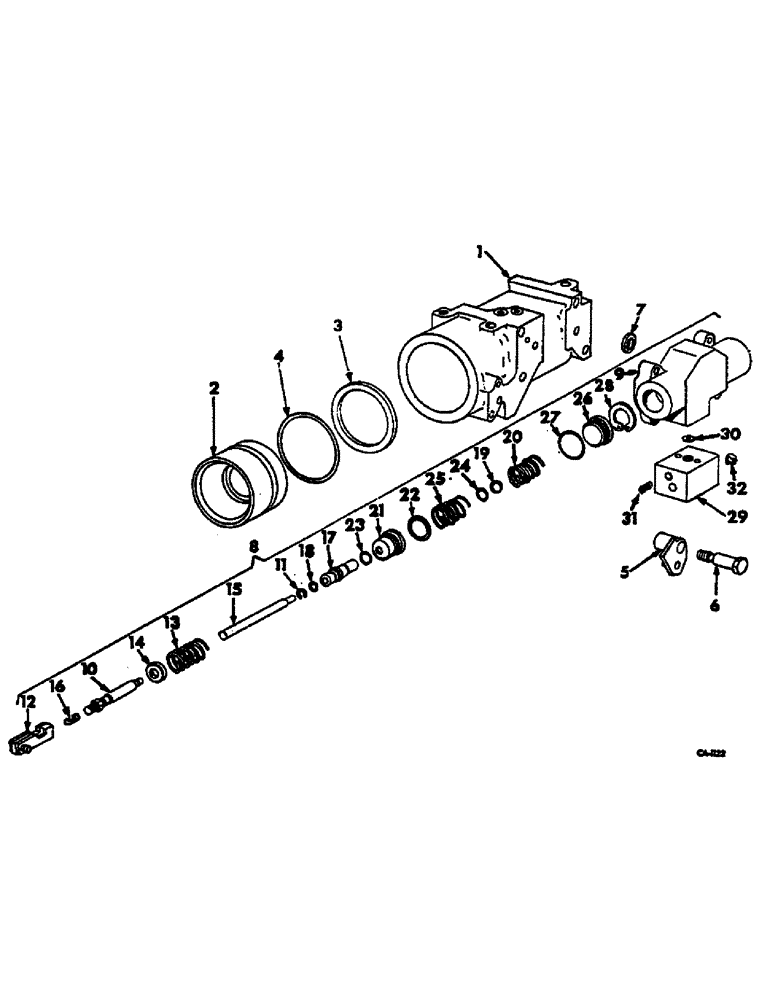

Запчасти Case IH 2500 (10-034) - DRAFT CONTROL CYLINDER AND VALVE (07) - HYDRAULICS

CYLINDER AND VALVE ASSY, DRAFT CONTROL

1шт.

1

399885R11

CYLINDER ASSY.

DRAFT CONTROL -CONSISTS OF REF NOS 2 THRU 7-

1шт.

186288

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

3/8-16 X 4-1/2 HEX-HD CAP

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

3шт.

2

399886R1

PISTON ASSY.,88.87mm Bore, 43.78mm Rod, 71.12mm W

DRAFT CONTROL

1шт.

3

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 X 3-1/2 X 3/16

1шт.

4

375936R1

BACK-UP RING

WASHER, PISTON O-RING BACK-UP

1шт.

5

399889R1

ARM ASSY.

DRAFT RETARDING

1шт.

6

399892R1

BOLT,Shldr, Hex, 3/8" - 16 x 2.25"

Retarding arm shoulder

1шт.

7

400002R1

OLIVE

SEAL, CYL TO VALVE

3шт.

8

399893R91

LOCK VALVE

ASSY, DRAFT CONTROL -CONSISTS OF REF NOS 9 THRU 28-

1шт.

9

399894R1

BODY

ASSY, DRAFT CONTROL VALVE W/SPOOL

1шт.

444697

PLUG,Hex Soc, 3/8"-18

1/2-14 AUTO HEX-SOC-HD PIPE

1шт.

10

376756R11

DISTRIBUTOR

TUBE ASSY, MAIN VALVE ACTUATOR

1шт.

11

376771R1

RING, SNAP

RING SNAP MAIN VALVE TUBE RETAINING

1шт.

12

527617R1

ARM ASSY.

MAIN VALVE

1шт.

13

395005R2

SPRING

MAIN VALVE

1шт.

14

376759R1

RETAINER

MAIN VALVE SPRING

1шт.

14

303322R1

SNAP RING,1.00", Int, #100

Main valve

1шт.

15

376763R1

ROD

DROP VALVE ACTUATING

1шт.

16

378101R1

SET SCREW,Hex Soc, #8-36 x 1/4"

DROP VALVE ADJUSTING

1шт.

17

392041R2

VALVE

DROP VALVE ADJUSTING

1шт.

18

406183R1

O-RING,0.07" Thk x 0.301" ID, -11, 80 Duro

5/16 X 7/16 X 1/16 -S- TREATED

1шт.

19

17006R1

BALL

3/16 CR-STL

1шт.

20

376765R1

SPRING

PILOT VALVE

1шт.

21

376766R1

VALVE POPPET

DROP

1шт.

22

406184R1

O-RING,0.139" Thk x 0.984" ID, -214, 70 Duro

1 X 1-1/4 X 1/8 -S- TREATED

1шт.

23

406182R1

O-RING,1.78mm Thk x 9.25mm ID, 80 Duro

3/8 X 1/2 X 1/16 -S- TREATED

1шт.

24

376767R1

BACK-UP RING,9.91mm ID x 12.5mm OD x 1.32mm Thk

DROP POPPET VALVE INNER O-RING

2шт.

25

376768R1

SPRING

DROP POPPET VALVE

1шт.

26

376770R1

PLUG

DROP POPPET VALVE

1шт.

27

391733R1

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1-1/8 X 1-1/4 X 1/16

1шт.

28

58102R1

SNAP RING,1.312", Int, #131

Drop valve

1шт.

29

399896R91

CONTROL VALVE

ASSY, ACTION -CONSISTS OF REF NOS 30, 31 + 32-

1шт.

179803

BOLT,1/4" - 20 x 1 3/4", Gr 5

2шт.

30

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 X 5/8 X 1/16

1шт.

31

547499R1

SPRING

SPOOL RETURN

1шт.

32

392320R1

SNAP RING,#31, Ext, E-Type

variable orifice spool #31, Ext, E-Type

1шт.

404810R91

GASKET KIT

PACKAGE, O-RING SERVICE -CONSISTS OF

1шт.

391733R1

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1-1/8 X 1-1/4 X 1/16 DROP VALVE

1шт.

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 X 3-1/2 X 3/16 DRAFT CONTROL

1шт.

375936R1

BACK-UP RING

WASHER, PISTON O-RING BACK-UP

1шт.

400002R1

OLIVE

RING, CYLINDER TO VALVE , O RING

1шт.

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16 X 7/16 X 1/16 PILOT VALVE SEAT

1шт.

350818R1

O-RING,0.984" ID x 0.139" Width

1 X 1-1/4 X 1/8 DROP POPPET VALVE

1шт.

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 X 1/2 X 1/16-CLASS 6 DROP

1шт.

376767R1

BACK-UP RING,9.91mm ID x 12.5mm OD x 1.32mm Thk

DROP POPPET VALVE INNER , O RING

2шт.

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 X 5/8 X 1/16 DROP CONTROL VALVE

2шт.
