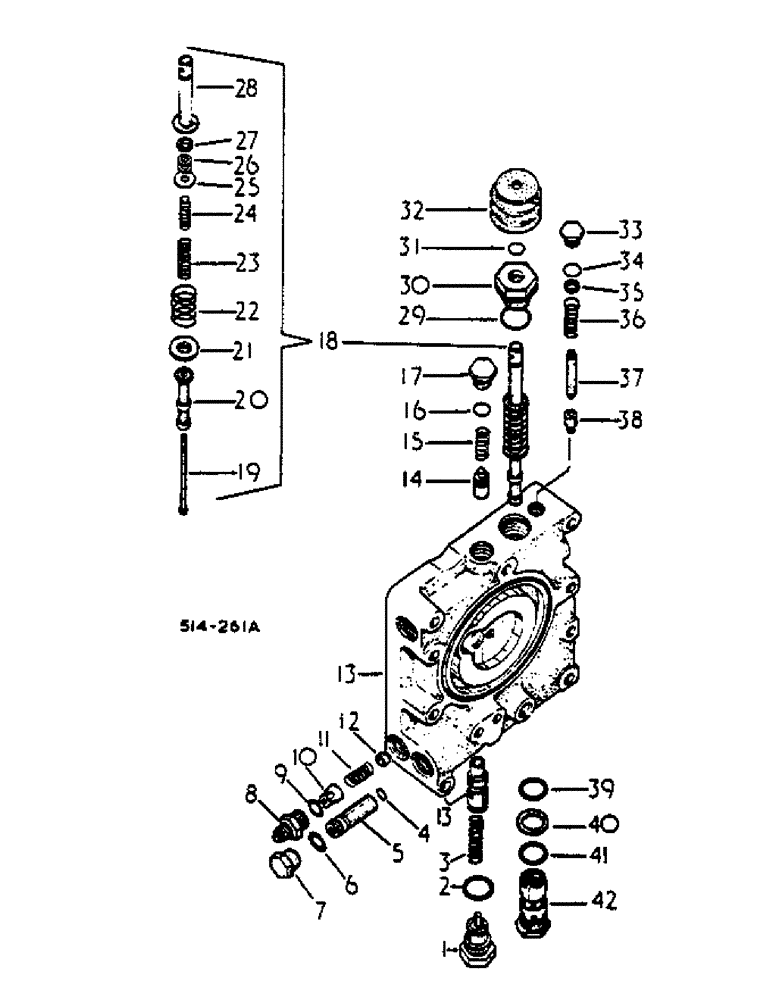

Запчасти Case IH 2500 (10-032) - MULTIPLE CONTROL VALVE (07) - HYDRAULICS

57714C91

NO LONGER SERVICED

VALVE ASSY, MULTIPLE CONTROL

1шт.

1

405447R1

PLUG

ASSY, FLOW DIVIDER

1шт.

2

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

5/8 OD TUBE

1шт.

3

405448R1

SPRING

FLOW DIVIDER VALVE

1шт.

4

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 X 9/16 X 3/32

1шт.

5

384444R92

VALVE

ASSY SAFETY-1500 PSI

1шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD

1шт.

7

536855R1

PLUG

STR,THD O-RING BOSS

1шт.

8

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, 9/16-18 ZND 37 DEG FLARED TUBE

1шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD

1шт.

10

399870R1

RETAINER

CHECK VALVE SPRING

1шт.

11

399869R1

SPRING

CHECK VALVE

1шт.

12

382304R1

CHECK VALVE

1шт.

13

BODY ASSY, MULTIPLE CONTROL VALVE -NOT SERVICED SEPARATELY FURNISH MULTIPLE CONTROL VALVE ASSY-

1шт.

14

527482R1

VALVE,By-Pass

1шт.

15

382299R1

SPRING

BY-PASS VALVE

1шт.

16

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD

1шт.

17

529492R1

PLUG

COOLER BY-PASS

1шт.

18

530775R93

VALVE

ASSY CONTROL -CONSISTS OF ITEMS 19-28 INCL.

1шт.

19

405454R2

PIN

CONTROL VALVE GUIDE

1шт.

20

405452R1

CONTROL VALVE

1шт.

21

405453R1

RETAINER

IPTO VALVE

1шт.

22

530776R1

SPRING

CONTROL VALVE

1шт.

23

381760R1

SPRING

CONTROL VALVE-LIGHT-

1шт.

24

399878R1

SPRING

CONTROL VALVE-HEAVY-

1шт.

25

566980R1

WASHER, SPRING RETAINER

1шт.

26

369107R1

SNAP RING,#21, Ext

SHIM CONTROL VALVE - 3 OFF OR AS REQUIRED -

1шт.

27

530778R1

RETAINER

PIN

1шт.

28

530777R2

STEM

STEM CONTROL VALVE

1шт.

405456R1

PIN

CONTROL VALVE DOWEL

1шт.

29

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD TUBE

1шт.

30

530781R2

GUIDE

CONTROL VALVE STEM

1шт.

31

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 X 3/4 X 3/32

1шт.

32

530780R1

BOOT

IPTO CONTROL DUST

1шт.

33

573983R1

PLUG

REGULATOR VALVE

1шт.

34

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

1шт.

35

363454R1

WASHER,8.33mm ID x 12.3mm OD x 0.81mm Thk

SPRING RETAINER

1шт.

36

549850R1

SPRING

PRESSURE REGULATOR VALVE, Serial Range: -07324

1шт.

36

399880R1

SPRING

SPRING, PRESSURE REGULATOR VALVE, Start Serial: 07325

1шт.

37

399881R1

PIN

PRESSURE REGULATOR VALVE

1шт.

38

399882R1

POPPET

PRESSURE REGULATOR POPPET

1шт.

39

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 X 1-1/8 X 3/32

1шт.

40

378985R2

BACK-UP RING

BACK-UP

1шт.

41

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 X 1-1/16 X 3/32

1шт.

42

399858R91

VALVE

PILOT RELIEF-2500 PSI -FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF PILOT RELIEF VALVE-

1шт.
