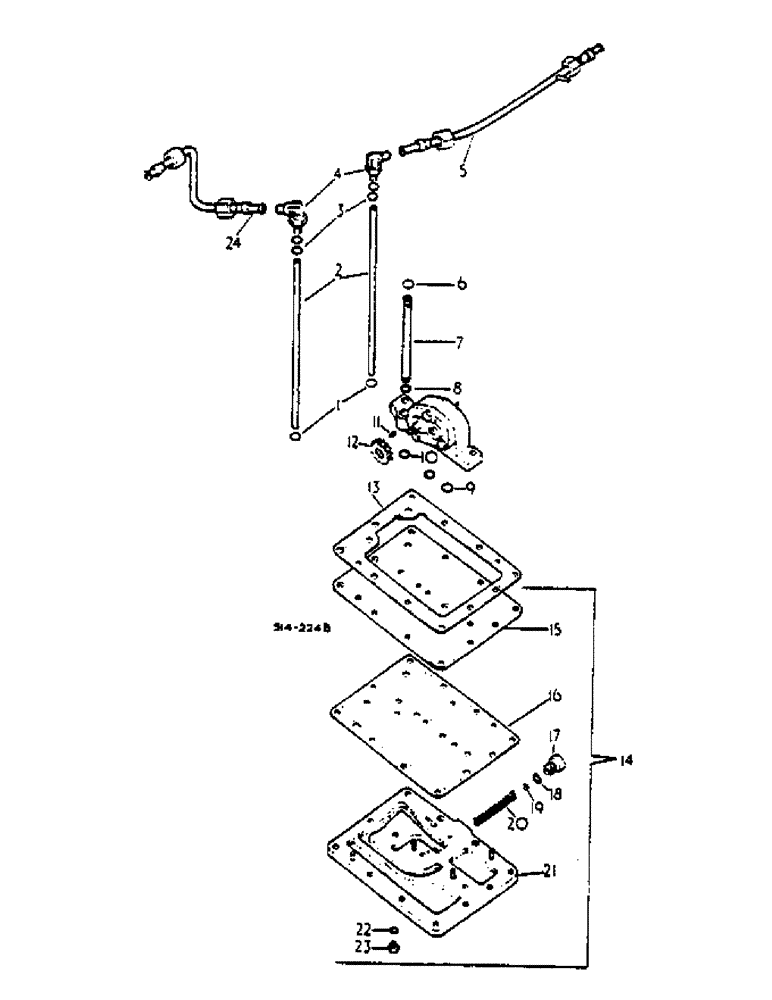

Запчасти Case IH 2500 (10-030) - HYDRAULIC PUMP & CONNECTIONS, TRACTORS W/FORWARD & REVERSE, & TORQUE AMPLIFIER (07) - HYDRAULICS

1

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 X 11/16 X 3/32

2шт.

2

402545R1

PRESSURE PIPE

PUMP

2шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

2шт.

4

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 C-Z 37 DEG HYD FLARED TUBE

2шт.

5

66116C1

TUBE,0.5" OD, 13.04, 2.29" Length

ASSY, TORQUE AMPLIFIER AND FWD /REVERSE RETURN, 574, Start Serial: 10244

1шт.

5

66116C1

TUBE,0.5" OD, 13.04, 2.29" Length

ASSY, TORQUE AMPLIFIER AND FWD /REVERSE RETURN, 2500, Start Serial: 00602

1шт.

5

529744R1

SPARE PART ASSY, TORQUE AMPLIFIER AND FWD /REVERSE RETURN, 574, Serial Range: -10243

1шт.

5

529744R1

SPARE PART ASSY, TORQUE AMPLIFIER AND FWD /REVERSE RETURN, 2500, Serial Range: -00601

1шт.

6

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 X 5/8 X 1/6

2шт.

7

402544R1

SUCTION PIPE

OIL INLET

1шт.

8

402540R91

PUMP, HYDRAULIC

ASSY, HYD - TRACTOR W/TORQUE AMPLIFIER -

1шт.

8

527757R91

PUMP

ASSY, HYD - TRACTORS W/FORWARD AND REVERSE

1шт.

9

574069R1

O-RING,0.750" ID x .062"

3/4 X 7/8 X 1/16

1шт.

10

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

5/8 X 3/4 X 1/16

2шт.

11

427261

KEY

1/8 X 3/8 WOODRUFF

1шт.

12

527758R1

GEAR

PUMP DRIVEN 19T - TRACTORS W/TORQUE AMPLIFIER -

1шт.

12

528076R1

GEAR

PUMP DRIVEN 14T - TRACTORS W/FORWARD AND REVERSE

1шт.

115548

LOCK WASHER,Int Tooth, 5/16"

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

13

402556R2

GASKET

PUMP MOUNTING FLANGE LT

1шт.

14

402547R95

VALVE

ASSY, REGULATOR

1шт.

15

402554R1

PLATE

PUMP

1шт.

16

402555R2

GASKET

PUMP PLATE

1шт.

17

PLUG ASSY - SEE PACKAGE 65732C91-

1шт.

18

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

19

SHIM - SEE PACKAGE 65732C91 -

1шт.

20

SPRING, REGULATOR VALVE - SEE PACKAGE 65732C91 -

1шт.

21

402548R1

BODY

REGULATOR VALVE

1шт.

179842

SPACER

3/8-16 X 1-3/8 HEX HD CAP

11шт.

22

369751R2

O-RING

1/4 OD TUBE

11шт.

23

9410356

PLUG

7/16-20 C-Z STR O-RING BOSS

1шт.

24

66117C1

TUBE ASSY.

OIL COOLER RETURN REAR, 574, Start Serial: 10244

1шт.

24

66117C1

TUBE ASSY.

OIL COOLER RETURN REAR, 2500, Start Serial: 00602

1шт.

524263R91

KIT

SPARE PART SEAL PACK, NOT ILLUSTRATED

1шт.

65732C91

KIT

PACKAGE, REG VALVE SERVICE, NOT ILLUSTRATED

1шт.
