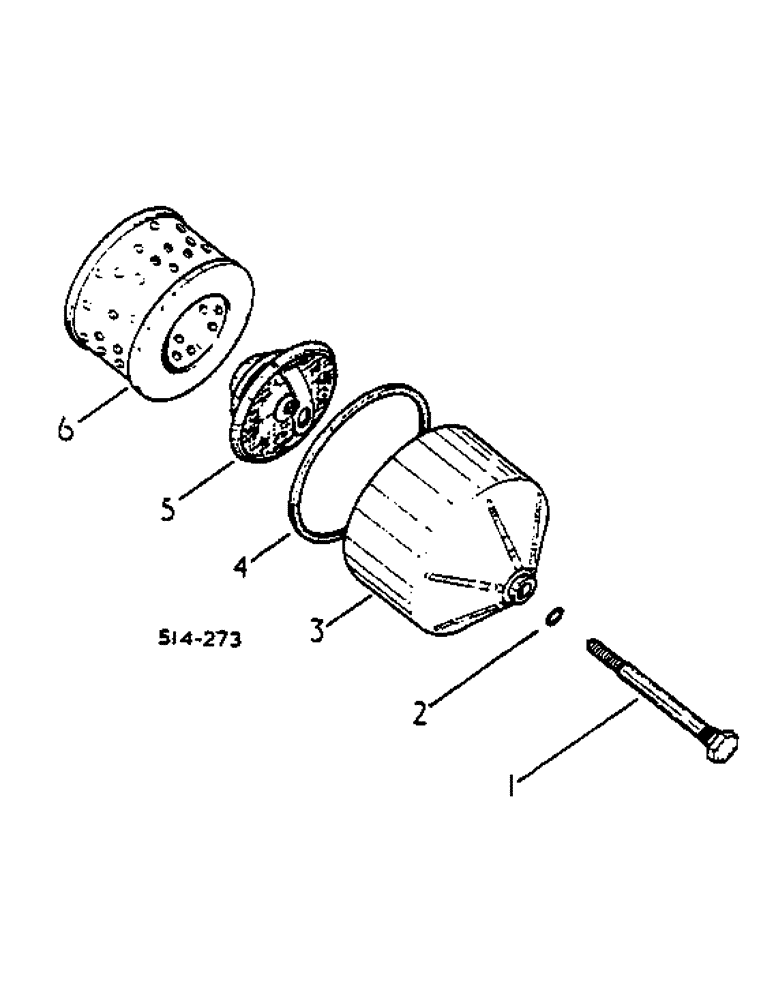

Запчасти Case IH 2500 (10-019) - OIL FILTER (07) - HYDRAULICS

1

68202C1

BOLT

BOLT CENTRE

1шт.

2

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 X 5/8 X 3/32 -FILTER CASE SEAL

1шт.

3

68209C1

CASE

FILTER

1шт.

4

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

Oil filter case

1шт.

5

405464R2

VALVE

SCREEN ASSY BY-PASS

1шт.

6

ELEMENT ASSY NOT SERVICED SEPERATELY, FURNISH OIL FILTER ELEMENT PACKAGE

1шт.

530144R92

FILTER, ELEMENT

ELEMENT, FILTER PACKAGE OIL -SERVICE-, NOT ILLUSTRATED, -CONSISTS OF

1шт.

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

Not Illustrated

1шт.

355966R1

O-RING,0.424" ID x 0.103" Width

NOT ILLUSTRATED

1шт.

375271R1

O-RING,0.426" ID x 0.07" Width

NOT ILLUSTRATED

1шт.

ELEMENT, NOT ILLUSTRATED

1шт.

65126C92

ELEMENT

PACKAGE, OIL -FOR HS TRACTORS, NOT ILLUSTRATED, -CONSISTS OF-

1шт.

401070R1

GASKET

NOT ILLUSTRATED

1шт.

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

Not Illustrated

1шт.

355966R1

O-RING,0.424" ID x 0.103" Width

NOT ILLUSTRATED

1шт.

375271R1

O-RING,0.426" ID x 0.07" Width

NOT ILLUSTRATED

1шт.

ELEMENT, NOT ILLUSTRATED

1шт.
