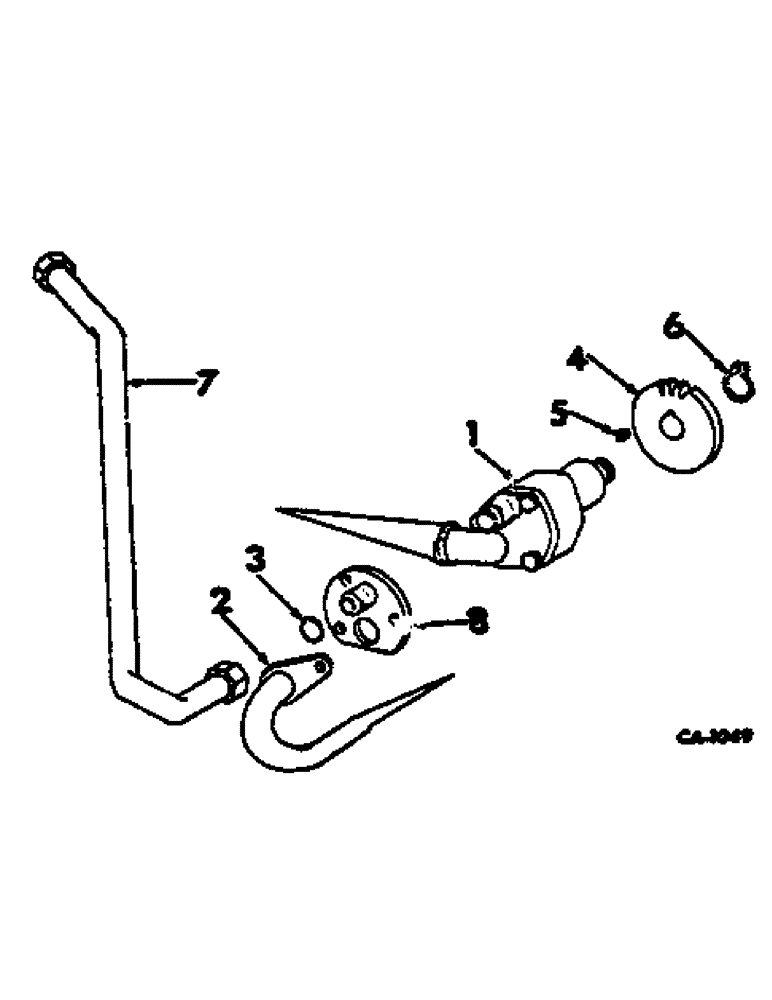

Запчасти Case IH 2500 (10-018) - HYDRAULIC LUB PUMP, SYNCHROMESH DRIVE (07) - HYDRAULICS

1

528504R91

PUMP

ASSY, TRANSFER, -OPTIONAL W/529397R91-

1шт.

1

529397R91

PUMP

ASSY, TRANSFER -OPTIONAL W/528504R91-

1шт.

139371

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

5/16-18 X 1/2 HEX-SOC-HD CONE PT

1шт.

527424R1

SCREW

TRANSFER PUMP RETAINING

1шт.

2

529099R1

SUCTION PIPE

TRANSFER PUMP SUCTION -USED W/PUMP 528504R91 ONLY-

1шт.

3

574069R1

O-RING,0.750" ID x .062"

3/4 X 7/8 X 1/16

1шт.

4

528095R1

PINION

GEAR, TRANSFER PUMP DRIVEN -21T

1шт.

5

529100R1

BUCKET TOOTH KEY

TRANSFER PUMP

1шт.

6

3042123R1

RING, SNAP

RING SNAP DRIVEN GEAR RETAINING

1шт.

7

527423R1

PRESSURE PIPE

ASSY, TRANSFER PUMP OUTLET

1шт.

8

529275R1

END PLATE

-USED W/PUMP 528504R91-

1шт.
