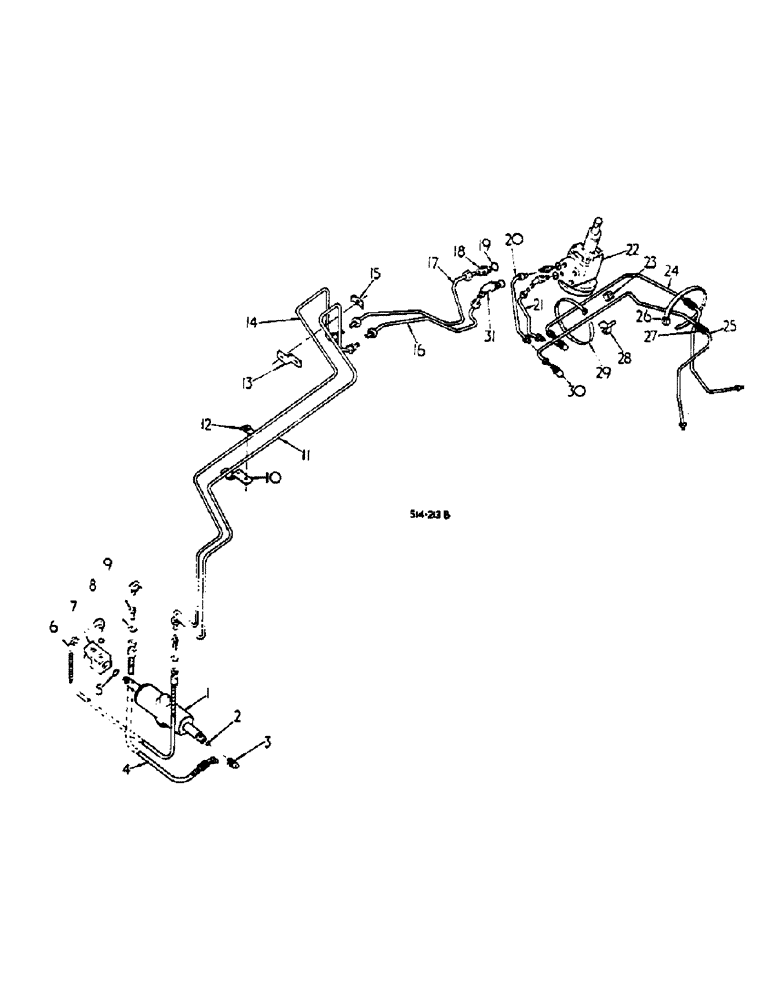

Запчасти Case IH 2500 (10-014) - POWER STEERING, DANFOSS, 574 S/N 10444 UP TO 100954, 2500 S/N 605 UP TO 100004 (07) - HYDRAULICS

1

CYLINDER ASSY, HYD P.S. -FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF POWER STEERING CYLINDER-

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

2шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 CZ 37 DEG HYD FLARED

2шт.

4

530132R1

HYDRAULIC HOSE,0.25" ID x 18.00", SAE 100R1

POWER STEERING CYL R.H.

1шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 O.D. TUBE

1шт.

67488C2

PIN

POWER STEERING CYL

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

6

530131R1

HOSE

ASSY, POWER STEERING CYL L.H.

1шт.

7

549670R1

CLEANER

CLEVIS, CYL END 7/8 THREAD

1шт.

8

9403293

LOCK NUT,Blkhd, 9/16"-18

9/16-18 C-Z BULKHEAD UNION

2шт.

9

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 CZ 37 DEG HYD FLARED TUBE

2шт.

115553

LOCK WASHER,Int Tooth, 5/8"

2шт.

10

529646R1

BRACKET

FRONT MANIFOLD SUPPORT

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

11

529631R1

TUBE

ASSY, POWER STEERING R.H. FORWARD -ON ORDERS FOR 529631R1 FURNISH 1 TUBE 3116268R1 W/1 TUBE 66109C1 AND UNION 587639R1

1шт.

12

384891R11

CLAMP

ASSY, POWER STEERING TUBE

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 HEX HD CAP

1шт.

103319

LOCK WASHER,1/4"

1шт.

13

529642R1

BRACKET

FRONT MANIFOLD

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

1шт.

14

529632R1

TUBE

ASSY, POWER STEERING L.H. FORWARD -ON ORDERS FOR 529632R1 FURNISH 1 TUBE 3116267R1 W/ 66107C1-

1шт.

15

529643R11

CLAMP

ASSY, POWER STEERING TUBE

1шт.

16

537425R1

TUBE

ASSY, POWER STEERING R.H. REAR -ON ORDERS FOR 537425R1 FURNISH 1 TUBE 3116268R1 W/ 1 TUBE 66109C1 AND 1 UNION 587639R1-

1шт.

17

537424R1

TUBE

ASSY, POWER STEERING L.H. REAR -ON ORDERS FOR 537424R1 FURNISH 1 TUBE 3116267R1 W/1 TUBE 66107C1

1шт.

18

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

9/16-18 CZ 37 DEG HYD FLARED

2шт.

19

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 O.D TUBE

4шт.

20

537429R1

PIPE FITTING

ASSY, POWER STEERING RETURN FORWARD ON ORDERS FOR 537429R1 FURNISH 1 TUBE 3116272R1 W/1 TUBE 66104C1 AND 1 UNION 587639R1-

1шт.

21

537428R1

TUBE

ASSY, POWER STEERING PRESSURE FORWARD -ON ORDERS FOR 537428R1 FURNISH 1 TUBE 3116271R1 W/1 TUBE 66105C1, 1 UNION 587639R1 AND 1 CHECK VALVE 57715C1-

1шт.

22

VALVE ASSY, INTEGRAL POWER STEERING -FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF INTEGRAL HYDROSTATIC STEERING VALVE-

1шт.

23

529637R2

GUIDE

MANIFOLD TUBE

1шт.

24

529616R1

TUBE

ASSY, POWER STEERING PRESSURE REAR -ON ORDERS FOR 529616R1 FURNISH 1 TUBE 3116271R1 W/1 TUBE 66105C1, 1 UNION 587639R1 AND 1 CHECK VALVE 57715C1-

1шт.

25

529615R1

TUBE

ASSY, POWER STEERING RETURN REAR -ON ORDERS FOR 529615R1 FURNISH 1 TUBE 3116272R1 W/1 TUBE 66104C1 AND 1 UNION 587639R1-

1шт.

26

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14 in, REAR MANIFOLD TUBES

1шт.

27

536009R1

FUEL HOSE,0.31" ID x 2.50"

Spacer

2шт.

28

529638R1

BRACKET

REAR MANIFOLD

1шт.

29

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14 in, REAR MANIFOLD TUBE

1шт.

30

9402942

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ELBOW 9/16-18 CZ 37 DEG HYD FLARED TUBE

2шт.

31

537423R1

ELBOW

ASSY, HYD TUBE

2шт.
