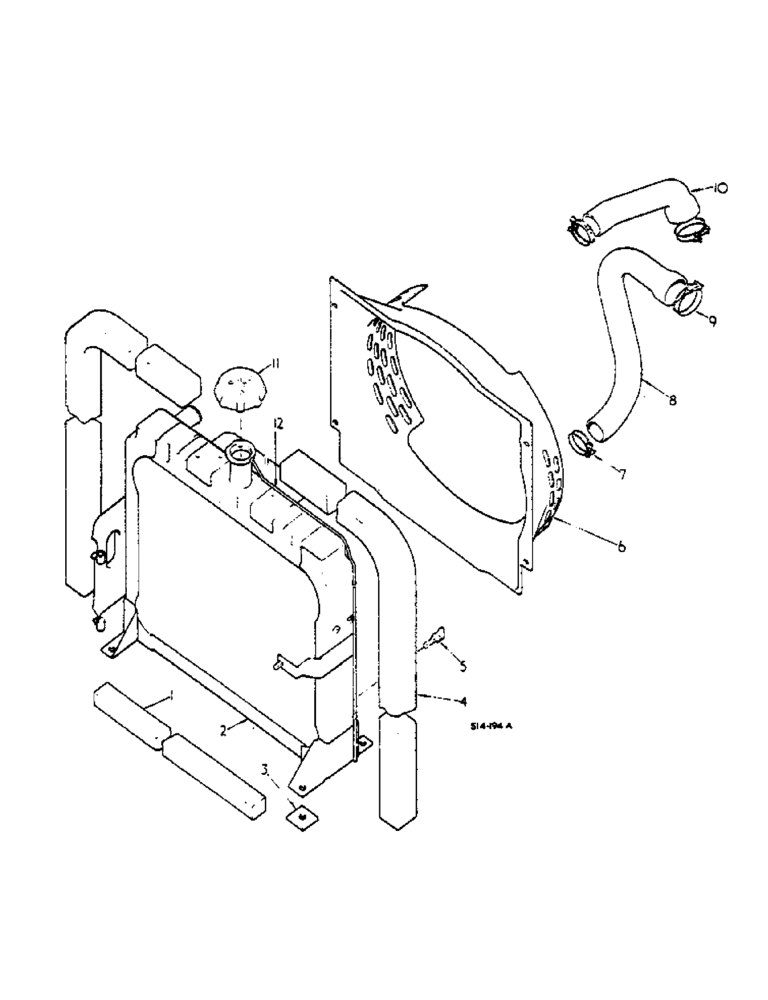

Запчасти Case IH 2500 (06-05) - RADIATOR AND CONNECTIONS Cooling

1

537162R1

FILLING STRIP

GASKET, LOWER RADIATOR

1шт.

2

3113086R3

RADIATOR

ASSY -SYNCHROMESH DRIVE TRACTORS-

1шт.

2

3113087R3

RADIATOR

ASSY -HYDROSTATIC DRIVE TRACTORS-

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16-14 X 1 HEX HD

4шт.

103322

LOCK WASHER,7/16"

4шт.

142745

NUT, WING

5/16-18 ZND

1шт.

3

47240D

PAD

RADIATOR

4шт.

23042R1

WASHER

17/32 X 1 X 22 GA -AS REQD-

1шт.

4

394788R1

GASKET

GASKET, RADIATOR BAFFLE

2шт.

5

3113083R1

PLUG, DRAIN

574, Start Serial: 4692

1шт.

5

3113083R1

PLUG, DRAIN

2500, Start Serial: 527

1шт.

5

531184R1

VALVE

PLUG, DRAIN, 574, Serial Range: -4691

1шт.

5

531184R1

VALVE

PLUG, DRAIN, 2500, Serial Range: -526

1шт.

6

527475R2

HOUSING

SHROUD, FAN

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

95-11028

WASHER,1/4"

9/32 X 5/8 X .051

4шт.

7

705935R91

HOSE CLAMP

OPTIONAL W/ 39149H-

2шт.

7

39149H

HOSE CLAMP

OPTIONAL W/705935R91-

2шт.

8

402205R1

LARGE HOSE,50.80 mm ID x 213.90 mm, SAE 100R2

HOSE,LARGE RADIATOR OUTLET

1шт.

8

402205R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

9

706082R91

CLAMP

HOSE -OPTIONAL W/39205H-

2шт.

9

39205H

CLAMP

HOSE -OPTIONAL W/706082R91-

2шт.

10

402207R1

LARGE HOSE,50.80 mm ID x 179.83 mm, SAE 20R2

HOSE,LARGE Inlet

1шт.

10

402207R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

11

532029R1

CAP ASSY.

RADIATOR

1шт.

12

3113527R1

PIPE

OVERFLOW 31 1/2

1шт.

3113528R1

CLIP

PIPE

2шт.
