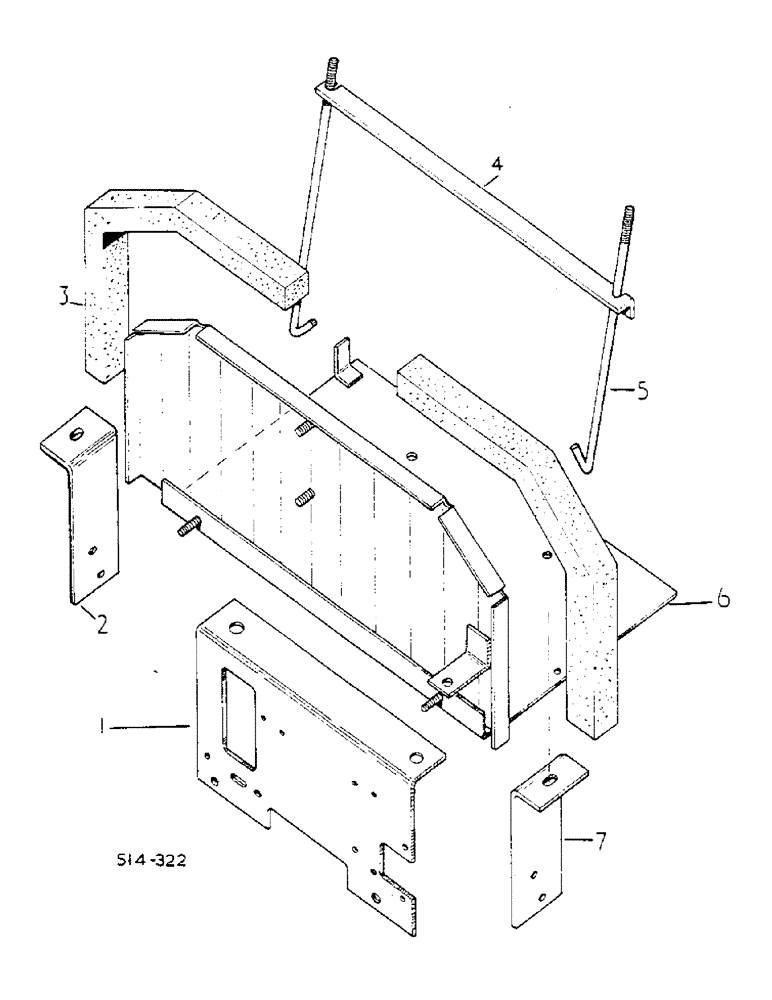

Запчасти Case IH 2500 (08-52B) - BATTERY TRAY, MACHINE FITTED W/ISO, MOUNTED CAB (06) - ELECTRICAL

1

538054R1

SUPPORT

ASSY - 475, 574, 674 & 2500 MACHINES -

1шт.

1

3113042R1

SUPPORT ASSY - 454 & 2400 MACHINES -

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

2

3116892R1

SUPPORT

BATTERY TRAY L. H.

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

21872R1

WASHER

.406 x .625 x .054

1шт.

3

394788R1

GASKET

GASKET, BATTERY HEAT SHIELD

2шт.

4

527604R1

ANGLE

BATTERY HOLD DOWN

1шт.

5

527605R1

ROD

BATTERY HOLD DOWN - SYNCHROMESH DRIVE TRACTORS -

2шт.

5

529958R1

ROD, BATTERY HOLD DOWN - HYDROSTATIC DRIVE TRACTORS -

2шт.

142745

NUT, WING

5/16-18 C-Z

2шт.

120393

BEARING WASHER,5/16", SAE

11/32 x 11/16 x .051 C-Z

2шт.

6

3116200R1

TRAY

ASSY - 475, 574, 674 & 2500 MACHINES -

1шт.

6

3116202R1

TRAY

ASSY - 454 & 2400 MACHINES -

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

2шт.

20893R1

WASHER

11/32 x 1 x .120 C-Z

2шт.

120393

BEARING WASHER,5/16", SAE

.344 x .688 x .051

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

5/16 HEX

2шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

103320

LOCK WASHER,5/16"

1шт.

7

3116893R1

SUPPORT

SPARE PART BATTERY TRAY R. H.

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

21872R1

WASHER

.406 x .625 x .054

1шт.
