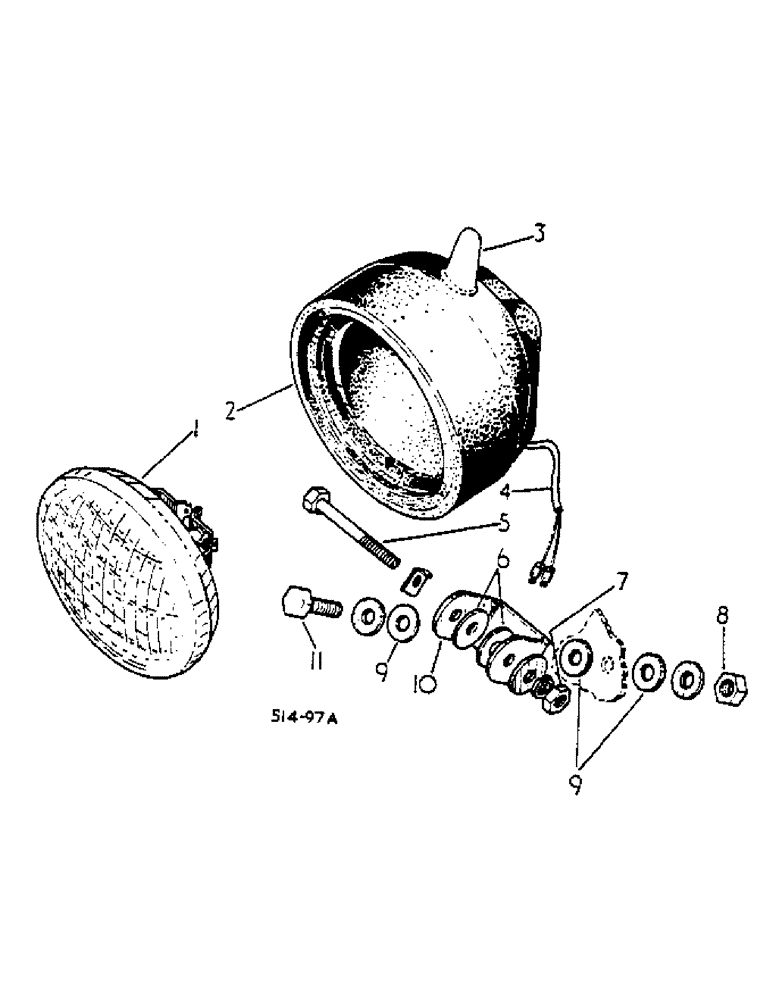

Запчасти Case IH 2500 (08-35) - PLOUGH LIGHT, 574 S/N 101685 AND UP, 2500 S/N 100017 AND UP (06) - ELECTRICAL

3112400R91

NO LONGER SERVICED

LIGHT, PLOUGH

1шт.

1

535850R1

LAMP

SEALED BEAM

1шт.

2

HOUSING, CPTE RUBBER - NOT SERVICED SEPARATELY -

1шт.

3112688R1

SWITCH

1шт.

3112699R1

SCREWDRIVER

NUT -ON ORDERS FOR NUT 3112699R1 FURNISH COVER SWITCH 3116610R1-

1шт.

3

3112689R1

COVER

SWITCH -FURNISH COVER SWITCH 3116610R1

1шт.

3

3116610R1

COVER

SWITCH

1шт.

4

3112685R91

HARNESS

CABLE

1шт.

5

181579

SCREW,Hex, 1/4" - 28 x 2", Gr 5

BOLT 1/4 UNF X 2 HEX HD

1шт.

3072945R1

WASHER

TAB

1шт.

6

3112690R1

WASHER

NYLON

2шт.

7

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4 UNF HEX

1шт.

16559R1

WASHER,1/4"

17/64 X 5/8

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

8

231-1446

NUT,3/8" - 16, Gr 5

1шт.

120394

WASHER,3/8", SAE

FLAT STEEL

1шт.

9

3112401R1

WASHER

NYLON

3шт.

10

3108515R1

SUPPORT

BRACKET

1шт.

11

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

120394

WASHER,3/8", SAE

FLAT STEEL

1шт.

531625R1

GROMMET

NOT ILLUSTRATED

1шт.
