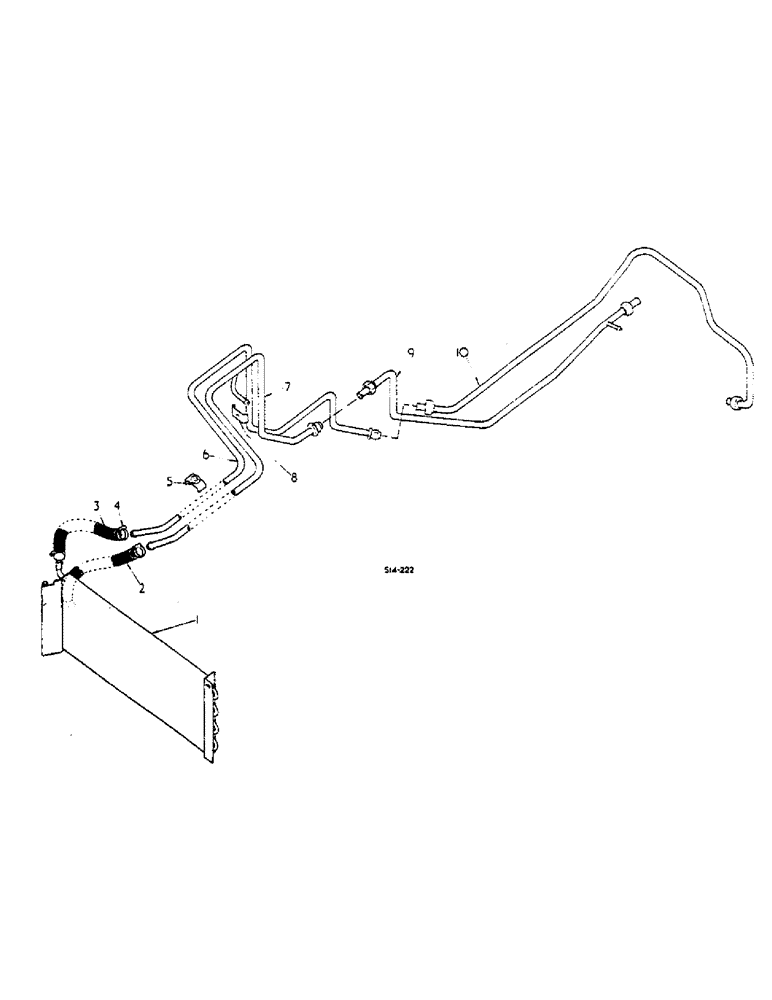

Запчасти Case IH 2500 (06-02) - OIL COOLER, SYNCHROMESH DRIVE TRACTOR Cooling

1

539560R1

COOLER

OIL

1шт.

1380S

PIN

5/16 X 1-3/4 STD HD

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

2

400707R1

HYDRAULIC HOSE,12.70 mm ID, SAE 100R6, SAE J517

OIL COOLER OUTLET

1шт.

3

388606R1

HYDRAULIC HOSE,12.70 mm ID x 342.00 mm, SAE 100R6, SAE J517

OIL COOLER INLET

1шт.

3

529613R1

FLEXIBLE HOSE

OIL COOLER INLET - OPTIONAL -

1шт.

4

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

OIL COOLER

4шт.

4

3074617R1

CLAMP

OIL COOLER HOSE - OPTIONAL -

4шт.

5

529644R11

CLAMP

ASSY, OIL COOLER TUBE

1шт.

NLS

NO LONGER SERVICED

1/4-20 X 7/8 HEX HD CAP

1шт.

103319

LOCK WASHER,1/4"

1шт.

6

66098C1

PIPE

ASSY, OIL COOLER INLET

1шт.

6

529628R1

TUBE

ASSY, OIL COOLER INLET - ORDER TUBE 66098C1 W/ TUBE - 66095C1 -, 574, Serial Range: -10243

1шт.

6

529628R1

TUBE

ASSY, OIL COOLER INLET - ORDER TUBE 66098C1 W/ TUBE - 66095C1 -, 2500, Serial Range: -00601

1шт.

7

66100C1

TUBE

ASSY, OIL COOLER OUTLET

1шт.

7

534867R1

SPARE PART ASSY, OIL COOLER OUTLET - ORDER TUBE 66100C1 W/ TUBE 56096C1 -, 574, Serial Range: -10243

1шт.

7

534867R1

SPARE PART ASSY, OIL COOLER OUTLET - ORDER TUBE 66100C1 W/ TUBE 56096C1 -, 2500, Serial Range: -00601

1шт.

8

381448R1

CLAMP

OIL COOLER TUBE

1шт.

9

66096C1

TUBE

ASSY, OIL COOLER RETURN REAR

1шт.

9

529606R1

TUBE

ASSY, OIL COOLER RETURN REAR - ORDER TUBE 66096C1 W/ TUBE 66100C1 -, 574, Serial Range: -10243

1шт.

9

529606R1

TUBE

ASSY, OIL COOLER RETURN REAR - ORDER TUBE 66096C1 W/ TUBE 66100C1 -, 2500, Serial Range: -00601

1шт.

10

66095C1

TUBE

ASSY, OIL COOLER REAR

1шт.

10

529605R1

SPARE PART ASSY, OIL COOLER REAR - ORDER TUBE 66095C1 W/ TUBE 66098C1 - - UP TO 574/10243 - - UP TO 2500/00601 -

1шт.

9402943

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

UNION, 3/4-16 C-Z 37 DEG HYD FLARED TUBE 90 DEG ELBOW - OIL COOLER REAR TUBE - - UP TO 574/10243 - - UP TO 2500/00601 -, THE FOLLOWING PARTS ARE NOT ILLUSTRATED

1шт.

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 C-Z 37 DEG HYD FLARED TUBE - OIL COOLER RETURN REAR TUBE -, NOT ILLUSTRATED

1шт.

9402943

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

UNION, 3/4-16 C-Z 37 DEG HYD FLARED TUBE, 90 DEG ELBOW, OIL COOLER REAR TUBE, 574, NOT ILLUSTRATED, Serial Range: -10243

1шт.

9402943

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

UNION, 3/4-16 C-Z 37 DEG HYD FLARED TUBE, 90 DEG ELBOW, OIL COOLER REAR TUBE, 2500, NOT ILLUSTRATED, Serial Range: -00601

1шт.
