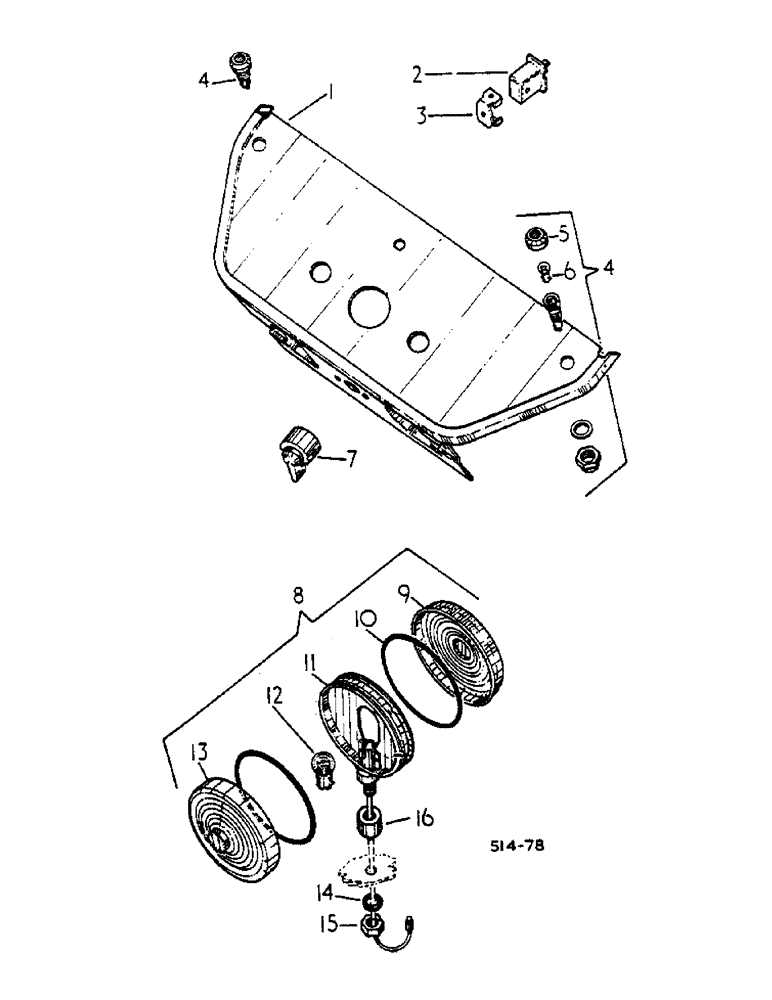

Запчасти Case IH 2500 (08-24) - DIRECTION INDICATOR, 674 UP TO S/N 101684, 2500 UP TO S/N 100016 (06) - ELECTRICAL

1

PANEL ASSY, INSTRUMENT -SEE INSTRUMENT PANEL AND GAUGES-

1шт.

2

528284R1

RELAY

UNIT, FLASHER

1шт.

3

528285R1

CLIP

SPARE PART FLASHER UNIT

1шт.

171716

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

10-24 X 3/8 SLT-PAN-HD TAP

1шт.

4

3072048R91

WARNING LIGHT

CONSISTS OF REF NOS 5 AND 6

2шт.

5

3074995R91

CAP

SCREWED W/LENS -YELLOW-

1шт.

6

894350H1

BULB

LAMP 12V 2.2W MCC

1шт.

7

3072070R91

FLASHER SWITCH

FLASHER

1шт.

182-48

SCREW,Sl Pan Hd, #6 - 32 x 3/4"

6-32 X 3/4 SLT-RD-HD MACH

2шт.

134532

DISC

6-32 C-Z SQ MACH

2шт.

NLS

NO LONGER SERVICED

2шт.

8

531627R91

INDICATOR LIGHT

FLASHER -CONSISTS OF REF NOS 9 TO 15-

2шт.

9

3112682R1

LENS

AMBER FRONT

4шт.

10

899282R1

O-RING

RUBBER SEALING

8шт.

11

BODY ASSY -NOT SERVICABLE-

4шт.

12

3025210R91

BULB

LAMP 12V/21W SCC BULB

4шт.

13

3112683R1

LENS

AMBER REAR

4шт.

14

493-21046

LOCK WASHER,Int Tooth, 7/16"

7/16 LOCK

4шт.

15

425-157

JAM NUT,Jam, 7/16"-20, G5

4шт.

16

3073103R1

SPACER

4шт.

705897R1

CONNECTOR, ELEC

CONNECTOR ONE WAY, NOT ILLUSTRATED

1шт.

531628R1

HARNESS

LH FENDER, NOT ILLUSTRATED

1шт.

531629R1

SPARE PART RH FENDER, NOT ILLUSTRATED

1шт.
