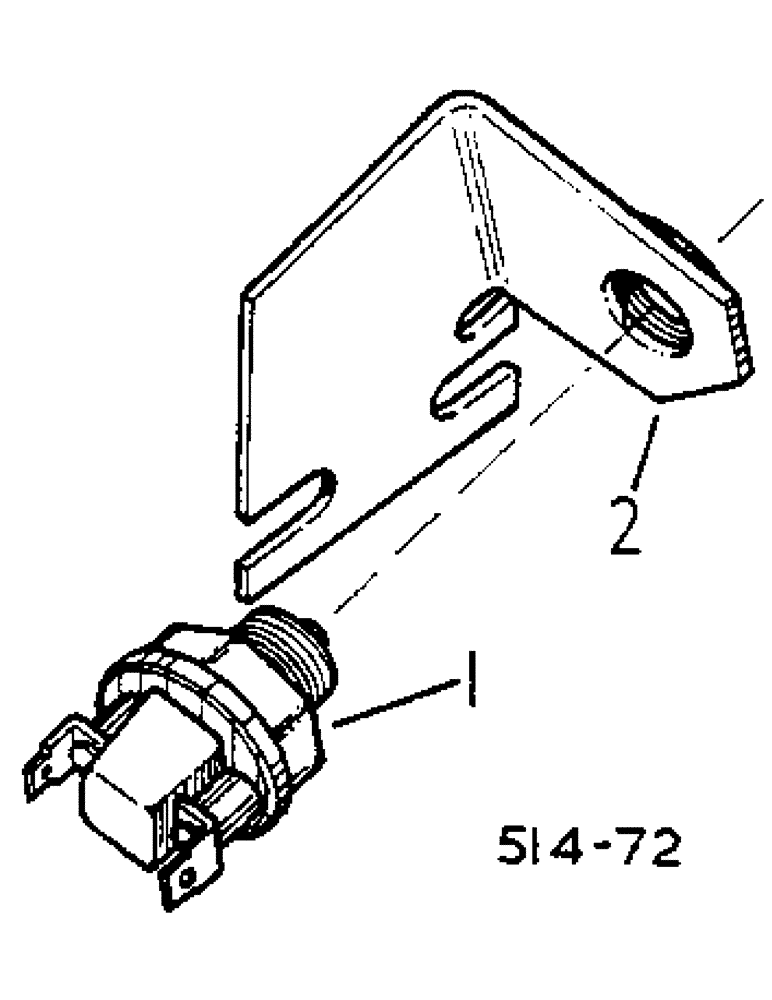

Запчасти Case IH 2500 (08-23) - BRAKE LIGHT SWITCH & BRACKET, FOR MACHINES FITTED W/ FLAT TOP FENDERS, SAFETY FRAME OR SAFETY CAB (06) - ELECTRICAL

1

3106565R91

SWITCH

BRAKE LIGHT

1шт.

2

531633R1

BRACKET

ASSY, BRAKE LIGHT SWITCH

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

2шт.

531628R1

HARNESS

LH FENDER, NOT ILLUSTRATED, 574, Serial Range: -101684

1шт.

531628R1

HARNESS

LH FENDER, NOT ILLUSTRATED, 2500, Serial Range: -100016

1шт.

531629R1

SPARE PART RH FENDER, NOT ILLUSTRATED, 574, Serial Range: -101684

1шт.

531629R1

SPARE PART RH FENDER, NOT ILLUSTRATED, 2500, Serial Range: -100016

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR ONE WAY FENDER, NOT ILLUSTRATED, 574, Serial Range: -101684

4шт.

705897R1

CONNECTOR, ELEC

CONNECTOR ONE WAY FENDER, NOT ILLUSTRATED, 2500, Serial Range: -100016

4шт.
