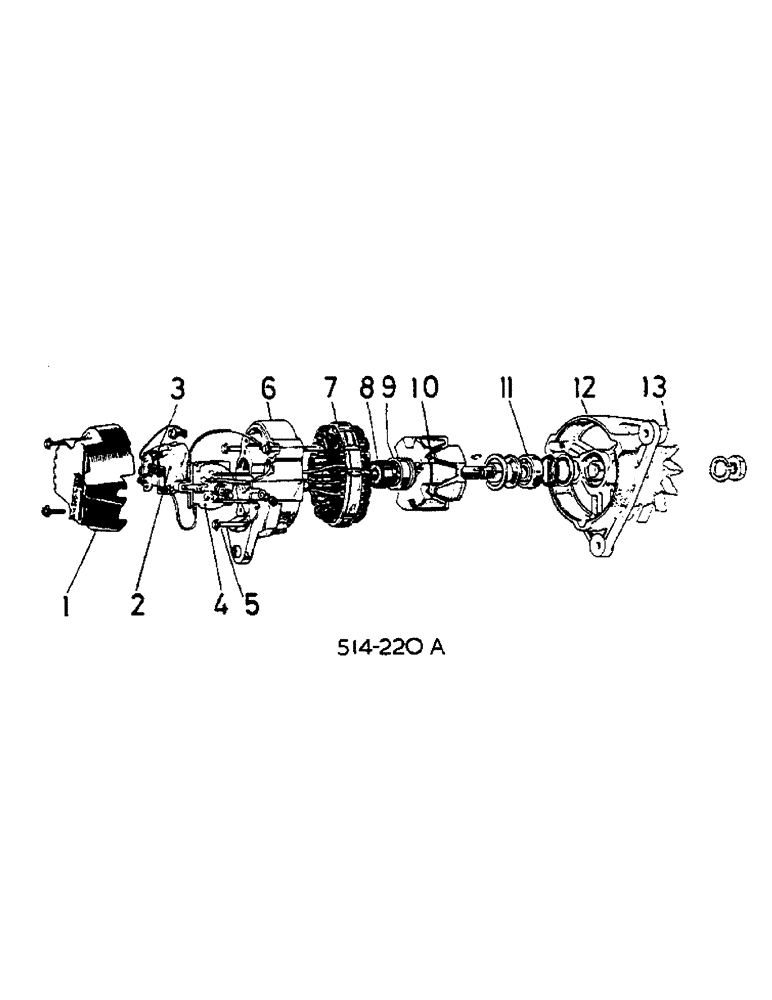

Запчасти Case IH 2500 (08-15) - ALTERNATOR (06) - ELECTRICAL

3113331R91

ALTERNATOR

LUCAS 15 ACR

1шт.

1

3116086R1

COVER

1шт.

2

3116094R91

BRUSH HOLDER

HOLDER, BRUSH BOX ASSY, W/BRUSH, KIT 3116099R91

1шт.

3116099R91

BRUSH SET

KIT

1шт.

3

3116087R1

REGULATOR

1шт.

4

3116088R1

RECTIFIER

1шт.

5

3116095R1

BOLT

FIXING

3шт.

6

3116092R1

BRACKET

S.R.E.

1шт.

7

3116093R1

STATOR

1шт.

8

3116097R1

RING

SLIP

1шт.

9

3116098R1

KIT

BEARING, S.R.E.

1шт.

10

3116091R91

ROTOR

ASSY W/RING 3116097R1 AND BEARING 3116098R91

1шт.

11

3116096R91

BEARING ASSY

KIT, D.E

1шт.

12

3116089R91

BRACKET

ASSY, DRIVE END

1шт.

13

3117067R1

FAN

ALTERNATOR

1шт.

3116090R91

KIT

SPARE PART PARTS SUNDRY, NOT ILLUSTRATED

1шт.

3115781R1

RECTIFIER

DEVICE ANTI-SURGE PROTECTION, ILLUSTRATED

1шт.
