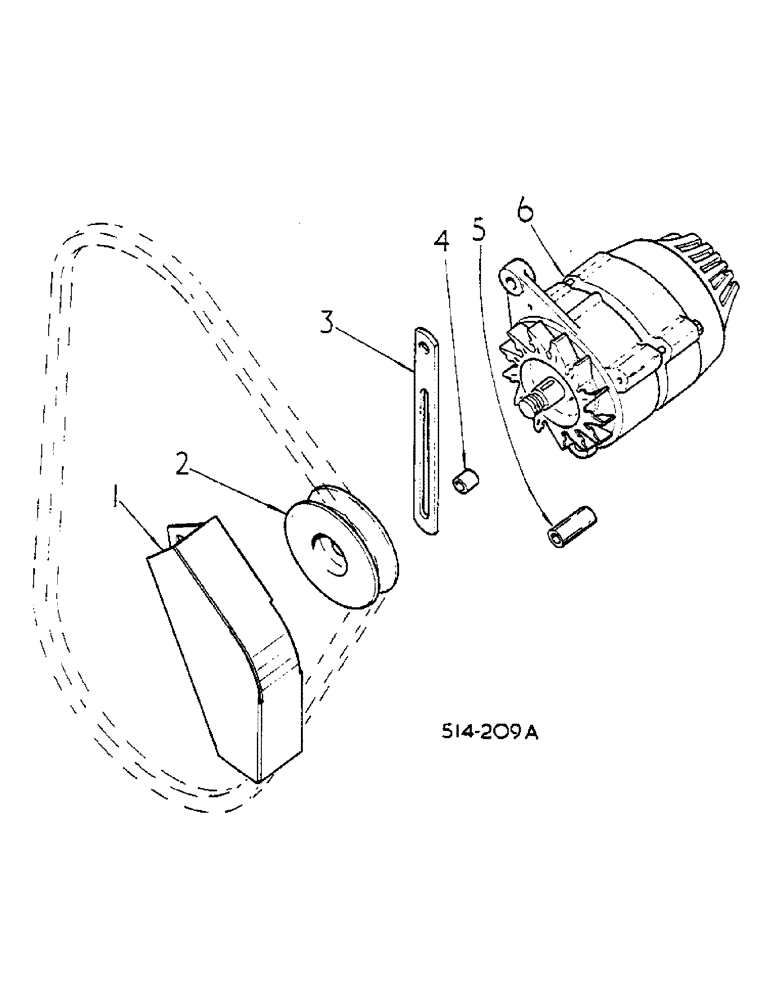

Запчасти Case IH 2500 (08-13) - ALTERNATOR AND CONNECTIONS, 574 S/N 11094 AND UP, 2500 S/N 630 AND UP (06) - ELECTRICAL

1

3113673R2

SHIELD

ALTERNATOR

1шт.

2

3113672R1

PULLEY

ALTERNATOR

1шт.

3

3113336R1

BRACE

ALTERNATOR

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

11/32 X 11/16 X .065

1шт.

4

3068374R1

SPACER

ALTERNATOR BRACE

1шт.

187953

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

1шт.

103320

LOCK WASHER,5/16"

1шт.

5

3113678R1

SPACER

ALTERNATOR MOUNTING

1шт.

6

3113331R91

ALTERNATOR

LUCAS 15 ACR -FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF ALTERNATOR

1шт.

272392

NUT,Hex, 5/16" - 18 x 4 3/4", Gr 5

5/16 X 4-3/4 HEX HD

1шт.

80681

LOCK WASHER,5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

11/32 X 11/16 X .065

1шт.
