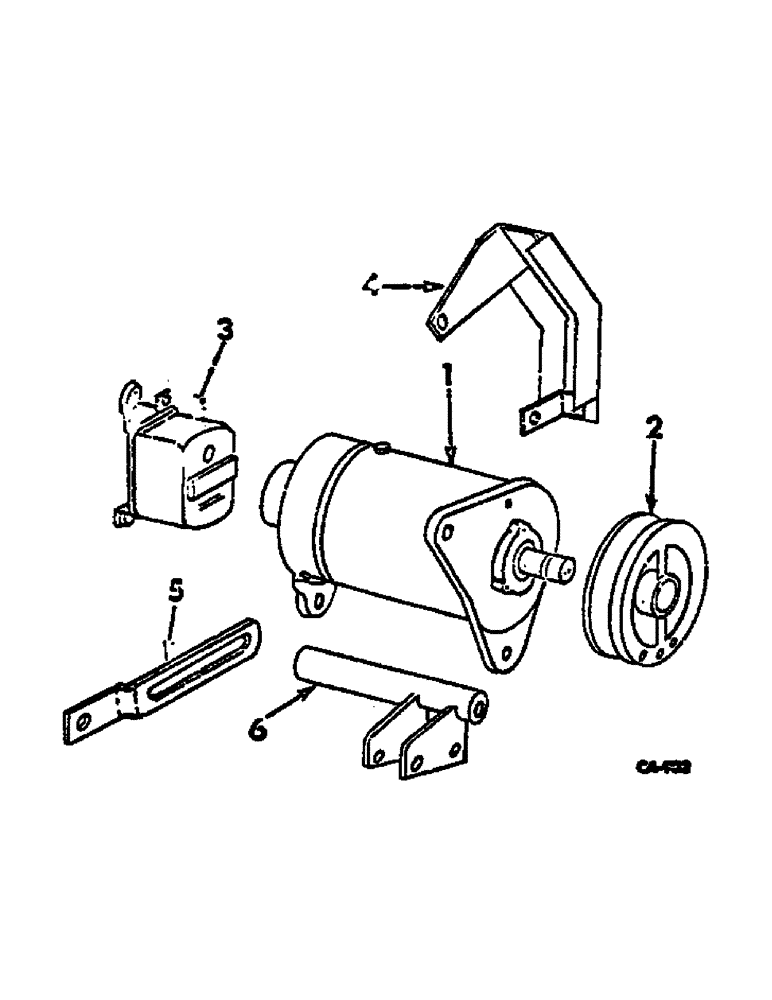

Запчасти Case IH 2500 (08-02) - GENERATOR AND CONNECTIONS (06) - ELECTRICAL

1

527684R91

GENERATOR

FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF GENERATOR

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

2

3055563R1

PULLEY

GENERATOR

1шт.

3

3056918R92

REGULATOR

VOLTAGE

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 HEX-HD CAP

3шт.

103319

LOCK WASHER,1/4"

3шт.

109084

NUT,1/4"-20, G5

3шт.

4

529951R1

SHIELD

ASSY, GENERATOR

1шт.

5

527687R1

BRACE

GENERATOR

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

95-11034

WASHER,1/4"

11/32 X 11/16 X .051

1шт.

6

527685R1

BRACKET

ASSY, GENERATOR

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.
