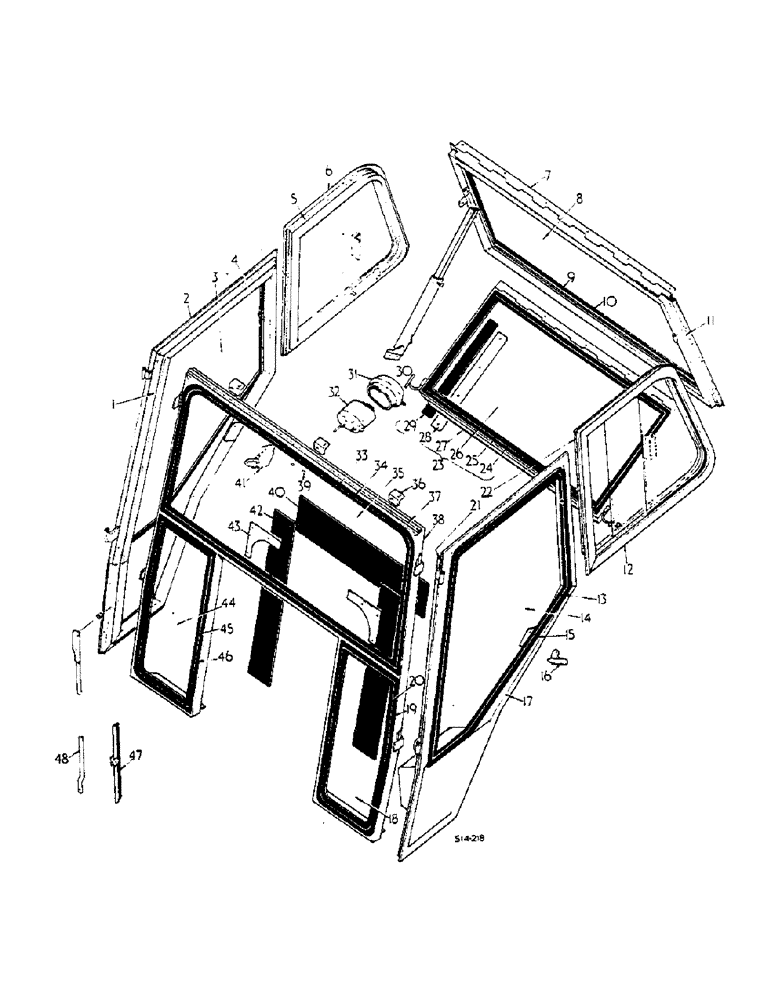

Запчасти Case IH 2500 (13-027) - SAFETY CAB (05) - SUPERSTRUCTURE
№
Артикул
Название
Примечание
Количество
3111990R93
CAB ASSY, CPTE SAFETY W/FRAME 3113258R92 AND ROOF 3113575R91 - ORDER CAB 3113679R91, 574, Serial Range: 10277-101684
1шт.
3111990R93
CAB ASSY, CPTE SAFETY W/FRAME 3113258R92 AND ROOF 3113575R91 - ORDER CAB 3113679R91, 2500, Serial Range: 0602-100016
1шт.
3113679R91
CAB
CAB ASSY, CPTE SAFETY W/FRAME 3113680R91 AND ROOF 3113575R91, 574, Start Serial: 101685
1шт.
3113679R91
CAB
CAB ASSY, CPTE SAFETY W/FRAME 3113680R91 AND ROOF 3113575R91, 2500, Start Serial: 100017
1шт.
3113591R91
KIT, SAFETY CAB CLADDING EXTERNAL - CONSISTS OF REF NOS 1 TO 48 AND ROOF 3113575R91 -
1шт.
3116562R91
KIT SAFETY CAB CLADDING - CONSISTS OF KIT 3113591R91 AND KIT 539449R91 -
1шт.
1
3113568R1
DOOR SEAL
LOWER 13.3 IN
1шт.
1
3113567R1
DOOR SEAL
UPPER 25.3 IN
1шт.
1
3113570R1
SEAL
DOOR FRONT 58.0 IN
1шт.
1
3113569R1
DOOR SEAL
REAR 63.0 IN
1шт.
2
3112449R93
DOOR
CPTE R.H.
1шт.
ON ORDERS FOR 3112448R92 OR 3112449R92 FURNISH R3 W/4 OF BAR 3116641R1, 2 OF SUPPORT 3116642R1, 4 OF NUT 3116643R1 AND 6 OF WASHER 120392
1шт.
3116641R1
BAR
-AS REQD-
1шт.
3116642R1
SUPPORT
2шт.
3116643R1
LOCK NUT
PHILIDAS PLASTIC CAP 1/4 UNC
4шт.
3
3112452R1
GLASS
1шт.
4
3112454R1
MOLDING
SEAL, R.H.
1шт.
3113574R1
STRIP
SPARE PART DOOR BOTTOM 7.5 IN
1шт.
3113573R1
STRIP
DOOR ANGLE 24.7 IN
1шт.
3113572R1
STRIP
DOOR VERTICAL 25.1 IN
1шт.
3113571R1
STRIP
DOOR TOP AND FRONT 61.0 IN
1шт.
5
3113543R1
SEAL
SLIDING WINDOW 67.0 IN
1шт.
5
3113544R1
SEAL
SLIDING WINDOW 26.12 IN
1шт.
6
3113542R1
WINDOW, SLIDING R.H.
1шт.
167047
SELF-TAP SCREW,Cross Pan Hd, #8 - 32 x 1/2"
NO. 8-32 PAN HD CROSS RECESS TAP
4шт.
7
3112493R91
PANEL
CPTE. REAR WINDOW W/GLASS, MOULDING, SEAL AND STRIP
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
6шт.
80681
LOCK WASHER,5/16"
6шт.
120393
BEARING WASHER,5/16", SAE
.344 X .688 X .051 -REAR WINDOW TO FRAME-
6шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
1/4 X 3/4 HEX HD CAP
5шт.
103319
LOCK WASHER,1/4"
5шт.
8
3112495R1
GLASS
1шт.
9
3112496R1
SEAL
1шт.
10
3113584R1
STRIP
FILLER TOP AND SIDES
1шт.
10
3113585R1
STRIP
REAR WINDOW BOTTOM
1шт.
11
3112498R1
SEAL, GLASS
REAR WINDOW
2шт.
12
3113541R1
WINDOW
SLIDING L.H.
1шт.
167047
SELF-TAP SCREW,Cross Pan Hd, #8 - 32 x 1/2"
NO. 8-32 PAN HD CROSS RECESS TAP
4шт.
13
3113574R1
STRIP
SPARE PART DOOR BOTTOM 7.5 IN
1шт.
13
3113573R1
STRIP
DOOR ANGLE 24.7 IN
1шт.
13
3113572R1
STRIP
DOOR VERTICAL 25.1 IN
1шт.
13
3113571R1
STRIP
DOOR TOP AND FRONT 61.0 IN
1шт.
14
3112452R1
GLASS
1шт.
15
3112453R1
SEAL, GLASS
SEAL, L.H.
1шт.
16
3113466R91
HANDLE
OUTSIDE DOOR
2шт.
3112459R1
NUT
2BA
4шт.
3112458R1
SCREW
2BA X 5/8 CSK HD
4шт.
120217
LOCK WASHER,#10
4шт.
17
3112448R93
DOOR
CPTE L H -SEE NOTE-
1шт.
3116641R1
BAR
-AS REQD-
1шт.
3116642R1
SUPPORT
2шт.
3116643R1
LOCK NUT
PHILIDAS PLASTIC CAP 1/4 UNC
4шт.
18
3113558R1
GLASS
LOWER
1шт.
19
3113559R1
SEAL
LOWER L.H.
1шт.
20
3113561R1
STRIP
FILLER, LOWER SCREEN OUTSIDE, 36.6 IN AND BOTTOM
1шт.
20
3113562R1
STRIP
FILLER, LOWER SCREEN INSIDE 27.9
1шт.
20
3113563R1
STRIP
SPARE PART FILLER, LOWER SCREEN TOP 10.5
1шт.
21
3113568R1
DOOR SEAL
LOWER 13.3 IN
1шт.
21
3113567R1
DOOR SEAL
UPPER 25.3 IN
1шт.
21
3113570R1
SEAL
DOOR FRONT 58.0 IN
1шт.
21
3113569R1
DOOR SEAL
REAR 63.0 IN
1шт.
22
3113543R1
SEAL
SLIDING WINDOW 67.0 IN
1шт.
22
3113544R1
SEAL
SLIDING WINDOW 26.12 IN
1шт.
23
3112499R1
PANEL, LOWER REAR CPTE
1шт.
24
3112502R1
MOLDING
SEAL
1шт.
25
3113588R1
STRIP
FILLER 16.6 IN
2шт.
25
3113589R1
STRIP
FILLER 32.4 IN
2шт.
26
3112501R1
GLASS
1шт.
27
3112504R1
STRIP
SEAL, BOTTOM LOWER PANEL 34 IN
1шт.
28
3112506R1
STRIP
BAR, ALUMINIUM
2шт.
3112507R1
RIVET
8шт.
29
3112505R1
SHEET, RUBBER
2шт.
30
3112509R91
SUPPORT
ASSY, REAR WINDOW
2шт.
3114070R1
SCREW
5/16 X 1 THUMB
2шт.
86625061
NUT,1/4"-20, GB
2шт.
179795
TILLAGE BLADE
1/4 X 3/4 HEX HD CAP
6шт.
103319
LOCK WASHER,1/4"
6шт.
31
3113075R1
GUARD
HEAD RUBBER
1шт.
32
3113074R91
ELECTRIC MOTOR
CPTE. WINDSCREEN WIPER
1шт.
33
3113556R1
STRIP
FILLER WINDSCREEN TOP AND, 93.4 IN SIDES
1шт.
33
3113557R1
STRIP
FILLER WINDSCREEN BOTTOM 45.4 IN
1шт.
34
3113555R1
SEAL
UPPER
1шт.
35
3113554R1
GLASS
1шт.
36
3113566R1
ANGLE
WINDSCREEN MOUNTING
3шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
6шт.
120393
BEARING WASHER,5/16", SAE
.344 X .688 X .051 PLAIN
6шт.
37
3112425R1
SEAL
WINDSCREEN TOP
1шт.
38
3113545R91
WINDSHIELD
CPTE
1шт.
102635
NUT,3/8"-16, G5
4шт.
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
4шт.
120394
WASHER,3/8", SAE
.406 X .812 X .051 PLAIN
4шт.
103321
LOCK WASHER,3/8"
4шт.
39
3112438R1
GROMMET
RUBBER
2шт.
40
3113564R1
FOAM INSULATION
SHEET, HORIZONTAL
1шт.
41
3112461R91
HANDLE
LOCK, INSIDE DOOR R.H.
1шт.
41
3112460R91
HANDLE
LOCK, INSIDE DOOR L.H.
1шт.
120391
WASHER,#10
SCREW NO. 10-32 X 3/8 TAP
8шт.
42
3113565R1
FOAM INSULATION
SHEET, VERTICAL
2шт.
43
3113552R1
PLATE
FILLER
2шт.
23994R1
SELF-TAP SCREW,Hex Hd, #10 x 5/8"
10-16 X 5/8 HEX SLTD HD TAP
19шт.
120391
WASHER,#10
.219 X .050 X .036 PLAIN
19шт.
44
3113558R1
GLASS
LOWER
1шт.
45
3113561R1
STRIP
FILLER LOWER SCREEN OUTSIDE, 36.6 IN AND BOTTOM
1шт.
45
3113562R1
STRIP
FILLER LOWER SCREEN INSIDE 27.9
1шт.
45
3113563R1
STRIP
SPARE PART FILLER LOWER SCREEN TOP 10.5 IN
1шт.
46
3113560R1
SEAL
LOWER R.H.
1шт.
47
3113077R1
BLADE
WIPER
1шт.
48
3113076R91
ARM
WIPER
1шт.
3112436R91
CABLE
ASSY, WIPER, NOT ILLUSTRATED
1шт.
3112437R92
CABLE
ASSY, WIPER EXTENSION, NOT ILLUSTRATED
1шт.
3112438R1
GROMMET
WIPER ENTRY, NOT ILLUSTRATED
2шт.
3112440R1
CLIP
CABLE ENTRY, NOT ILLUSTRATED
2шт.
1092550R1
PRODUCT GRAPHIC
CAB WARNIG, NOT ILLUSTRATED
1шт.
Выбрано товаров: 118
