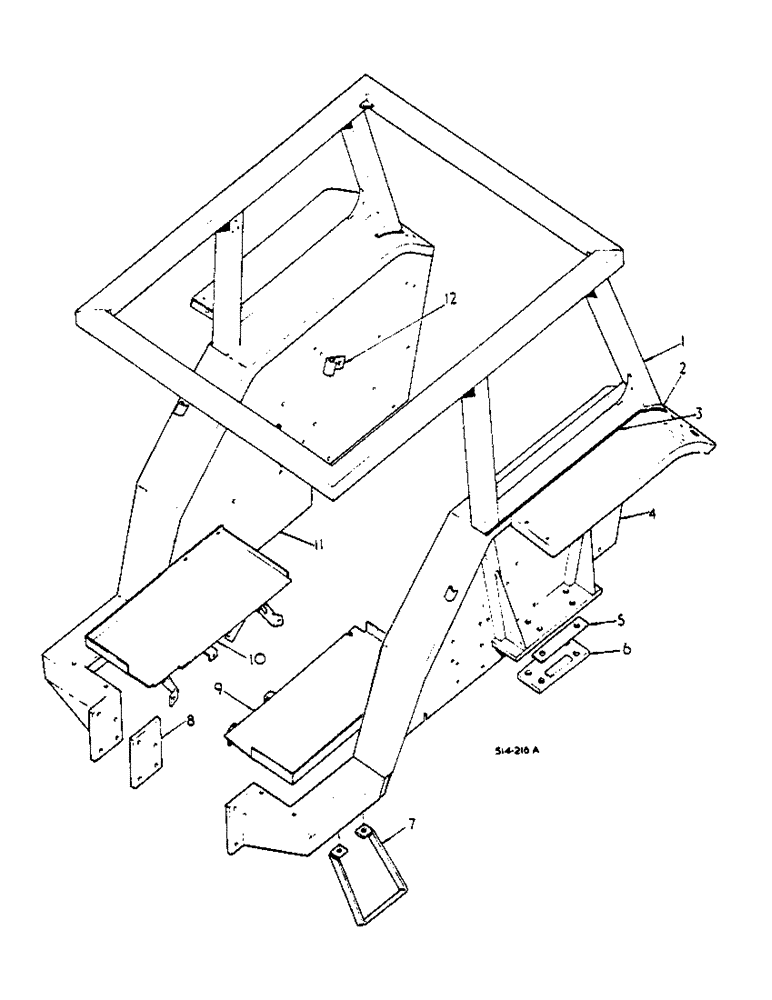

Запчасти Case IH 2500 (13-024) - SAFETY FRAME (05) - SUPERSTRUCTURE

3113198R93

FRAME ASSY, SAFETY W/FRAME 3112382R94 AND TOOLBOX 708194R92, 574, Start Serial: 101685

2шт.

3113198R93

FRAME ASSY, SAFETY W/FRAME 3112382R94 AND TOOLBOX 708194R92, 2500, Start Serial: 100017

2шт.

3113258R92

FRAME ASSY, SAFETY - ORDER FRAME 3113680R9, 574, Serial Range: 10277-101684

1шт.

3113258R92

FRAME ASSY, SAFETY - ORDER FRAME 3113680R91, 2500, Serial Range: 0602-100016

1шт.

3113680R91

FRAME

ASSY, W/FRAME 3112382R94

1шт.

3112382R94

FRAME

ASSY, SAFETY CPTE

1шт.

1

3113531R1

FRAME

TOP, SAFETY FRAME

1шт.

2

3113328R1

INSERT

2шт.

3

3113388R1

SEAL, WING PIPING

2шт.

4

3112389R3

FENDER

ASSY, L.H.

1шт.

5

3112534R1

SHIM

AXLE CARRIER

2шт.

6

3112396R1

PLATE

AXLE CLAMPING CPTE

2шт.

7

3112896R1

STEP

FOOT ASSY R.H.

1шт.

7

3112895R1

STEP

FOOT ASSY L.H.

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

4шт.

8

3112395R1

PLATE

SPARE PART FRONT SPACER

2шт.

9

3112393R1

PLATE

FLOOR CPTE L.H.

1шт.

10

3112394R1

FLOOR CPTE R.H.

1шт.

11

3112390R4

FENDER

ASSY RH

1шт.

12

3113107R2

SOCKET, LOWER REAR PANEL RETAINING

2шт.

109084

NUT,1/4"-20, G5

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4 X 3/4 HEX HD CAP

2шт.

80682

LOCK WASHER,1/4"

2шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

3/4-10 X 2-1/4 HEX HD CAP -LOWER FRAME TO CLUTCH HSG-, NOT ILLUSTRATED

8шт.

17237R1

BOLT,Hex, 7/8"-9 x 6", G5

SCREW 3/4-10 X 7-1/2 HEX HD CAP, NOT ILLUSTRATED

8шт.

425-1012

NUT,3/4"-10, G5

3/4-10 HEX -LOWER FRAME TO AXLE CARRIER-, NOT ILLUSTRATED

8шт.

179812

GEAR

5/16-18 X 1/2 HEX HD CAP, NOT ILLUSTRATED

6шт.

103320

LOCK WASHER,5/16"

Fender to rear top cover, Not illustrated

6шт.

179812

GEAR

5/16-18 X 1/2 HEX HD CAP, NOT ILLUSTRATED

2шт.

103320

LOCK WASHER,5/16"

Fender to trans shift hsg and draft control hsg, Not illustrated

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Not Illustrated

3шт.

103321

LOCK WASHER,3/8"

Fender to park brake bracket, Not Illustrated

3шт.

19284R1

BOLT,Sq Nk, 3/8" - 16

3/8-16 SQ NK CRG, NOT ILLUSTRATED

4шт.

102635

NUT,3/8"-16, G5

Not Illustrated

4шт.

103321

LOCK WASHER,3/8"

Not Illustrated

4шт.

120394

WASHER,3/8", SAE

.406 X .812 X .051 -FENDER TO FLOOR PLATE-, NOT ILLUSTRATED

4шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

Not Illustrated

4шт.

103323

LOCK WASHER,1/2"

Not Illustrated

4шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Not Illustrated

2шт.

103321

LOCK WASHER,3/8"

Floor Plate to Clutch Hsg - Not Illustrated

2шт.

192415

PIPE,Nipple, 1/8" NPT x 3 1/2"

STUD, NO. 4 X 1/4 GROOVE DRIVE -SAFETY FRAME : APPROVAL AND SERIAL NO. PLATE-, NOT ILLUSTRATED

2шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

3/4-10 X 2-1/4 HEX HD CAP, NOT ILLUSTRATED

4шт.

220081

NUT

3/4-10 HEX -TOP FRAME TO FENDER-, NOT ILLUSTRATED

4шт.
