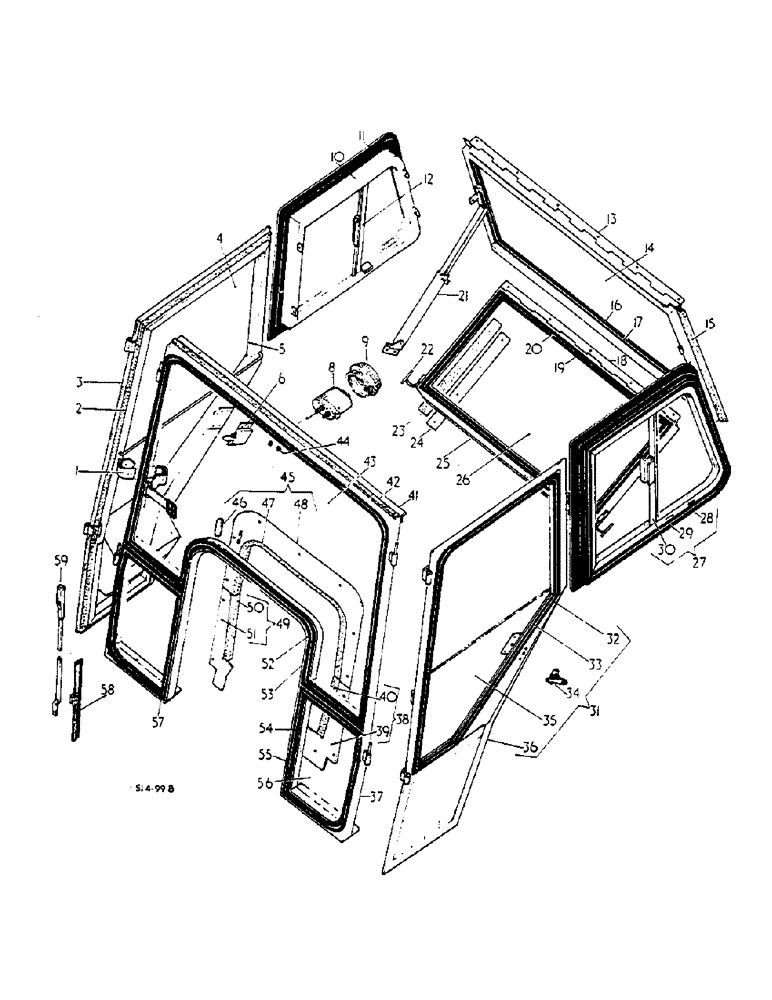

Запчасти Case IH 2500 (13-016) - SAFETY CAB, 574 UP TO S/N 10276, 2500 UP TO S/N 0601 (05) - SUPERSTRUCTURE

3111991R92

CAB, SAFETY -W/SAFETY FRAME 3113258R91- -ORDER CAB 3111990R93-

1шт.

3112449R92

DOOR

ASSY, CPTE RH

1шт.

1

3112464R91

CHAIN (AG)

DOOR CHECK

2шт.

2

3112463R1

SEAL

-ORDER 3112200R1 AND 3112201R1-

2шт.

2

3113200R1

SEAL

DOOR 105 IN

2шт.

2

3113201R1

SEAL

DOOR 60 IN

2шт.

3

3112451R1

FRAME, DOOR RH

1шт.

4

3112452R1

GLASS

1шт.

5

3112454R1

MOLDING

RUBBER RH

1шт.

3112455R1

STRIP

LOCKING

1шт.

6

3112461R91

HANDLE

LOCK, INSIDE DOOR RH

1шт.

6

3112460R91

HANDLE

LOCK, INSIDE DOOR LH

1шт.

3112462R91

SCREW 2BA X V2 RD HD

4шт.

120217

LOCK WASHER,#10

4шт.

7

-NOT USED-

1шт.

8

3113074R91

ELECTRIC MOTOR

WINDSCREEN WIPER, Start Serial: 06655

1шт.

INCLUDING 25000529 AND UP

1шт.

8

3073684R91

WIPER MOTOR

MOTOR, WIPER WINDSCREEN WIPER, Serial Range: -06654

1шт.

INCLUDING UP TO/ 25000528

1шт.

3112439R91

WIPER ASSY, WINDSCREEN

1шт.

ON ORDERS FOR WIPER ASSY 3112439R91 FURNISH MOTOR 3113074R91 COVER 3113075R2 ARM 3113076R91 AND BLADE 3113077R1

1шт.

9

3113075R2

GUARD

COVER, WIPER MOTOR, Start Serial: 06655

1шт.

INCLUDING 25000529 AND UP

1шт.

9

3112443R1

COVER

WIPER MOTOR, Serial Range: -06654

1шт.

INCLUDING UP TO/ 25000528

1шт.

10

3112407R91

PANEL

ASSY, SIDE RH

1шт.

133092

SCREW 5/16 X 5/8 RD-HD SLTD

4шт.

80681

LOCK WASHER,5/16"

4шт.

11

3112411R1

MOLDING

RUBBER RH

1шт.

3112412R1

STRIP

LOCKING

1шт.

12

3112409R1

GLASS

SPARE PART WINDOW, UNIT SLIDING RH

1шт.

13

311493R91

PANEL ASSY, REAR TOP -CONSISTS OF GLASS, MOULDING, SEAL AND STRIP-

1шт.

3112494R1

PANEL

TOP REAR

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

BOLT, HLX HD 5/16 X 5/8 -TOP HINGE-

6шт.

80681

LOCK WASHER,5/16"

6шт.

120393

BEARING WASHER,5/16", SAE

11/32 PLAIN

6шт.

14

3112495R1

GLASS

1шт.

15

3112498R1

SEAL, GLASS

2шт.

16

3112496R1

SEAL

MOULDING, RUBBER

1шт.

17

NSS

NOT SOLD SEPARAT

1шт.

3112499R91

PANEL

ASSY, REAR BOTTOM -CONSISTS OF GLASS, MOULDING, SEALS, STRIPS AND CLIPS-

1шт.

18

3112500R1

PANEL

REAR BOTTOM

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

Bottom Hinge

5шт.

19

3112502R1

MOLDING

RUBBER

1шт.

20

3112503R1

STRIP

LOCKING

1шт.

21

3112509R91

SUPPORT

ASSY, W/THUMB SCREW

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

HEX HD 1/4

2шт.

86625061

NUT,1/4"-20, GB

2шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

RD HD 1/4 X 1/2

4шт.

492-11025

LOCK WASHER,1/4"

4шт.

3114070R1

SCREW

5/16 X 1 THUMB

2шт.

22

NSS

NOT SOLD SEPARAT

1шт.

23

3112505R1

SEAL, FLAP RUBBER

2шт.

24

3112506R1

STRIP

ALUMINIUM

2шт.

3112507R1

RIVET

8шт.

25

3112504R1

STRIP

SEAL

1шт.

26

3112501R1

GLASS

BOTTOM REAR

1шт.

27

3112406R91

PANEL

ASSY, SIDE LH

1шт.

133092

SCREW 5/16-18 X 3/4 HEX-HD CAP

4шт.

80681

LOCK WASHER,5/16"

4шт.

28

3112410R1

MOLDING

RUBBER LH

1шт.

29

3112412R1

STRIP

LOCKING

1шт.

30

3112408R1

GLASS

WINDOW, UNIT SLIDING LH

1шт.

31

3112448R91

DOOR

ASSY, CPTE LH

1шт.

32

3112453R1

SEAL, GLASS

MOULDING, RUBBER LH

1шт.

33

3112455R1

STRIP

LOCKING

1шт.

34

3113466R91

HANDLE

DOOR OUTSIDE LH AND RH

1шт.

3112459R1

NUT

2BA

2шт.

3112458R1

SCREW

2BA X 5/8 C/S HD

2шт.

120217

LOCK WASHER,#10

2шт.

35

3112452R1

GLASS

1шт.

36

3112450R1

DOOR, FRAME LH

1шт.

37

3112444R91

WINDSHIELD

ASSY -ORDER 3113545R91 W/3113564R1 TWO 3113565R1 AND 3112424R1-

1шт.

37

3112415R91

WINDSHIELD

ASSY -ORDER 3113545R91 W/3113564R1 TWO 3113565R1 AND 3112424R1- -CONSISTS OF GLASS, FRAME MOULDINGS, STRIPS, ANGLE, SEAL AND GROMMETS-

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120394

WASHER,3/8", SAE

PLAIN 3/8

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

4шт.

37

3112416R1

FRAME

WINDSCREEN -ORDER 3113545R91 W/3113564R1 TWO 3113565R1 AND 3112424R1-

1шт.

38

3112431R91

PLATE

ASSY, FRONT LH

1шт.

39

3112433R1

PLATE

FRONT LH

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

HEX HD 1/4 X 5/8

2шт.

492-11025

LOCK WASHER,1/4"

2шт.

120392

WASHER,1/4", SAE

9/32 PLAIN

2шт.

40

3112435R1

STRIP

SEALING

1шт.

41

3112424R1

ANGLE

ATTACHING

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

BOLT HEX HD 5/16 X 5/8

7шт.

80681

LOCK WASHER,5/16"

7шт.

120393

BEARING WASHER,5/16", SAE

11/32 PLAIN

7шт.

42

3112425R1

SEAL

TOP

1шт.

43

3112417R1

GLASS

WINDSCREEN

1шт.

44

3112426R1

GROMMET

RUBBER

2шт.

45

3112445R91

PLATE

ASSY, BONNET

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

HEX HD 1/4 X 5/8

7шт.

492-11025

LOCK WASHER,1/4"

7шт.

120392

WASHER,1/4", SAE

9/32 PLAIN

7шт.

46

3112429R1

GROMMET

RUBBER

1шт.

47

3112447R91

SEAL

1шт.

48

PLATE, BONNET -ORDER 3112445R91-

1шт.

49

3112432R91

PLATE

FRONT ASSY RH

7шт.

50

3112435R1

STRIP

SEALING

1шт.

51

3112434R1

PLATE

FRONT RH

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

HEX HD 1/4 X 5/8

2шт.

492-11025

LOCK WASHER,1/4"

2шт.

52

3112419R1

STRIP

LOCKING

1шт.

53

3112418R1

MOLDING

SPARE PART WINDSCREEN

1шт.

54

3112423R1

STRIP

LOCKING

2шт.

55

3112421R1

MOLDING

RUBBER LH

1шт.

56

3112420R1

GLASS

LOWER

2шт.

57

3112422R1

MOLDING

RUBBER RH

1шт.

58

3113077R1

BLADE

WIPER, Start Serial: 06655

1шт.

INCLUDING 25000529 AND UP

1шт.

58

3112442R1

WIPER BLADE

, Serial Range: -06654

1шт.

INCLUDING UP TO/ 25000528

1шт.

59

3113076R1

ARM

WIPER, Start Serial: 06655

1шт.

INCLUDING 25000529 AND UP

1шт.

59

3112441R91

WIPER ARM

, Serial Range: -06654

1шт.

INCLUDING UP TO/ 25000528

1шт.

3113076R91

ARM

DRIVE

1шт.

3114749R1

ARM

IDLER

1шт.

3114750R1

LINK

CONNECTING

1шт.

117957

GROMMET,1/4" ID x 5/8" x .062"

CABLE ENTRY WIPER, NOT ILLUSTRATED, Serial Range: -001325

1шт.

3112436R91

CABLE

CABLE ASSY, WIPER, NOT ILLUSTRATED

1шт.

3112437R92

CABLE

CABLE ASSY, WIPER EXTENSION, NOT ILLUSTRATED

1шт.

3112440R1

CLIP

CLIP, CABLE EDGE, NOT ILLUSTRATED, Start Serial: 001326

1шт.

707458R1

SPARE PART PLUG, WIPER BLANKING, NOT ILLUSTRATED

1шт.

3112438R1

GROMMET

GROMMET, WIPER ENTRY CAB, NOT ILLUSTRATED

1шт.

117957

GROMMET,1/4" ID x 5/8" x .062"

GROMMET, CABLE ENTRY PLOUGH LIGHT, NOT ILLUSTRATED

1шт.

1092550R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, CAB WARNING, NOT ILLUSTRATED

1шт.

1092596R1

DECAL

PRODUCT-GRAPHIC, CAB WARNING, NOT ILLUSTRATED

1шт.

3112668R91

KIT, SAFETY CAB CLADDING -ORDER KIT 3113591R91 -FOR USE W/TRACTORS FITTED W/SAFETY FRAME ONLY, TO BE CONVERTED TO A COMPLETE CAB, NOT ILLUSTRATED

1шт.

CONSISTS OF MAJOR ASSEMBLIES SIDE PANELS WINDSHIELD DOOR LH AND RH ROOF REAR PANELS-

1шт.
