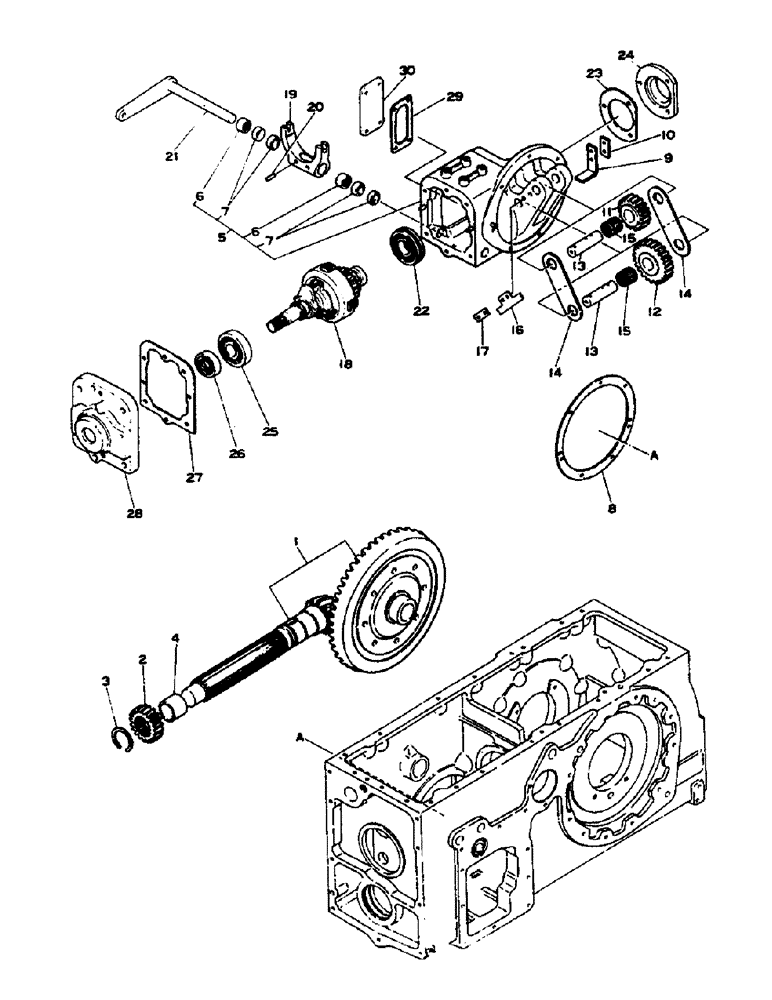

Запчасти Case IH 2500 (07-108) - FRONT DRIVE P.T.O., - 4 WHEEL DRIVE - (04) - Drive Train

1

984505C2

SHAFT

SET, BEVEL GEAR GEAR, BEVEL DRIVE -53T- SHAFT, MAIN -12T-

1шт.

2

1002589C3

GEAR

-20T-

1шт.

3

1014674C1

RING, SNAP

1шт.

4

1002604C1

SPACER

MAIN SHAFT

1шт.

5

1002569C93

HOUSING

ASSY, P.T.O.

1шт.

101896R1

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 8, Full Thd

5шт.

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

6

1002602C1

NEEDLE BEARING,22mm ID x 28mm OD x 12mm

BEARING, NEEDLE

2шт.

7

1002601C1

SEAL

OIL

4шт.

8

984791C1

GASKET

0.016 (0.4mm)

1шт.

8

984106C1

GASKET

0.032 (0.8mm) -OPTIONAL-

1шт.

9

1002610C1

STOP

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW, 5/16-18x3/4

2шт.

10

984169C1

SUPPORT

SCREW LOCK

1шт.

11

1002611C3

GEAR

19T

1шт.

12

1002984C2

GEAR

-27T-

1шт.

13

1002550C1

PIN

IDLER GEAR

2шт.

14

1002633C1

WASHER

THRUST

2шт.

15

1002618C1

NEEDLE BEARING,28mm ID x 40mm OD x 30mm

BEARING, 'NEEDLE

2шт.

16

1002634C1

STOP

IDLER GEAR

1шт.

25955R1

BOLT,Hex, 5/16" - 18 x 5/8", Gr 8

SCREW, 5/16-18x5/8

2шт.

17

984169C1

SUPPORT

SCREW LOCK

1шт.

18

1002619C94

CLUTCH ASSY - FOR COMPONENTS, SEE LISTS OF PARTS UNDER DETAILS OF P.T.O. CLUTCH

1шт.

19

1002597C2

FORK

CLUTCH RELEASE

1шт.

20

617938R1

PIN,5/16" x 1 3/8", Coiled

2шт.

21

1002554C1

SHAFT

ASSY

1шт.

22

ST292

BALL BEARING,35 mm ID x 80 mm OD x 21 mm

BEARING, BALL

1шт.

23

1002620C1

GASKET

1шт.

24

1002892C1

COVER

REAR

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

3шт.

25

ST291

BEARING, BALL,35mm ID x 80mm OD x 21mm W

1шт.

26

984154C1

SEAL

OIL

1шт.

27

1002622C1

GASKET

1шт.

28

1002615C2

COVER

FRONT

1шт.

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

6шт.

29

1002621C1

GASKET

1шт.

30

1002613C1

COVER

SIDE

1шт.

24839R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

4шт.
