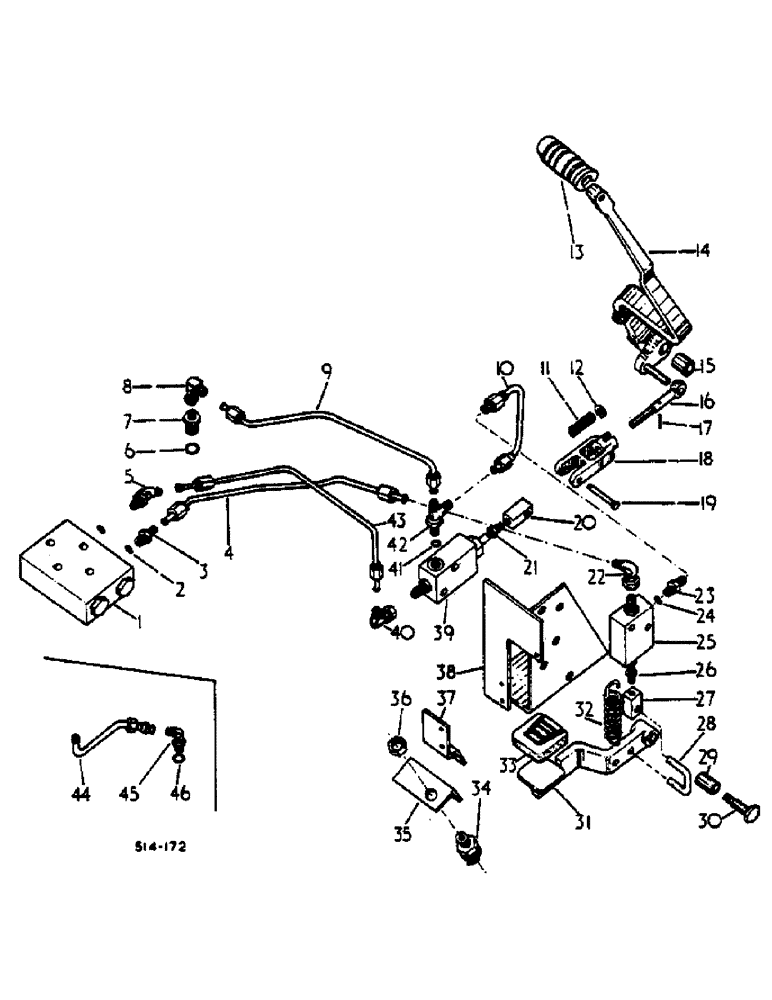

Запчасти Case IH 2500 (07-089) - TUBES AND VALVES, FOOT SPEED CONTROLS (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
535249R91
MANIFOLD ASSY, CHECK VALVE
1шт.
180130
BOLT,Hex, 3/8" - 16 x 2", Gr 5
SCREW 3/8 X 2 HEX HD CAP
2шт.
3
9410200
HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB
7/16-20 C-Z 37 DEG HYD FLARED TUBE
1шт.
4
537924R1
TUBE ASSY.
FOOT-N-INCH PRESSURE
1шт.
5
9411102
ELBOW,45 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring
7/16-20 C-Z 37 DEG HYD FLARED TUBE
1шт.
7
24900R1
HYD CONNECTOR,1/2"-20, 37 Degree x 3/4"-16, O-Ring
1шт.
8
9410279
ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw
1/2-20 C-Z 37 DEG HYD FLARED TUBE
1шт.
9
537927R1
TUBE ASSY.
SPARE PART DECELERATOR VALVE DUMP
1шт.
10
537925R1
TUBE ASSY.
SPARE PART FOOT-N-INCH DUMP
1шт.
11
404290R1
SPRING
DECELERATOR VALVE CLEVIS
1шт.
12
446548
WASHER,0.38" ID x 0.75" OD x 0.05" Thk
3/8 X 3/4 X 16 GA
1шт.
13
528138R1
HANDLE
RANGE SHIFT LEVER
1шт.
14
537941R11
LEVER
ASSY, RANGE SHAFT
1шт.
15
539245R1
BUSHING
RANGE SHIFT LEVER
2шт.
16
537940R1
ROD
SPARE PART DECELERATOR VALVE CLEVIS
1шт.
17
19372R1
PIN,3.17mm OD x 22.23mm L, Coiled
1шт.
18
537939R1
CLEVIS
DECELERATOR VALVE
1шт.
19
22751R1
HEADED PIN,5/16" x 1 5/8"
1шт.
103384
COTTER PIN,1/8" x 3/4"
1шт.
20
398766R1
UNION
BLOCK, DECELERATOR VALVE ADJUSTING
1шт.
21
120368
NUT,5/16"-24, G5
1шт.
22
9410278
ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw
7/16-20 C-Z 37 DEG HYD FLARED TUBE
1шт.
23
9410201
HYD CONNECTOR,1/2"-20, 37 Degree x 1/2"-20, O-Ring
1/2-20 C-Z 37 DEG HYD FLARED TUBE
1шт.
24
369384R1
O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro
5/16 OD tube
1шт.
25
398705R91
VALVE
ASSY, FOOT-N-INCH -FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF FOOT-N-INCH VALVE-
1шт.
41
369384R1
O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro
5/16 OD tube
1шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
180130
BOLT,Hex, 3/8" - 16 x 2", Gr 5
SCREW 3/8-16 X 2 HEX HD CAP
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
2шт.
26
120368
NUT,5/16"-24, G5
1шт.
27
398766R1
UNION
BLOCK, FOOT-N-INCH VALVE ADJUSTING
1шт.
28
534463R1
NO LONGER SERVICED
LINK ASSY, FOOT-N-INCH VALVE PEDAL
1шт.
103384
COTTER PIN,1/8" x 3/4"
1шт.
29
537936R1
BUSHING
SPARE PART
1шт.
30
532965R3
BOLT,3/8" - 16 x 1.7"
FOOT-N-INCH PEDAL PIVOT SHOULDER
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
1шт.
31
537933R91
PEDAL
ASSY, FOOT-N-INCH
1шт.
32
537938R1
SPRING
FOOT-N-INCH PEDAL RETURN
1шт.
33
237672R1
PAD
FOOT-N-INCH PEDAL
1шт.
34
3072122R91
IGNITION SWITCH
ASSY, NEUTRAL STARTING
1шт.
35
539595R1
BRACKET
NEUTRAL STARTING SWITCH
1шт.
36
3112570R1
NUT
NEUTRAL STARTING SWITCH
1шт.
37
539596R1
SUPPORT ASSY.
SPARE PART NEUTRAL STARTING SWITCH
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
4шт.
492-11025
LOCK WASHER,1/4"
4шт.
38
537928R1
BRACKET
ASSY, VALVE MOUNTING
1шт.
186282
BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5
SCREW 3/8-16 X 3-1/4 HEX HD CAP
2шт.
39
404211R91
VALVE
ASSY, DECELERATOR -FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF DECELERATOR VALVE-
1шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
180130
BOLT,Hex, 3/8" - 16 x 2", Gr 5
SCREW 3/8-16 X 2 HEX HD CAP
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
2шт.
40
9410278
ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw
7/16-20 37 DEG HYD FLARED TUBE 90
1шт.
42
9411129
TEE,1/2"-20, 37 Degree x 1/2"-20, O-Ring Run
1/2-20 C-Z 37 DEG HYD FLARED TUBE
1шт.
43
537926R1
TUBE ASSY.
DECELERATOR VALVE PRESSURE
1шт.
44
539461R1
TUBE ASSY.
SPARE PART BRAKE RESERVOIR DUMP
1шт.
45
9411103
ELBOW,45 Degree, 1/2"-20, 37 Degree x 1/2"-20, O-Ring
1/2-20 C-Z 37 DEG HYD FLARED TUBE ADJ STR THD 45 DEG HS DRIVE UNIT HOUSING COVER
1шт.
2
369751R1
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1/4 OD tube
2шт.
