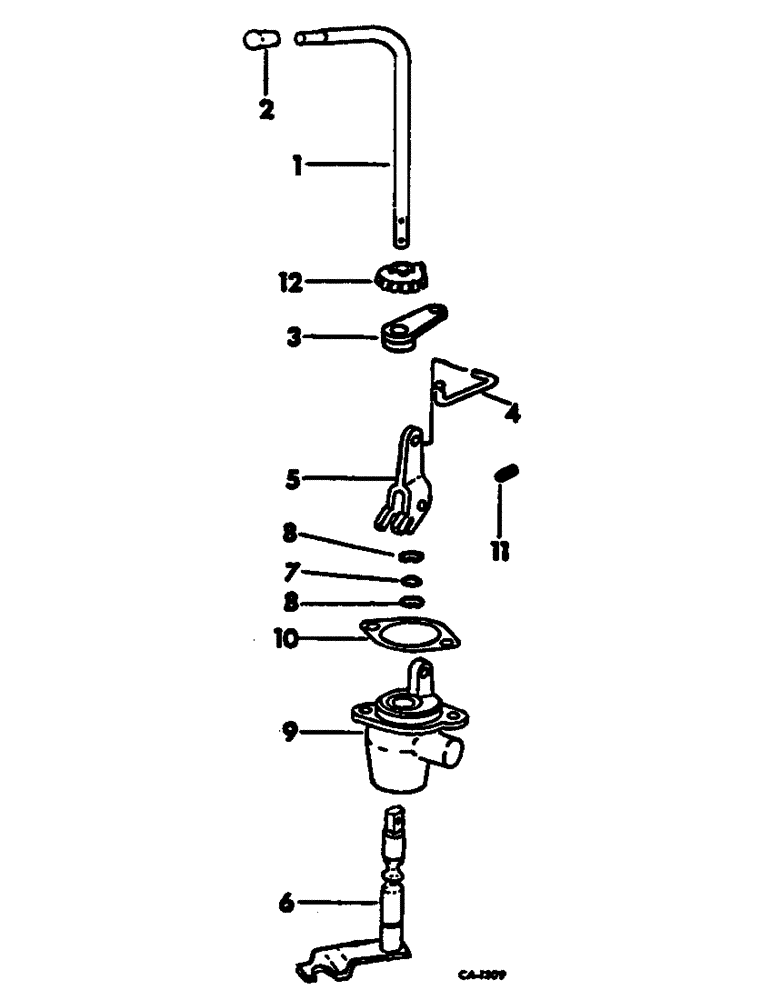

Запчасти Case IH 2500 (07-084) - TORQUE AMPLIFIER LEVER AND CONNECTIONS (04) - Drive Train

1

402583R1

ROD

SPARE PART TA CONTROL HANDLE

1шт.

2

402584R1

BUTTON

KNOB, TA CONTROL HANDLE ROD

1шт.

Q5035

WASHER

1/2 X 1 X 1/16

1шт.

103384

COTTER PIN,1/8" x 3/4"

1/8 X 1

1шт.

3

402585R1

ARM

TA CONTROL

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

4

402588R1

ROD

TA CONTROL

1шт.

95-11028

WASHER,1/4"

9/32 X 5/8 X .051

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

5

402589R1

LEVER ASSY.

TA CONTROL

1шт.

22731D

SPLIT PIN/SAFETY PIN

1/4 X 29/32 ROD END

1шт.

16558R1

WASHER

17/64 X 5/8 X .036

1шт.

107761

COTTER PIN,1/16" x 5/8"

1шт.

6

531553R1

LEVER ASSY.

TA CONTROL

1шт.

20702R1

DOWEL,3/16" x 3/4"

PIN 3/16 X 3/4

1шт.

7

370920R1

O-RING,1/2" ID

1/2 X 5/8 X 1/16

1шт.

8

309032R1

SNAP RING,#62, Ext

TA control shaft #62, Ext

2шт.

9

402595R2

SUPPORT

TA CONTROL SHAFT

1шт.

10

401623R1

GASKET

TA CONTROL SHAFT SUPPORT

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

2шт.

11

402596R1

SPRING

TA CONTROL

1шт.

17014R1

BALL

7/16 CR-STL

1шт.

12

528290R1

GUIDE RING

COLLAR, TA CONTROL HANDLE

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

8-32 X 3/8 HEX-SOC-HD-F-PT SET

1шт.
