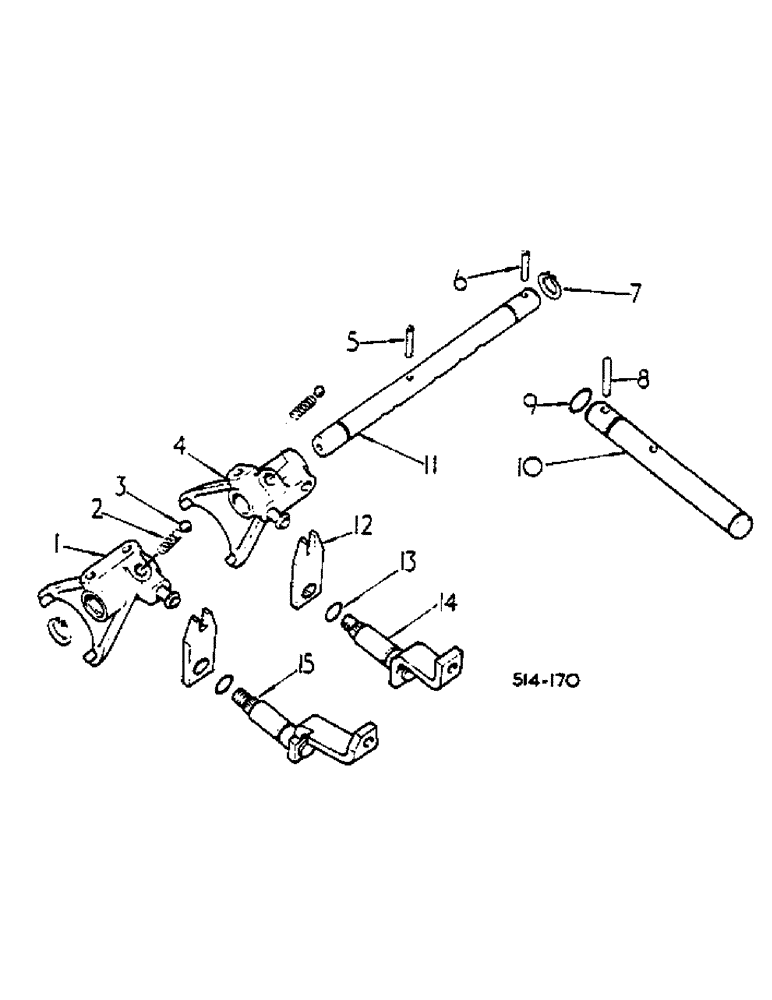

Запчасти Case IH 2500 (07-067) - GEAR SHIFT MECHANISM, RANGE TRANSMISSION (04) - Drive Train

1

538911R4

FORK

FRONT

1шт.

1

537470R1

NO LONGER SERVICED

FORK, FRONT

1шт.

ON ORDERS FOR 537470R1 FURNISH 538911R3 TOGETHER W/ARM 405164R2 AND TWO WASHER Q3501

1шт.

1

402146R1

SPARE PART -SYNCHROMESH DRIVE TRACTORS-

1шт.

ON ORDERS FOR 402146R1 USED AS FRONT FORK OR 402149R1 FURNISH 538911R3 TOGETHER W/ARM 405164R2, TWO WASHER Q3501, RAIL 537473R1 AND PIN 20122R1

1шт.

2

534053R1

SPRING

POPPET BALL -1 USED FOR HYDROSTATIC DRIVE TRACTORS-

2шт.

3

17013R1

BALL,13/32" Dia

Optional w/16013R1

2шт.

3

16013R1

BALL

13/32 CR-STL -OPTIONAL W/17013R1- -1 USED FOR HYDROSTATIC DRIVE TRACTORS-

2шт.

4

538912R4

FORK

REAR

1шт.

4

537472R1

NO LONGER SERVICED

FORK, REAR

1шт.

ON ORDER 537472R1 FURNISH 538912R3 TOGETHER W/ARM 405167R2 AND TWO WASHER Q3501

1шт.

4

402146R1

SPARE PART SYNCHROMESH DRIVE TRACTORS-

1шт.

ON ORDERS FOR 537470R1 FURNISH 538911R3 TOGETHER W/ARM 405164R2 AND TWO WASHER Q3501

1шт.

4

538913R4

FORK

1шт.

4

402148R1

EXCITER

FORK

1шт.

ON ORDERS FOR 402146R1 USED AS RANGE SHIFT FORK OR 402148R1 FURNISH 538913R3 TOGETHER W/ARM 405167R2 AND TWO WASHER Q3501.

1шт.

4

402146R1

SPARE PART -HYDROSTATIC DRIVE TRACTORS- -USE ON SYNCHROMESH W/FORWARD AND REVERSE-

1шт.

ON ORDERS FOR 402146R1 USED AS FRONT FORK OR 402149R1 FURNISH 538911R3 TOGETHER W/ARM 405164R2, TWO WASHER Q3501, RAIL 537473R1 AND PIN 20122R1

1шт.

5

20122R1

PIN,1/4" x 1 1/2", Coiled

1шт.

6

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

7

661652R1

SNAP RING,#75, Ext

Shift fork rail

3шт.

7

661652R1

SNAP RING,#75, Ext

Shift fork rail, Hydrostatic drive tractors

2шт.

8

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

1шт.

9

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 X 7/8 X 3/32

1шт.

10

402152R1

SHAFT

RANGE TRANS. SHIFT LEVER IDLER -SYNCHROMESH DRIVE TRACTOR-

1шт.

10

527853R1

SHAFT

HYDROSTATIC RANGE SHIFT LEVER -HYDROSTATIC DRIVE TRACTORS- -USE ON SYNCHROMESH W/FORWARD AND REVERSE-

1шт.

11

537473R1

RAIL ASSY.

RANGE SHIFT FORK

1шт.

11

402149R1

RAIL ASSY.

RANGE SHIFT FORK -SYNCHROMESH DRIVE TRACTORS

1шт.

ON ORDERS FOR 537470R1 FURNISH 538911R3 TOGETHER W/ARM 405164R2 AND TWO WASHER Q3501

1шт.

11

402150R1

RAIL

RANGE SHIFT FORK -HYDROSTATIC DRIVE TRACTORS- -USE ON SYNCHROMESH W/FORWARD AND REVERSE-

1шт.

12

405169R2

ARM

RANGE SHIFT INNER -1 USED FOR HYDROSTATIC DRIVE TRACTORS-

2шт.

19605R1

LOCK NUT,1/2"-13, GB

1/2-13 NYLON INSERT -1 USED FOR HYDROSTATIC DRIVE TRACTORS-

2шт.

13

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 X 3/4 X 3/32 -1 USED FOR HYDROSTATIC DRIVE TRACTORS-

2шт.

14

405167R2

ARM

ASSY, RANGE SHIFT OUTER REAR

1шт.

Q3501

WASHER

25/32 X 1-1/4 X .060

2шт.

15

405164R2

ARM

ASSY, RANGE SHIFT OUTER FRONT -SYNCHROMESH DRIVE TRACTORS-

1шт.

Q3501

WASHER

25/32 X 1-1/4 X .060

2шт.
