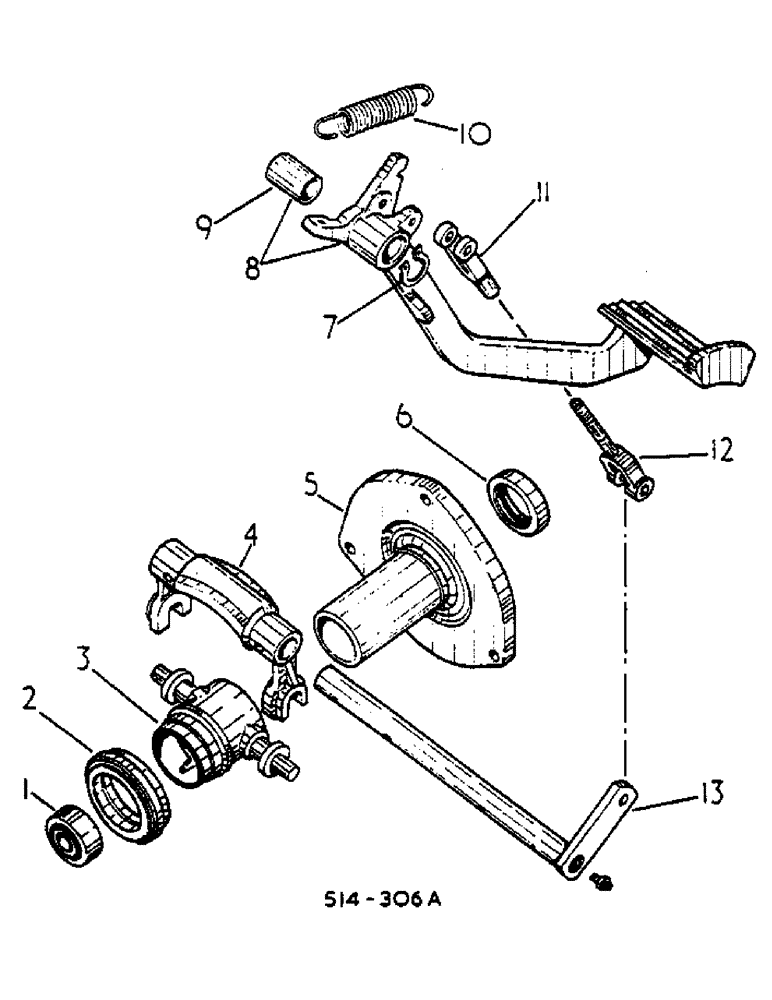

Запчасти Case IH 2500 (07-061) - CLUTCH CONTROLS (04) - Drive Train

1

537290R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

Clutch pilot

1шт.

1

69844C91

BEARING, BALL,20mm ID x 47mm OD x 14mm W

CLUTCH PILOT

1шт.

1

538961R91

BEARING ASSY,19.995 mm ID x 46.995 mm OD x 13.94 mm

CLUTCH PILOT -OPTIONAL-

1шт.

2

59879D

BALL BEARING,60.33mm ID x 88.9mm OD x 18.67mm W

CLUTCH RELEASE BALL

1шт.

2

365866R91

THRUST BEARING

CLUTCH RELEASE BALL

1шт.

2

365865R91

BEARING ASSY,3.812" ID x 2.26" OD x 0.807"

CLUTCH RELEASE BALL

1шт.

2

528098R92

BALL BEARING,2.46" ID x 3.5" OD x 0.783"

CLUTCH RELEASE BALL -OPTIONAL, 574, Serial Range: -103326

1шт.

2

528098R92

BALL BEARING,2.46" ID x 3.5" OD x 0.783"

CLUTCH RELEASE BALL -OPTIONAL, 2500, Serial Range: -100044

1шт.

2

158125C91

THRUST BEARING

CLUTCH RELEASE, 574, Start Serial: 103327

1шт.

2

158125C91

THRUST BEARING

CLUTCH RELEASE, 2500, Start Serial: 100045

1шт.

3

360501R2

SLEEVE CYLINDER

CLUTCH RELEASE, 574, Serial Range: -103326

1шт.

3

360501R2

SLEEVE CYLINDER

CLUTCH RELEASE, 2500, Serial Range: -100044

1шт.

3

105445C1

BUSHING

SLEEVE, CLUTCH RELEASE, 574, Start Serial: 103327

1шт.

3

105445C1

BUSHING

SLEEVE, CLUTCH RELEASE, 2500, Start Serial: 100045

1шт.

4

398342R1

FORK

CLUTCH RELEASE

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

2шт.

5

398236R1

CARRIER

CLUTCH RELEASE SLEEVE

1шт.

179842

SPACER

3/8 X 1-3/8 HEX HD PLAIN

3шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065)

3шт.

6

376930R91

OIL SEAL,39.24mm ID x 57.35mm OD x 8mm Thk

RELEASE SLEEVE, CARRIER OIL

1шт.

7

454331R1

SNAP RING,#87, Ext

Clutch pedal

1шт.

8

530805R2

PEDAL

ASSY, CLUTCH W/BUSHING

1шт.

23183R1

WASHER

29/32 X 1-3/8 X .054

1шт.

9

539246R1

BUSHING

1шт.

10

399743R1

SPRING

CLUTCH PEDAL RETURN

1шт.

138675

SCREW,Hex, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HEX-HD DV-PT SET

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

11

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

3/8-24 X 2-1/2 LIGHT ADJ ROD END

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

3/8 X 1-3/32 ROD END

2шт.

107762

WASHER,3/32" x 5/8"

2шт.

12

401475R2

ROD

ASSY, CLUTCH OPERATING

1шт.

13

398237R1

SHAFT

ASSY, CLUTCH RELEASE

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

PTF, used w/clutch release sleeve, not illustrated, Serial Range: 007258-103326

1шт.

3618

BUSHING

FITTING, 5/16-32 NEF STR LUB - USED W/CLUTCH RELEASE SLEEVE - , NOT ILLUSTRATED, Serial Range: -07257

1шт.

365720R1

PIPE

CLUTCH RELEASE SLEEVE GREASE -UP TO/07257-, NOT ILLUSTRATED

1шт.
