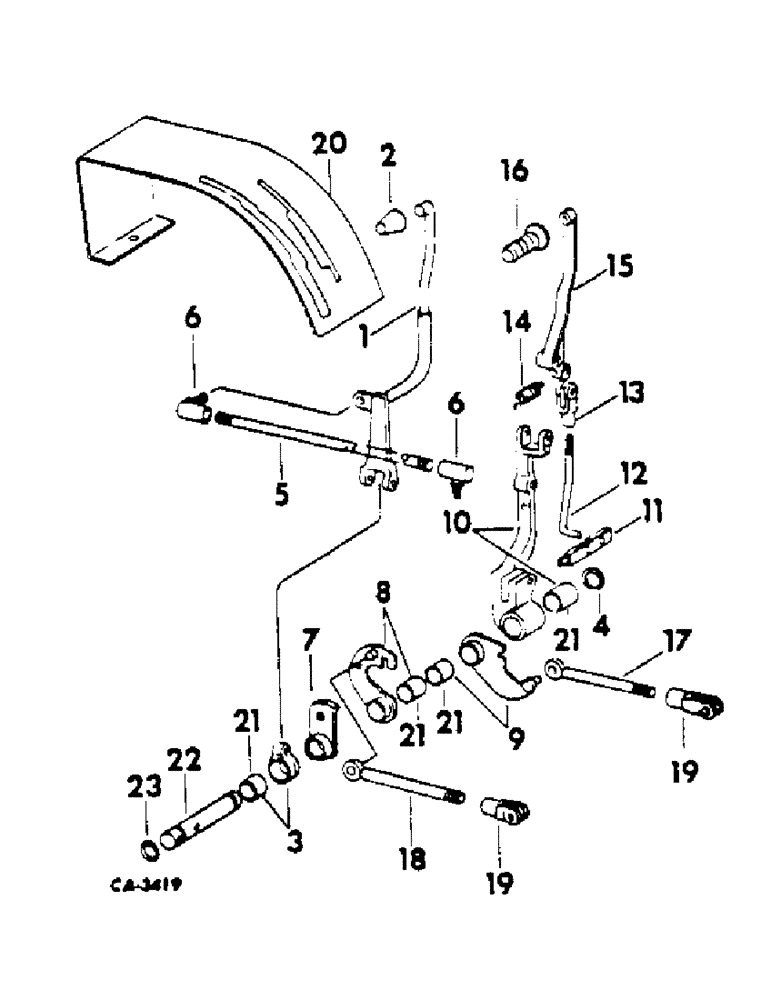

Запчасти Case IH 2400 (07-35) - DRIVE TRAIN, TRANSMISSION CONTROLS, SYNCHROMESH TRANSMISSION TRACTORS (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
528120R1
LEVER
speed shift
1шт.
2
379022R2
KNOB
speed shift lever
1шт.
3
530932R1
HUB ASSY.
HUB ASSY, transmission shift hand lever
1шт.
615192R1
WASHER
29/32 x 1-1/4 x .0299
1шт.
366281R1
PIN,3/8" x 2", Coiled
1шт.
4
454331R1
SNAP RING,#87, Ext
Shift lever #87, Ext
1шт.
5
528122R1
ROD
speed shift lever
1шт.
6
392594R1
END ASSY.
JOINT, 3/8-24 x 1-11/32 ball
2шт.
114494
NUT,Jam, 3/8"-24, G5
3шт.
7
528123R1
PIVOT ASSY.
GATE ASSY, range shift
1шт.
617940R1
PIN,5/16" x 1 3/4", Coiled
1шт.
8
528126R2
LEVER ASSY.
LEVER ASSY, idler shaft inner
1шт.
Q3641
WASHER
13/32 x 3/4 x .020
1шт.
107761
COTTER PIN,1/16" x 5/8"
Pin, Split (Cotter), 1/16" x 5/8"
1шт.
9
528129R1
LEVER ASSY.
LEVER ASSY, idler shaft outer
1шт.
Q3641
WASHER
13/32 x 3/4 x .020
1шт.
107761
COTTER PIN,1/16" x 5/8"
Pin, Split (Cotter), 1/16" x 5/8"
1шт.
10
530933R1
LEVER
W/TWO BUSHINGS, range shift
1шт.
22963R1
HEADED PIN,5/16" x 2 1/4"
PIN, 5/16 x 2-1/4 std-hd
2шт.
95-11034
WASHER,1/4"
11/32 x 11/16 x .051
2шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
2шт.
11
528134R1
LATCH
range shift lever
1шт.
12
528135R1
ROD
range shift lever
1шт.
95-11034
WASHER,1/4"
11/32 x 11/16 x .051
2шт.
107762
WASHER,3/32" x 5/8"
PIN, SPLIT, (COTTER), 3/32" x 5/8"
2шт.
13
104037
CLEVIS
5/16-24 x 2-1/4 rod end, optional w/161002C1
1шт.
13
161002C1
NO LONGER SERVICED
CLEVIS, 5/16-24 x 2-1/4 rod end, optional w/104037
1шт.
39374D
CLEVIS PIN,5/16" x 1 1/16"
PIN, 5/16 x 1-1/16 rod end
1шт.
14
528136R1
SPRING
shift lever return
1шт.
15
528137R1
LEVER
range shift upper
1шт.
16
528138R1
HANDLE
range shift upper lever
1шт.
426372
HEX SOC SCREW,3/8" - 16 x 2 3/4"
SCREW, 3/8-16 x 2-3/4 zn soc-hd cap
1шт.
17
528139R1
ROD ASSY.
ROD ASSY, range shift front
1шт.
124925
JAM NUT,Jam, 3/8"-24, G5
1шт.
18
528141R1
ROD ASSY.
ROD ASSY, range shift rear
1шт.
124925
JAM NUT,Jam, 3/8"-24, G5
1шт.
19
213-316
ADJUSTABLE CLEVIS,3/8" - 24
CLEVIS, 3/8-24 x 2-3/16 short adj rod end, optional w/161003C1
2шт.
19
161003C1
NO LONGER SERVICED
CLEVIS, 3/8-24 x 2-1/4 rod end, optional w/116536
2шт.
865197R1
CLEVIS PIN,3/8" x 1.218"
PIN, 3/8 x 1-7/32 rod end
1шт.
Q3641
WASHER
13/32 x 3/4 x .024
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
20
528782R92
HOUSING
ASSY, transmission shift pattern
1шт.
21
539245R1
BUSHING
shift lever and hub
5шт.
22
402152R1
SHAFT
range trans. shift lever idler
1шт.
617940R1
PIN,5/16" x 1 3/4", Coiled
1шт.
23
350667R1
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
11/16 x 7/8 x 3/32
1шт.
Выбрано товаров: 46
