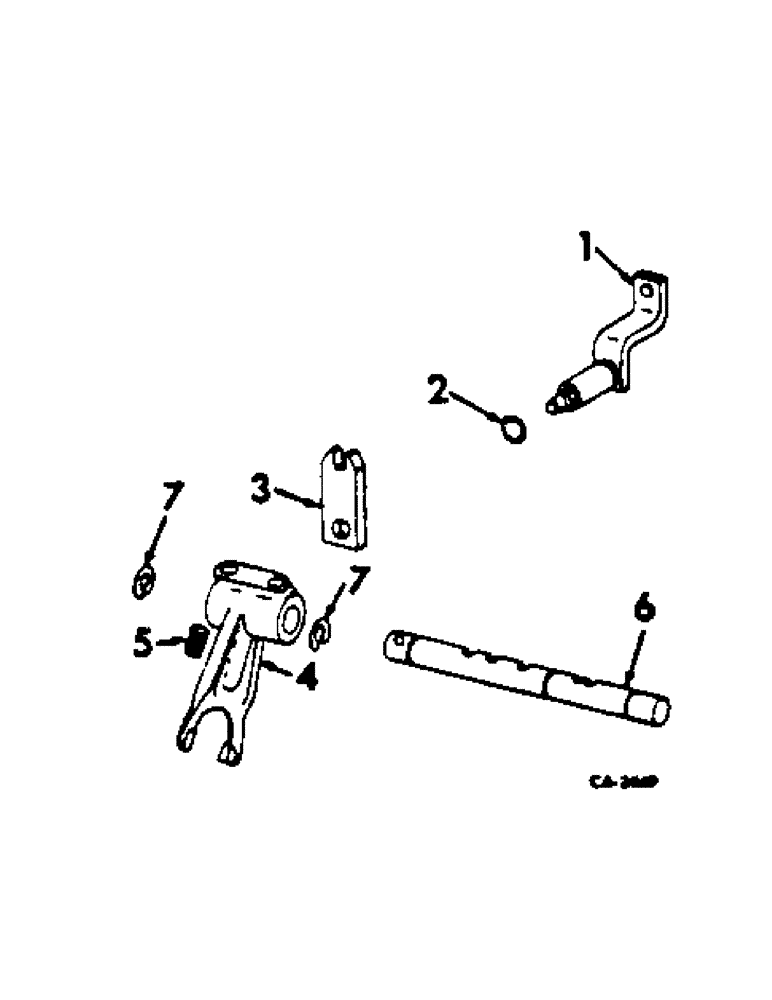

Запчасти Case IH 2400 (07-34) - DRIVE TRAIN, GEAR SHIFT MECHANISM, RANGE TRANSMISSION WITH FORWARD AND REVERSE (04) - Drive Train

1

405167R2

ARM

ASSY, range shift outer rear

1шт.

2

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32

1шт.

3

405169R2

ARM

range shift inner

1шт.

19605R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 nylon insert

2шт.

4

402146R1

FORK ASSY, range shift, for service replacement on tractors w/skidded unit no. 19039 and below furnish rear fork 538913R3 and 2 washer Q3501

1шт.

4

402148R91

NO LONGER SERVICED

FORK ASSY, range shift, for service replacement on tractors w/skidded unit no. 19040 and above, furnish rear fork 538913R3 and 2 washer Q3501

1шт.

4

538913R3

SHIFTER FORK

FORK ASSY, range shift

1шт.

Q3501

WASHER

25/32 x 1-1/4 x .060

2шт.

5

534053R1

SPRING

poppet ball

1шт.

17013R1

BALL,13/32" Dia

2шт.

6

402150R1

RAIL

range shift fork

1шт.

20122R1

PIN,1/4" x 1 1/2", Coiled

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

7

661652R1

SNAP RING,#75, Ext

Shift fork rail #75, Ext

2шт.
