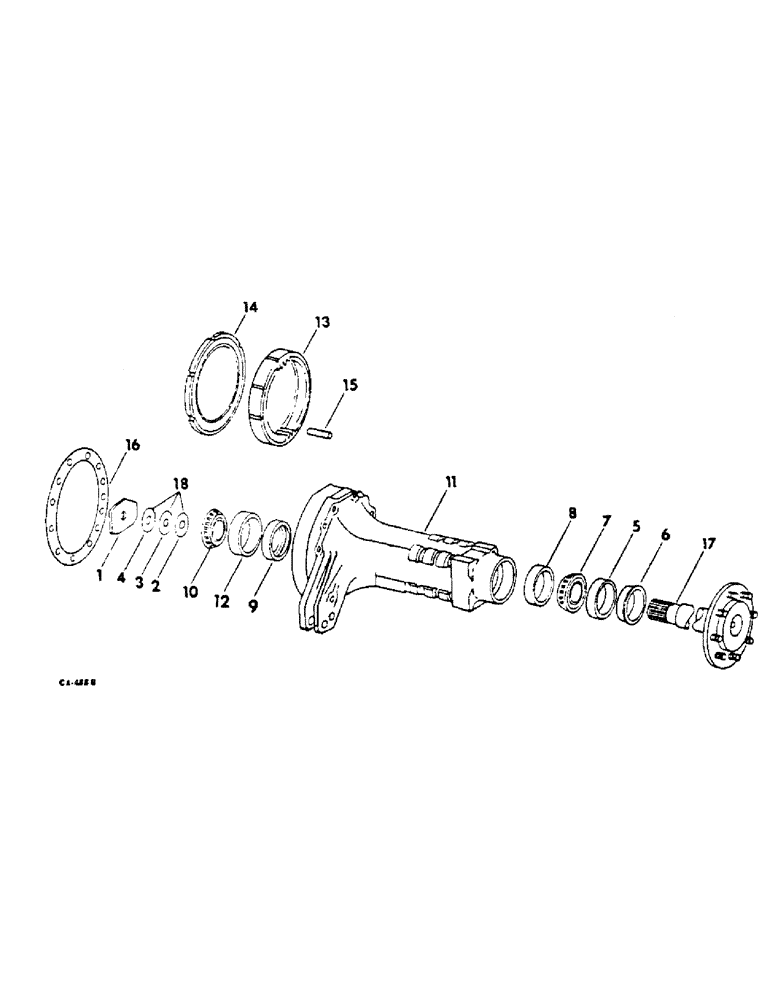

Запчасти Case IH 2400 (07-30) - DRIVE TRAIN, REAR AXLE, CARRIER AND CONNECTIONS (04) - Drive Train

1

399748R1

SPACER

planet carrier ret

2шт.

20668R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

SCREW, 5/8-18 x 1-1/2 hex-hd cap

2шт.

2

SHIM, rear axle retainer .007, order package 65422C1

1шт.

3

SHIM, rear axle retainer .012, order package 65422C1

1шт.

4

SHIM, rear axle retainer .0299, order package 65422C1

1шт.

5

105470C1

OIL SEAL

SEAL, rear axle outer oil, replaces 399752R91

2шт.

6

399754R1

SLEEVE

wear

2шт.

7

ST2001A

BEARING ASSY,2.688" ID x 4.3317" OD x 0.88"

rear axle outer cone

2шт.

8

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

rear axle outer cup

2шт.

9

380200R92

OIL SEAL

rear axle inner oil

2шт.

10

298197R91

BEARING ASSY,63.5 mm ID x 21.996 mm

ASSY, rear axle inner cone

2шт.

11

399758R1

AXLE CARRIER

CARRIER, rear axle LH

1шт.

11

399761R1

AXLE CARRIER

CARRIER, rear axle RH

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 4 hex-hd cap

22шт.

12

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

rear axle inner cup

2шт.

13

535316R1

GEAR, RING

66T, will work for 399759R1

2шт.

14

399760R1

RING

brake outer disc

2шт.

15

529685R1

DOWEL

PIN, 3/8 x 2-1/4 dowel

6шт.

16

399762R1

GASKET

rear axle carrier

2шт.

17

404340R13

SPARE PART

AXLE WITH BOLTS, rear

2шт.

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT, rear wheel

16шт.

3047575R2

NUT,Wheel, 5/8"-18

rear wheel

16шт.

18

65422C1

SHIM KIT

PACKAGE, rear axle shim, consists of (3) shim .007 399749R1 (NSS), (3) shim .012 399750R1 (NSS), (2) shim .299 399751R1 (NSS)

1шт.
