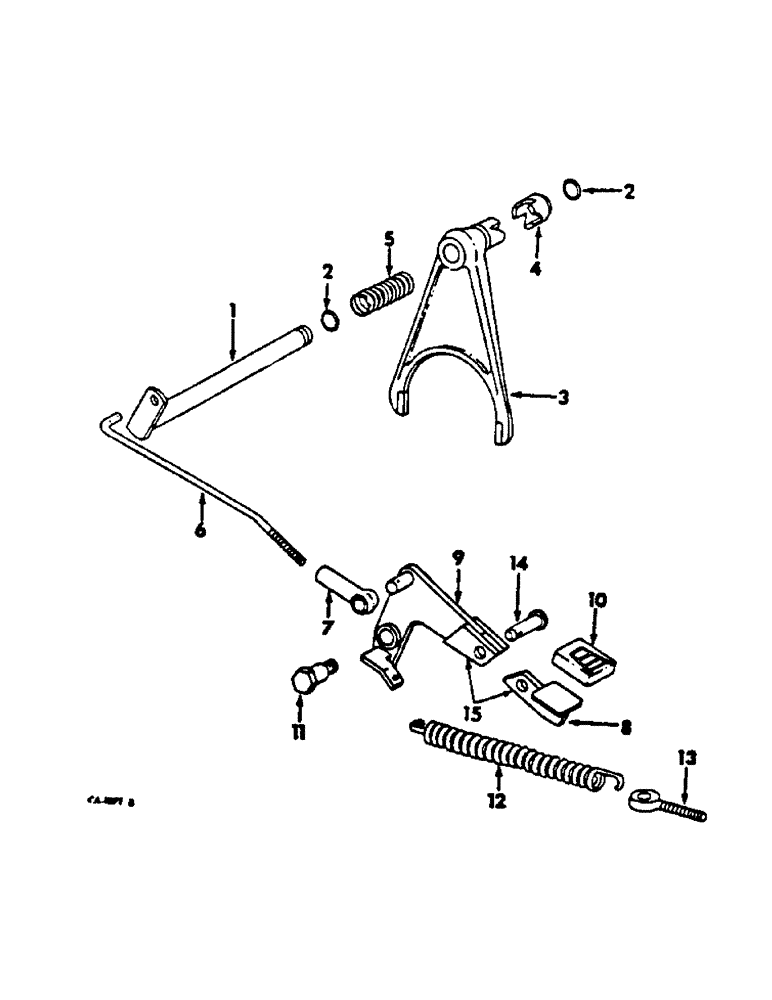

Запчасти Case IH 2400 (07-28) - DRIVE TRAIN, DIFFERENTIAL LOCK (04) - Drive Train

1

527871R1

SHAFT ASSY.

SHAFT ASSY, diff lock

1шт.

2

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32

2шт.

3

527874R3

FORK

ASSY, diff lock shaft

1шт.

4

527877R1

CAM

diff lock shaft

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

5

527878R1

SPRING

diff lock fork acutating

1шт.

6

527879R1

ROD

diff lock pedal

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

Q1597

WASHER

13/32 x 3/4 x 1/16

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

7

527880R1

END

diff lock pedal connecting rod

1шт.

8

LEVER ASSY, diff lock pedal front, order pedal 66441C1

1шт.

9

LEVER ASSY, diff lock pedal rear, order pedal 66441C1

1шт.

10

237672R1

PAD

diff lock pedal, used with lever ref no. 8

1шт.

11

527885R1

BOLT

BOLT, diff lock pedal pivot

1шт.

12

527886R1

VALVE SPRING

SPRING, diff lock pedal return

1шт.

13

530046R1

BOLT

pedal return spring eye

1шт.

551658R1

WASHER

25/32 x 1-1/4 x 22 ga

1шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

2шт.

102635

NUT,3/8"-16, G5

2шт.

14

16809R1

PIN, 1/2 x 1-5/16 rod end, used with lever assy. ref nos. 8 and 9

1шт.

15

66441C1

PEDAL

differential lock, one piece

1шт.

11002VA

WASHER

17/32 x 7/8 x 1/16

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

109084

NUT,1/4"-20, G5

1шт.
