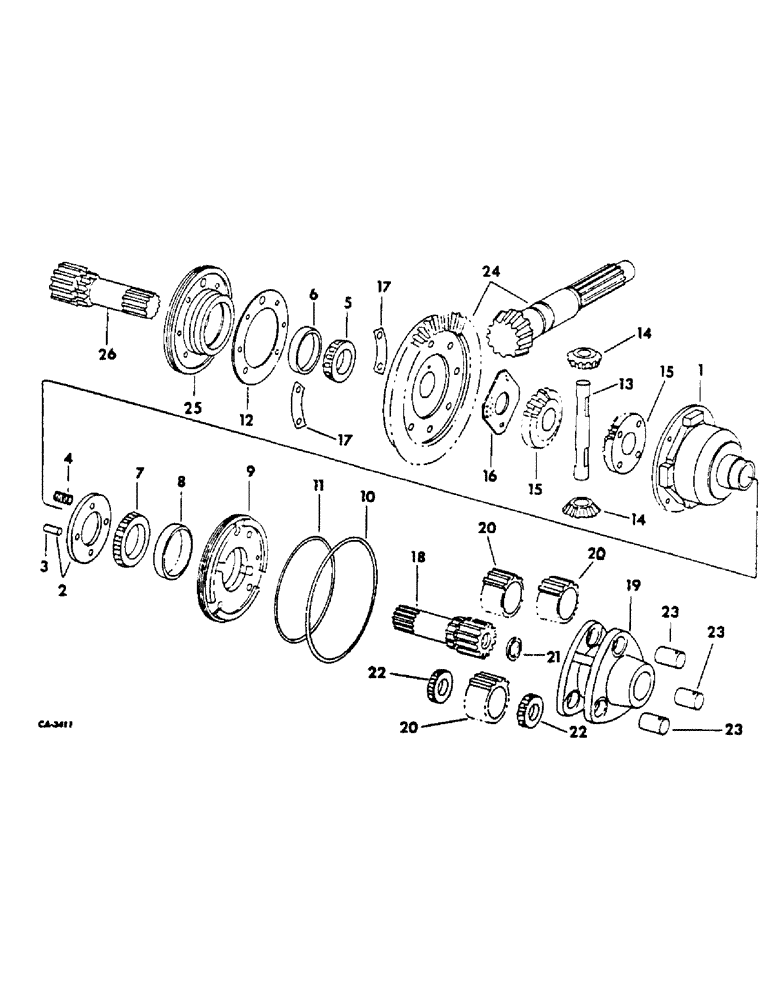

Запчасти Case IH 2400 (07-26) - DRIVE TRAIN, DIFFERENTIAL AND CONNECTIONS (04) - Drive Train

1

399763R1

PINION CARRIER

CARRIER, differential

1шт.

2

399764R11

LOCKING RING

RING ASSY, differential lock

1шт.

3

399765R1

PIN

coupling

4шт.

4

400867R1

SPRING

differential lock

2шт.

5

105503H

ROLLER BEARING,57.15mm ID x 24.61mm W

BEARING ASSY, differential LH cone

1шт.

6

105496H

BEARING CUP,97.63mm OD x 19.45mm W

BEARING, differential LH cup

1шт.

7

52843V

BEARING ASSY,57.15mm ID x 22.05mm W

BEARING ASSY, differential cone RH

1шт.

8

105497H

BEARING CUP,96.85mm OD x 15.77mm W

BEARING, differential cup RH

1шт.

9

399770R1

BEARING CARRIER

CARRIER, differential brg RH

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

10

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

8-1/4 x 8-1/2 x 1/8, differential brg carrier

2шт.

11

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

7-1/2 x 7-7/8 x 3/16, differential brg carrier seal

2шт.

12

65419C1

BEARING CARRIER

PACKAGE, differential brg carrier shim, consists of (3) shim 399771R1 (NSS), (3) shim 399772R1 (NSS), (3) shim 399773R1 (NSS), (2) shim 399774R1 (NSS)

2шт.

13

399775R1

SHAFT

differential pinion

1шт.

14

399776R1

PINION

GEAR, differential pinion 10 T

2шт.

15

404336R1

PINION

GEAR, differential bevel, 20 T

2шт.

16

399778R1

THRUST WASHER

differential bevel gear thrust

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

SCREW, 1/2-13 x 1-1/2 hex-hd cap

7шт.

399779R2

BOLT,Hex, 1/2" - 13 x 2.12", Gr 8

BOLT, 1/2-13 x 2-1/8 dowel

1шт.

17

399780R1

SUPPORT, bevel gear screws lock, on orders for support 399780R1, furnish 7 screw 340340R1 and one bolt 399779R2

4шт.

18

404338R1

SHAFT

planetary drive RH

1шт.

19

114612C1

CARRIER

planet gear, replaces 404339R2

2шт.

20

399784R2

PINION

GEAR, planet 25T

6шт.

21

65420C1

SHIM KIT

PACKAGE, planet gear shim, consists of (3) shim 406816R1 (NSS), (3) shim 406817R1 (NSS), (3) shim 406818R1 (NSS)

1шт.

22

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, planet gear cone

12шт.

23

399788R1

PIN

planet shaft

6шт.

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.

24

529650R1

GEAR-SET

BEVEL GEARS, matched set, synchromesh transmission tractors w/skidded unit no. 33721 and below and hydrostatic drive tractors w/skidded unit no. 38994 and below, consists of (1) gear 399453R1 (NSS), (1) shaft 399460R1 (NSS)

1шт.

24

65255C1

GEAR SET

BEVEL GEARS, matched set, synchromesh transmission tractors w/skidded unit no. 33722 and above and hydrostatic drive tractors w/skidded unit no. 38995 and above, consists of (1) gear 399453R1 (NSS), (1) shaft 65256C1 (NSS)

1шт.

25

399769R1

BEARING CARRIER

CARRIER, differential brg LH

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

26

404337R1

SHAFT

planetary drive LH

1шт.
