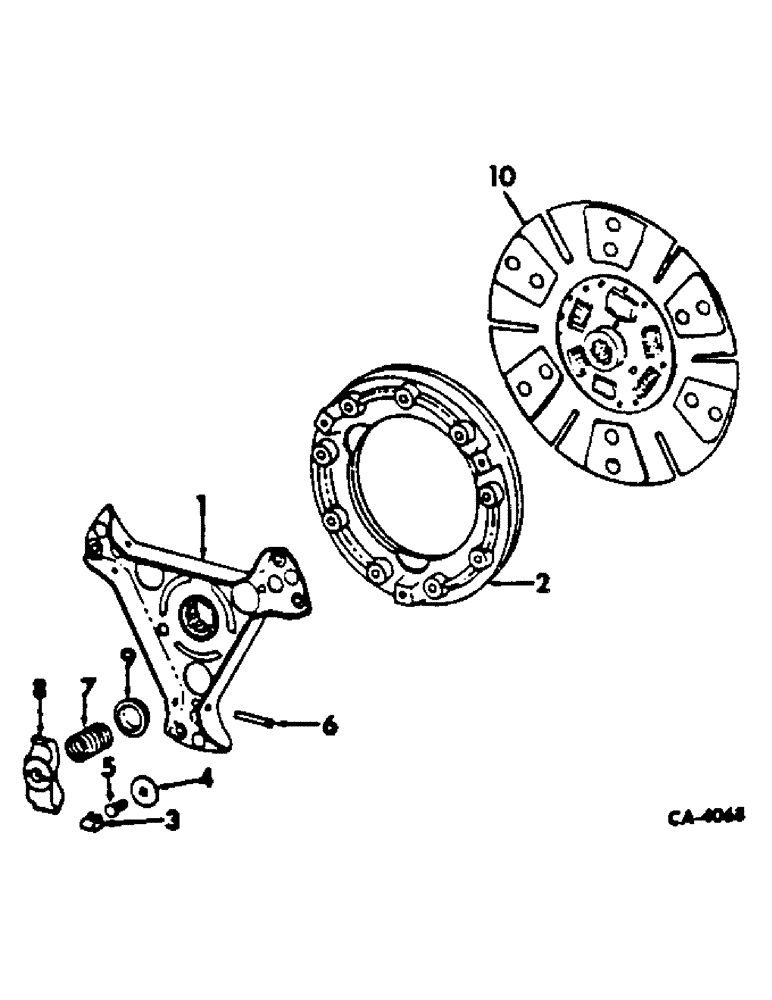

Запчасти Case IH 2400 (07-15) - DRIVE TRAIN, CLUTCH (04) - Drive Train

70716C1

COVER ASSY

COVER ASSY, clutch pressure plate, replaces 68211C91, 68212C91, 401477R91 and 529566R91, consists of ref nos 1 thru 9

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SCREW 5/16-18 x 3/4 hex-hd cap

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

1

BRACKET, pressure plate, see note

1шт.

2

PLATE, pressure, see note

1шт.

3

CLIP, return, see note

3шт.

4

WASHER, see note

3шт.

5

SCREW, adjusting, see note

3шт.

*

NUT, 5/16-24 hex. jam

3шт.

6

PIN, pivot, see note

3шт.

7

SPRING, pressure, see note

3шт.

8

LEVER, see note

3шт.

9

CUP, spring, see note

3шт.

10

401479R93

DRIVEN PLATE

PLATE ASSY, clutch driven disc, for 454 and 2400A tractors with synchromesh transmission

1шт.

10

401479R93R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 11 in., 10Tooth hub, 3 paddle

1шт.

10

401479R93C

CORE-CLUTCH DISC

Return Part Number

1шт.

10

92602C92R

REMAN-CLUTCH PLATE,Pressure Plate Only

Remanufactured, Clutch Plate, 11 in, 10 Tooth Hub

1шт.

10

92602C92C

CORE-CLUTCH PLATE

Return Part Number

1шт.

10

293248A1R

REMAN-CLUTCH DISC

Remanufactured, 11 in., 10Tooth hub, full round disc, 6 button or 3 paddle 6 button

1шт.

10

293248A1C

CORE-CLUTCH DISC

Return Part Number

1шт.

10

70093C91

PLATE

PLATE ASSY, clutch driven disc, replaces 530402R3, for 2400A tractors with forward and reverse transmission

1шт.
