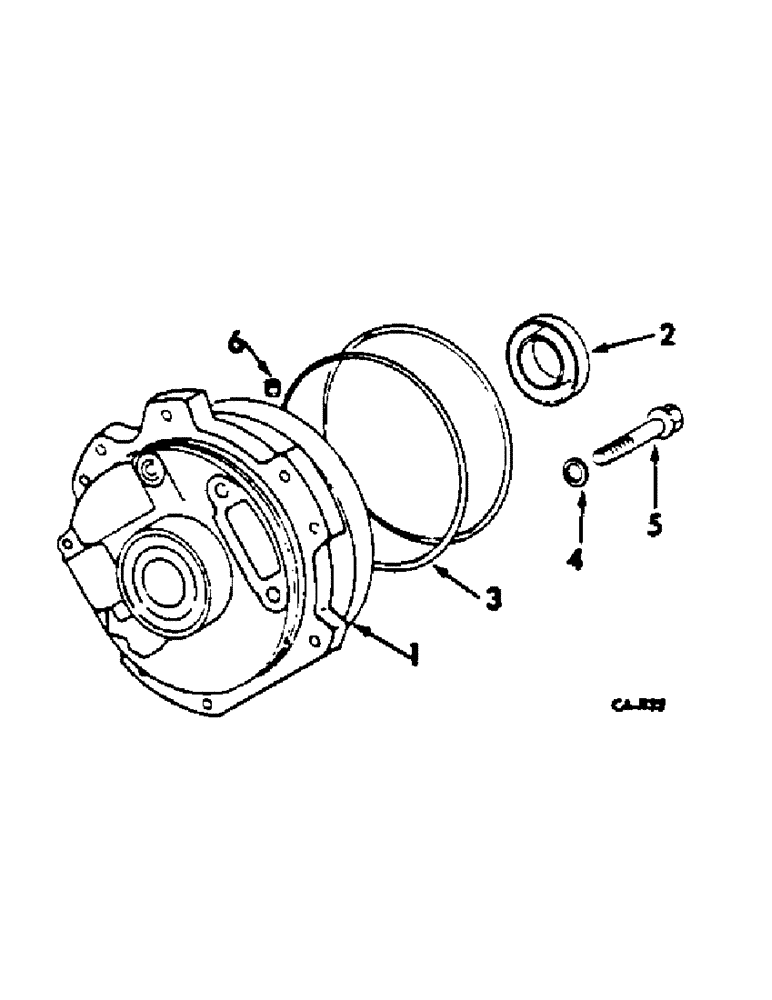

Запчасти Case IH 2400 (07-13) - DRIVE TRAIN, HYDROSTATIC CHARGE PUMP (04) - Drive Train

1

66454C91

PUMP, HYDRAULIC

PUMP ASSY, charge, consists of ref nos 2 thru 6 and slipper pin package

1шт.

1

401020R91

PUMP

ASSY, charge, consists of ref nos 2 thru 6 and slipper pin package

1шт.

2

405743R91

OIL SEAL

oil

1шт.

3

405172R1

RING

rectangular seal

2шт.

4

397439R1

WASHER

2шт.

5

397440R1

12 PT SCREW,Flg, 3/8" - 16 x 1.88", Gr 5

SCREW, hex-washer-hd

2шт.

6

397433R1

SPRING

slipper

8шт.

537786R1

KIT

PACKAGE, slipper pin, consists of 8 std-pins

1шт.
