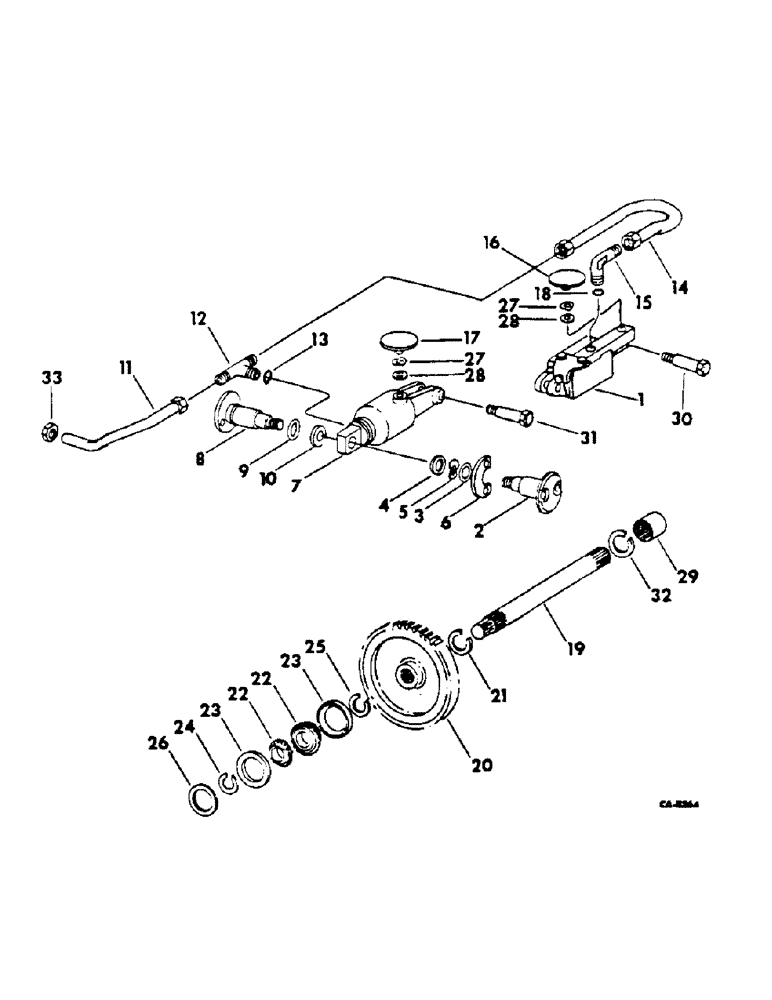

Запчасти Case IH 2400 (07-08) - DRIVE TRAIN, HYDROSTATIC DRIVE GEAR, PTO SHAFT AND SERVO CYLINDER (04) - Drive Train

1

CYLINDER ASSY, pump servo, for components, see list of parts under details of pump servo cylinder

1шт.

2

401035R1

TRUNNION

pump servo

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

3

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32

1шт.

4

401041R1

WASHER

pump servo trunnion

1шт.

5

401040R1

SPRING WASHER

spring

1шт.

6

401036R91

SHIM KIT

PACKAGE, pump servo trunnion shim, consists of (3) shim .005 401037R1 (NSS), (3) shim .007 401038R1 (NSS), (1) shim .020 401039R1 (NSS)

1шт.

7

CYLINDER ASSY, motor servo, for components, see list of parts under details of motor servo cylinder

1шт.

8

401043R1

TRUNNION

motor servo

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

9

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1-1/16 x 1-1/4 x 3/32

1шт.

10

401044R1

WASHER

motor servo trunnion

1шт.

11

401045R11

TUBE ASSY.

TUBE WITH SLEEVE, motor servo supply

1шт.

134630H1

SLEEVE

5/16 OD tube

1шт.

12

401046R1

TEE

adj flex 5/16 tube motor servo

1шт.

14

401047R11

TUBE ASSY.

TUBE WITH TWO SLEEVES, pump servo

1шт.

134630H1

SLEEVE

5/16 OD tube

2шт.

15

401048R1

ELBOW

adj flex 5/16 tube pump servo

1шт.

16

401049R92

PLUG

ORIFICE, pump cylinder control w/ring, includes ref nos 27 and 28, tractors with hand controls

1шт.

17

530027R92

PLUG

ORIFICE, motor cylinder control w/ring, includes ref nos 27 and 28, 1 used on tractors with hand controls, 2 used on tractors with foot controls

1шт.

19

536749R1

SHAFT

IPTO front driven, for service replacement of 404222R1, also furnish snap ring 533266R1

1шт.

20

404223R1

GEAR

48T

1шт.

21

399837R1

SNAP RING,#118, 1.121", Ext

RING, gear retaining

1шт.

22

463911R91

ROLLER BEARING,1" ID x 0.58"

BEARING ASSY, cone

2шт.

23

572564R1

BEARING CUP

BEARING, cup

2шт.

24

631530R1

RING, SNAP

RING, brg retaining, shaft

1шт.

25

463910R1

RING, SNAP

RING, brg retaining, housing

1шт.

26

401060R1

SPACER

bearing, .146

1шт.

26

401061R1

SPACER

bearing, .151

1шт.

26

401062R1

SPACER

bearing, .156

1шт.

26

401063R1

SPACER

bearing, .161

1шт.

26

401064R1

SPACER

bearing, .166

1шт.

26

401065R1

SPACER

bearing, .171

1шт.

26

401066R1

SPACER

bearing, .176

1шт.

26

401067R1

SPACER

bearing, .181

1шт.

26

401068R1

SPACER

bearing, .186

1шт.

27

403989R1

SPRING WASHER

spring

2шт.

28

396109R1

RING

2шт.

29

533325R91

BEARING, NEEDLE

BUSHING, IPTO driven shaft needle

1шт.

30

396119R1

BOLT,Shldr, Hex, 1/2" - 13 x 2.38"

hex-hd shoulder

1шт.

425-1110

NUT,5/8"-18, G5

1шт.

31

396119R1

BOLT,Shldr, Hex, 1/2" - 13 x 2.38"

hex-hd shoulder

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

1шт.

32

533266R1

RING, SNAP

RING, IPTO front driven shaft

1шт.

33

222-503

TUBE NUT,1/2"-20

NUT, 1/2-20 hi-duty fitting

1шт.

13

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube, Motor servo tee

1шт.

18

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, Pump servo

1шт.
