Запчасти Case IH 2400 (15-05) - WHEELS AND TRACTION, FRONT WHEEL WEIGHTS Wheels & Traction

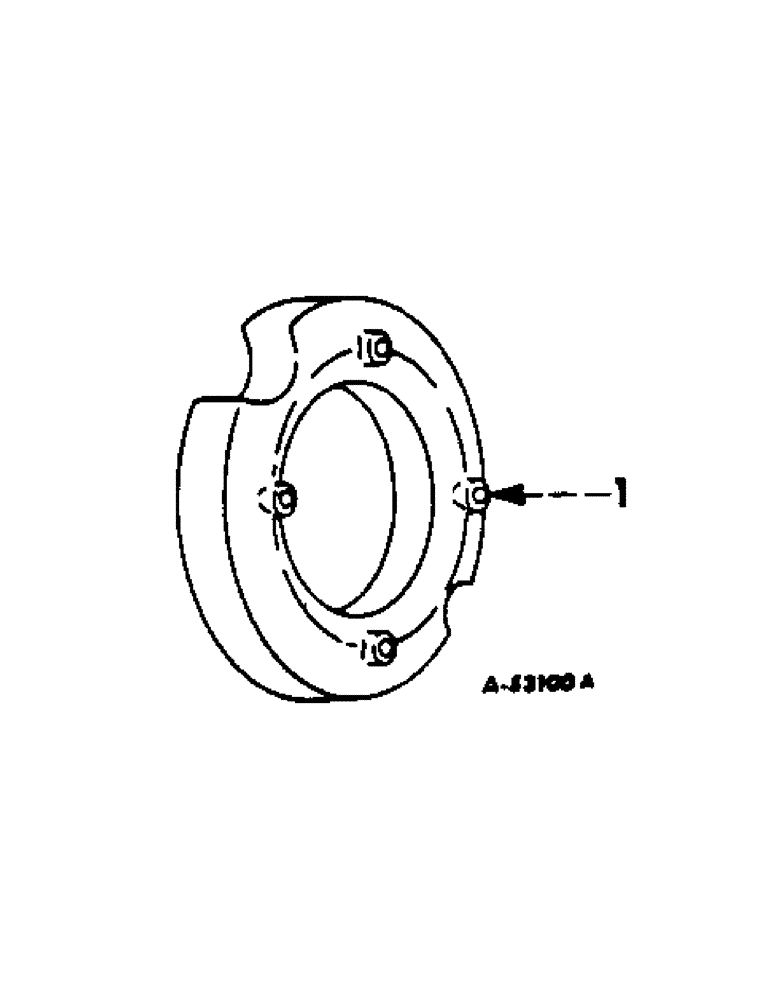

Схема запчастей Case IH 2400 - (15-05) - WHEELS AND TRACTION, FRONT WHEEL WEIGHTS Wheels & Traction
1

Артикул

Название

Примечание

Количество

1

370685R1

WEIGHT

front wheel, approx 50 lbs, first position

2шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 C-Z hex-hd cap

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

1

370685R1

WEIGHT

front wheel, approx 50 lbs, second position

2шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 C-Z hex-hd cap

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

Выбрано товаров: 6
