Запчасти Case IH 2400 (15-04[1]) - WHEELS AND TRACTION, REAR WHEEL HUB SPACER, 2400 SERIES A LO-BOY TRACTORS Wheels & Traction

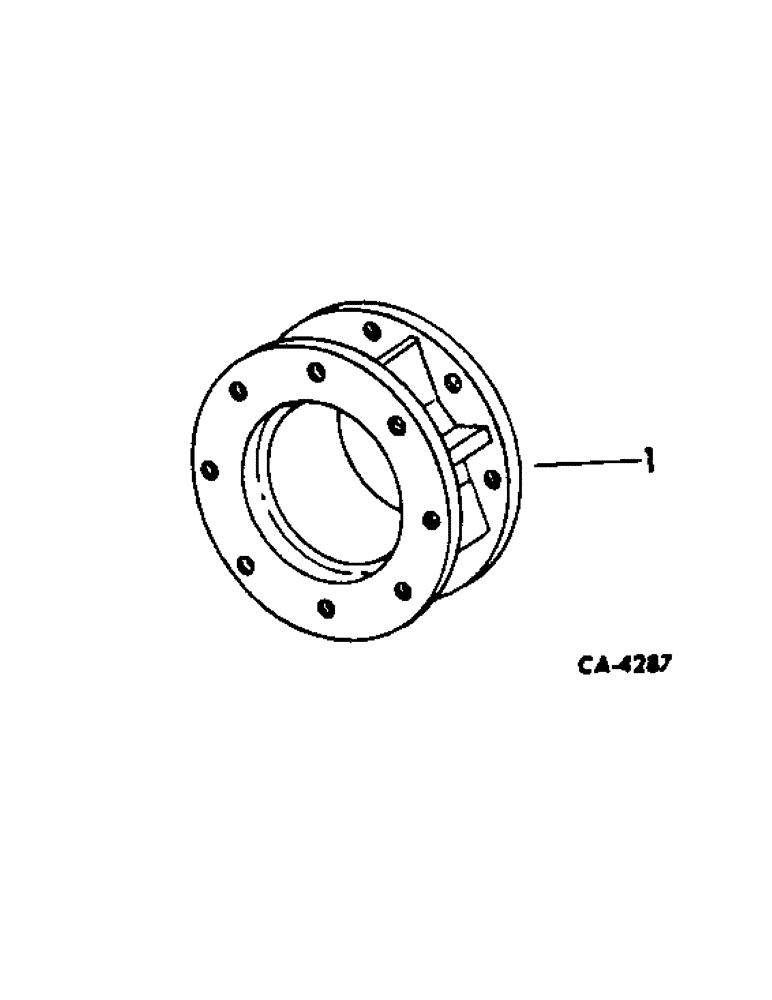

Схема запчастей Case IH 2400 - (15-04[1]) - WHEELS AND TRACTION, REAR WHEEL HUB SPACER, 2400 SERIES A LO-BOY TRACTORS Wheels & Traction
1

Артикул

Название

Примечание

Количество

1

66341C1

SPACER, rear wheel hub

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 znd hex-hd cap type 8

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

21434R1

NUT,5/8"-11, G8

5/8-11 znd hex. type 8

16шт.

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT, rear wheel hub

16шт.

Выбрано товаров: 5
